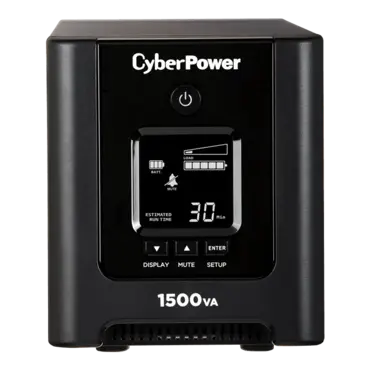

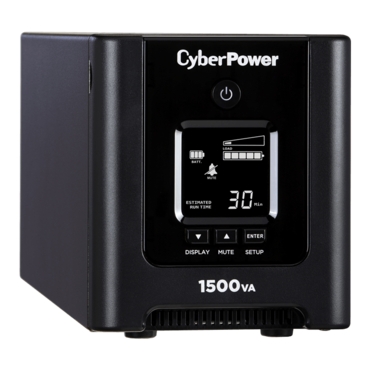

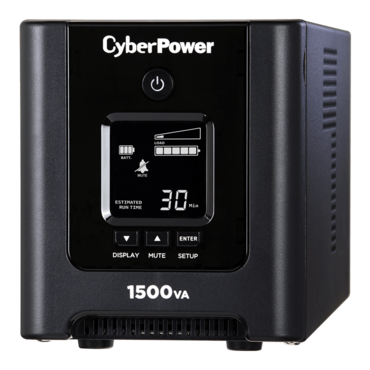

PFC Sinewave OR1500PFCLCD, LCD, 1500 VA/1050 W, Sine Wave, Tower UPS
- SKU: 9633446
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OR1500PFCLCD
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$455.95
- Capacity: 1500VA / 1050W
- Topology: Line Interactive
- Waveform: Sine Wave

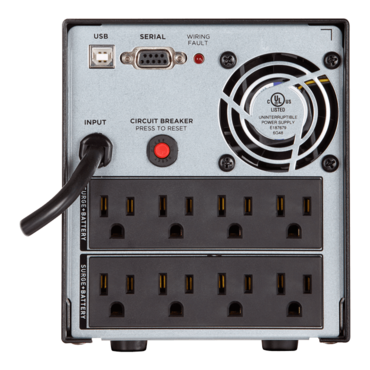

- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 8 x NEMA 5-15R
- Communication: USB, Serial
- Management software: PowerPanel Business Edition
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| Input | |
| Voltage | 120 VAC |
| Input Voltage Range | 78 VAC – 142 VAC |
| Frequency | 50/60 Hz +/- 3 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Straight |
| Cord Length | 6 ft |
| Output | |
| VA | 1500 |
| Watts | 1050 |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Output Power Factor | 0.7 |
| Automatic Voltage Regulation (AVR) | Boost +18% / Buck -18% |
| Outlet Type | NEMA 5-15R |
| Outlets – Total | 8 |
| Outlets – Battery & Surge Protected | 8 |
| Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
| Typical Transfer Time | 4 ms |
| Battery | |
| Runtime at Half Load | 12.5 minutes |
| Runtime at Full Load | 4 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9Ah |
| User Replaceable | Yes |
| Hot-Swappable | Yes |
| Replacement Battery | TBD |
| Battery Quantity | 2 |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 Joules |
| EMI/RFI Filteration | Yes |
| Management & Communications | |
| Multifunction LCD Panel | Yes |
| LED Indicators | Power On |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Cable Included | USB cable |
| Management Cable | USB Cable, Serial Cable |
| Audible Alarms |
On Battery
Low Battery Overload Fault |
| Software | PowerPanel® Business Edition |
| Physical | |
| Form Factor | Mini-Tower |
| Dimensions – W×H×D (in) | 5.4× 6.4× 13.8 |
| Weight (lbs) | 25.0 |
| Shipping Weight (lbs) | 27.3 |
| Shipping Dimensions – W×H×D (mm) | 10.4 x 12.2 x 18.8 |
| Environmental | |
| Operating Temperature | 32°F – 104°F (0°C – 40°C) |
| Operating Humidity | 0% – 90% (non-condensing) |
| Storage Temperature | 5°F – 113°F (-15°C – 45 °C) |
| Maximum Storage Elevation | 9,843 ft (3,000 m) |
| Maximum Operating Elevation | 50,000 ft (15,000 m) |
| Certifications | |
| Safety |
UL1778 4th
cUL 107.3-05 FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
