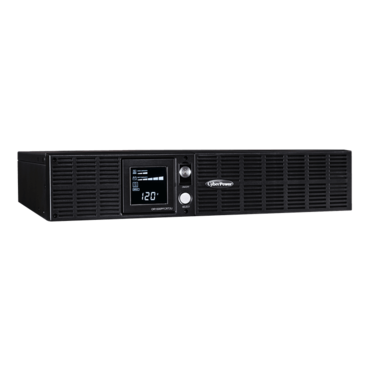

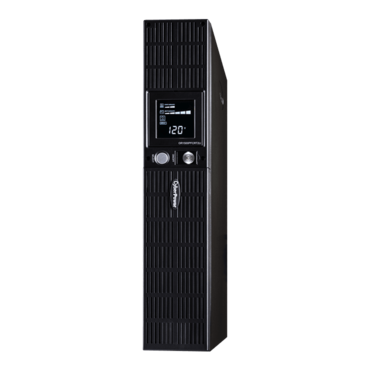

PFC Sinewave OR1500PFCRT2U, 1500VA/1050W, 120V, 8 Outlets, Black, Tower/2U Rackmount UPS

SKU: 3995411



Availability: Available

Price: $472.95
or as low as $15/month

1500VA / 900W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U, Active PFC (Energy Star 5.0), 8 x NEMA 5-15R, RJ11/RJ45/Coax, Green,

  • Capacity: 1500 VA / 1050 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Communication: USB, Serial, EPO
  • Data line protection: Telephone, Ethernet
  • Management software: PowerPanel® Business Edition
  • Warranty: 3 year
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass
Voltage 120 VAC
Input Voltage Range 88 – 139 VAC
Adjustable Voltage Range 86 – 142 VAC
Frequency Range 60 Hz ± 3 Hz
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset Right
Cord Length 10 ft
VA 1,500 VA
Watts 1,050 W
On Battery Voltage 120 VAC ± 5%
On Battery Frequency 60 Hz ± 1%
On Battery Waveform Sine Wave
Output Power Factor 0.7
Automatic Voltage Regulation (AVR) Yes, +14%
Outlet Type NEMA 5-15R
Outlets – Total 8
Outlets – Battery & Surge Protected 8
Overload Protection Internal Circuitry Limiting
Transfer Time 4 ms
Runtime at Half Load 17 minutes
Runtime at Full Load 7.7 minutes
Battery Type Sealed Lead-Acid
Battery Size 12V/7Ah
Battery Quantity 4
Battery Voltage 24V
Hot-Swappable Yes
User Replaceable Yes
Typical Recharge Time 10 hours
Replacement Battery Cartridge RB1270X4G (With serial numbers beginning with ‘GX8’)
RB1270X4C (With serial numbers beginning with ‘GAN’ or ‘GAS’)
Replacement Battery Cartridge Quantity 1
Surge Protection & Filtering
Surge Suppression 1,470 J
Phone RJ11 / Ethernet RJ45 1-In, 1-Out (10/100)
EMI/RFI Filtration Yes
Management & Communications
Multifunction LCD Panel Yes
HID Compliant USB Port Yes
Serial Port Yes
Emergency Power Off (EPO) Port Yes
Cables Included USB Cable
LED Indicators Power On

Wiring Fault

Audible Alarms On Battery

Low Battery


Software PowerPanel® Business Edition
Remote Management Card None
Form Factor Rack/Tower
Rack Size 2U
Dimensions – W×H×D (in) 17.01 × 3.5 × 15.32 inches
Weight (lbs) 50.6 lbs
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Humidity 0 – 90% (non-condensing)
Maximum Operating Elevation 0 – 10000 feet (0 – 3000 meters)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Storage Humidity 0 – 95% (non-condensing)
Maximum Storage Elevation 0 – 50000 feet (0 – 15000 meters)
Audible Noise @ 1.5m 48.7 dBA
On Line Thermal Dissipation 95.6 BTU/hr
On Battery Thermal Dissipation 647.4 BTU/hr
Safety UL 5th


FCC Class A

Environmental RoHS Compliant
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
