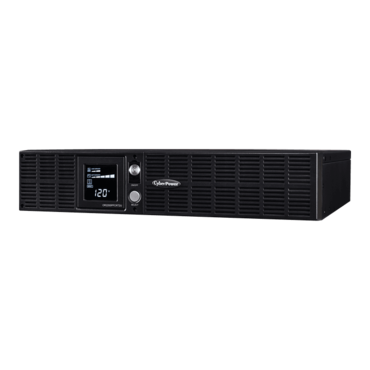

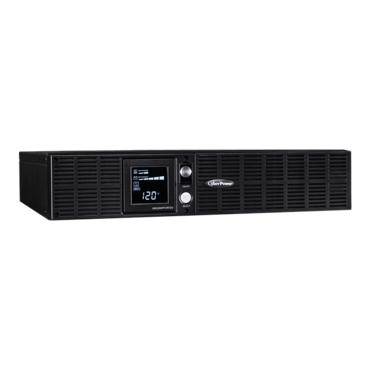

PFC Sinewave OR2200PFCRT2U, LCD, 2000 VA/1540 W, Sine Wave, 2U Rackmount/Tower UPS
Quantity:
- SKU: 3995412
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OR2200PFCRT2U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$669.95
PFC Sinewave OR2200PFCRT2U, LCD, 2000 VA/1540 W, Sine Wave, 2U Rackmount/Tower UPS
2000VA / 1350W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U, Active PFC (Energy Star 5.0), 8 x NEMA 5-20R, RJ11/RJ45/Coax, Green,
2000VA / 1350W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U, Active PFC (Energy Star 5.0), 8 x NEMA 5-20R, RJ11/RJ45/Coax, Green,
- Capacity: 2000 VA / 1540 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Plug type & cord: NEMA 5-20P, 10 ft. cord
- Outlet types: 2 × NEMA 5-20R, 6 × NEMA 5-15R
- Communication: USB, Serial, EPO
- Data line protection: Telephone, Ethernet
- Management software: PowerPanel® Business Edition
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| Input | |
| Voltage | 120 VAC |
| Input Voltage Range | 88 – 139 VAC |
| Adjustable Voltage Range | 86 – 142 VAC |
| Frequency Range | 60 Hz ± 3 Hz |
| Plug Type | NEMA 5-20P |
| Plug Style | Right Angle |
| Cord Length | 10 ft |
| Output | |
| VA | 2,000 VA |
| Watts | 1,540 W |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Output Power Factor | 0.77 |
| Automatic Voltage Regulation (AVR) | Yes, +14% |

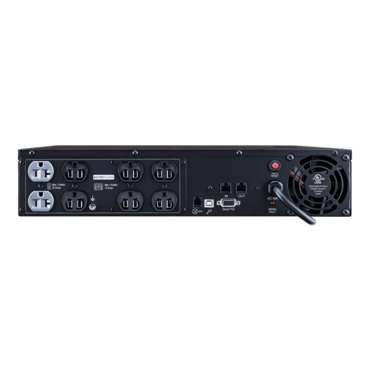

| Outlet Type | (2) NEMA 5-20R, (6) NEMA 5-15R |
| Outlets – Total | 8 |
| Outlets – Battery & Surge Protected | 8 |
| Overload Protection | Internal Circuitry Limiting |
| Transfer Time | 4 ms |
| Battery | |
| Runtime at Half Load | 15.5 minutes |
| Runtime at Full Load | 4.5 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9Ah |
| Battery Quantity | 4 |
| Battery Voltage | 24V |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Typical Recharge Time | 10 hours |
| Replacement Battery Cartridge |
RB1290X4H (With serial numbers beginning with ‘GX9’) RB1290X4C (With serial numbers beginning with ‘GAM’ or ‘GAR’) |
| Replacement Battery Cartridge Quantity | 1 |
| Surge Protection & Filtering | |
| Surge Suppression | 1,470 J |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (10/100) |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| Multifunction LCD Panel | Yes |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Emergency Power Off (EPO) Port | Yes |
| Cables Included | USB Cable |
| LED Indicators |
Power On
Wiring Fault |
| Audible Alarms |
On Battery
Low Battery Overload |
| Software | PowerPanel® Business Edition |
| Remote Management Card | None |
| Physical | |

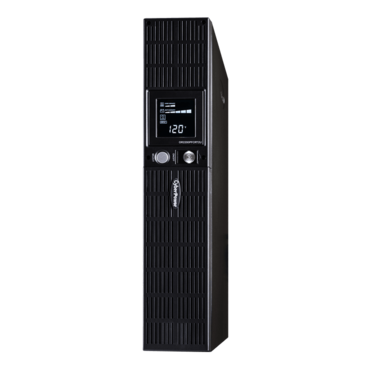

| Form Factor | Rack/Tower |
| Rack Size | 2U |
| Dimensions – W×H×D (in) | 17.01 × 3.5 × 15.32 inches |
| Weight (lbs) | 57.2 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Maximum Operating Elevation | 0 – 10000 feet (0 – 3000 meters) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Storage Humidity | 0 – 95% (non-condensing) |
| Maximum Storage Elevation | 0 – 50000 feet (0 – 15000 meters) |
| Audible Noise @ 1.5m | 48.5 dBA |
| On Line Thermal Dissipation | 177.5 BTU/hr |
| On Battery Thermal Dissipation | 1278 BTU/hr |
| Certifications | |
| Safety |
UL 5th
cUL FCC Class A |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
