PH-F120D30 D-RGB 120mm, RGB LEDs, 2000 RPM, 64.3 CFM, 30.2 dBA, Cooling Fan
Quantity:
- SKU: 16273774
- Manufacturer: PHANTEKS
- MPN: PH-F120D30_DRGB_PWM_BK01
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$39.99
PH-F120D30 D-RGB 120mm, RGB LEDs, 2000 RPM, 64.3 CFM, 30.2 dBA, Cooling Fan

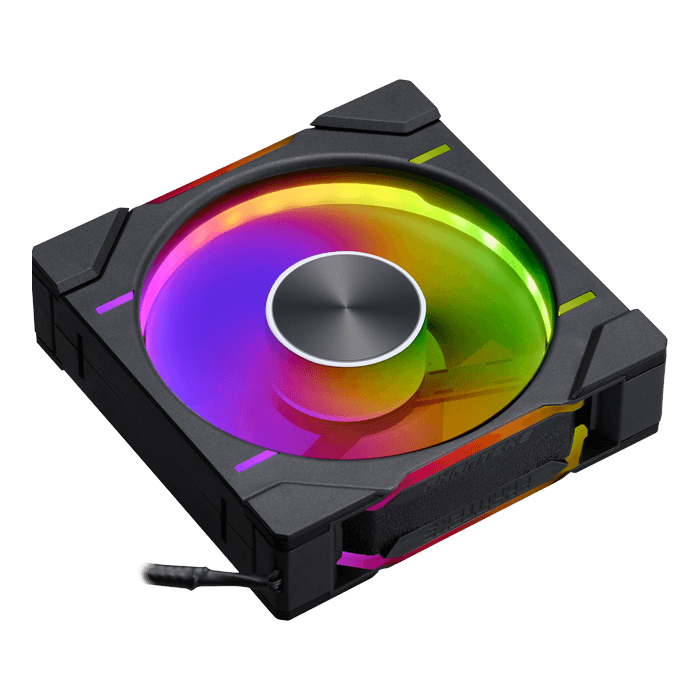

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
| Model No. | PH-F120D30_DRGB_PWM_BK01 PH-F120D30_DRGB_PWM_WT01 |
| UPC Code | 886523002925 886523002932 |
| Fan Dimension (WxHxD) | 120 x 120 x 30 mm |
| Blade Geometry | Seven Blades Design |
| Frame Color | Black/White |
| Rated Voltage | DC 12V / LED 5V |
| Operating Voltage Range | 5 -13.2V |
| PWM | Yes |
| Speed | 250 -2000 +10% RPM |
| Max. Airflow | 64.3 CFM |
| max. Air Pressure | 3.01 mm H2O |
| Noise Level | 30.2 dB(A) |
| Fan Connector | 4-Pin PWM |
| Cable Length | 700 mm / 27.56 in |
| D-RGB Connector | 3-Pin JST Daisy-chain |
| D-RGB Cable Length | 600+100 mm / 23.62+3.94 in |
| LED Number | 30 (D-RGB) |
| LED Rated Current | Max 0.45A |
| MTBF | 50.000 hrs at 40°C |
| Fan Weight | 300 g |
| Package Contents | 1x PH-F120D30_DRGB_PWM 4x Fan Screw 4x Radiator Screw 36mm 1x Corner Clip Cable, 3x Corner Clip 1x Bridge Clip, 1x Bridge Clip Connector 4x Screw Cover Corner (2L, 2R) 2x Screw Cover Bridge 1x D-RGB M/B Adapter |
| Warranty | 3 years |
