PH-P750G, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
- SKU: 13634476
- Manufacturer: PHANTEKS
- MPN: PH-P750G
- Availability: TEMPORARILY OUT OF STOCK
Price
$111.65
| Brand | Phanteks |
|---|---|
| Series | AMP Series |
| Model | PH-P750G |
| Type | Intel ATX 12V |
| Maximum Power | 750W |

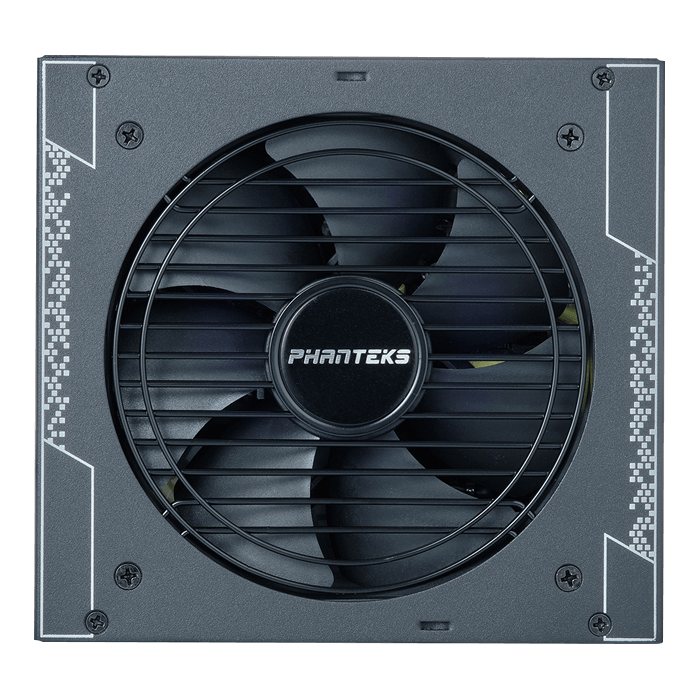

| Fans | 1 x 120mm Fluid Dynamic Bearing Fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| Haswell Support | Yes |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 - 5 A |
| Output | +3.3V@20A, +5V@20A, +12V@62A, [email protected], +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | Energy Star,RoHS,WEEE,Erp Lot 6, REACH |
| Dimensions | 3.39" x 5.91" x 5.51" |
| Max PSU Length | 140 mm |
| Weight | 3.50 lbs. |

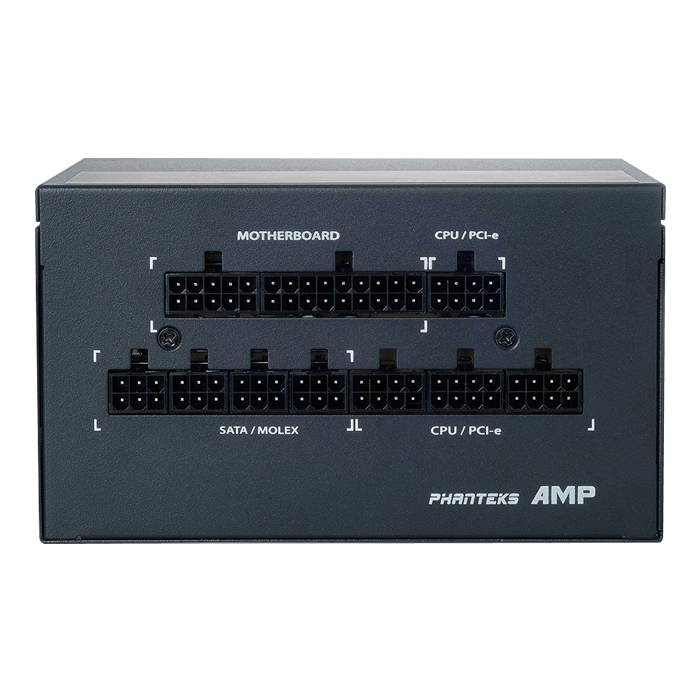

| Connectors |
1 x Main Power 2 x 4/8 Pin CPU 4 x PCIE 8 x SATA 3 x Peripheral 1 x FDD |
| Features |
Ultra-High Efficiency, 80 PLUS Gold Certified Revolt PRO Link Certified Gold-Plated High Current Terminals 120mm Fluid Dynamic Bearing Fan Ultra-High Power Density, Compact Size Silent Hybrid Fan Control Multi-GPU Support 10 Year Warranty |
