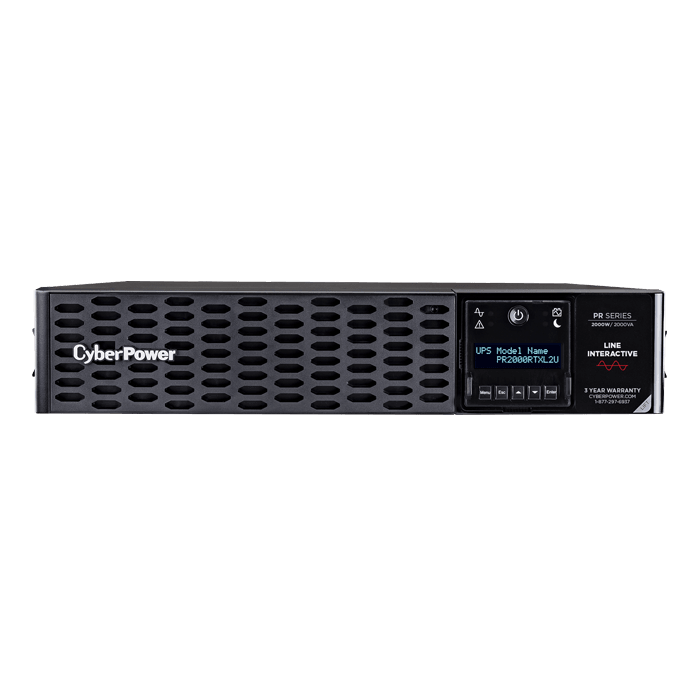

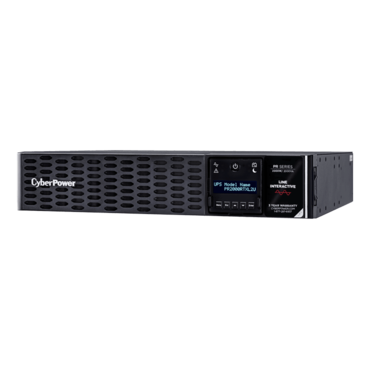

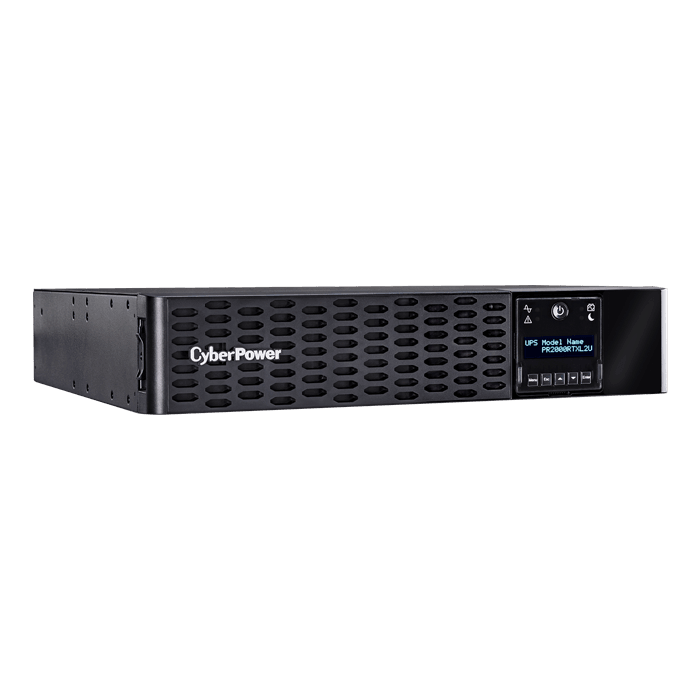

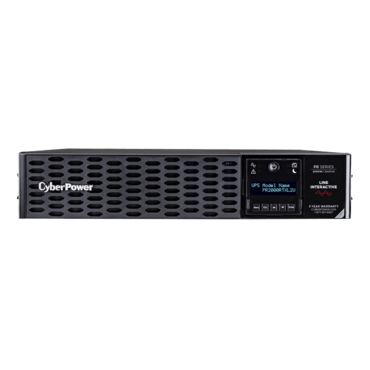

PR2000RTXL2UTAA, LCD, 2000 VA/2000 W, Sine Wave, 2U Rackmount/Tower UPS - TAA Compliant
Quantity:
- SKU: 13305032
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR2000RTXL2UTAA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,451.95
- Capacity:2000 VA / 2000 W
- Topology:Line Interactive
- Waveform:Sine Wave
- Output:100-125 VAC ± 5%
- Plug type & cord:NEMA 5-20P, 10 ft. cord
- Outlet types:8 × NEMA 5-20R
- Communication:USB, Serial, SNMP, Relay, EPO
- Management software:PowerPanel® Business
- Remote management:Yes, with optional RMCARD205TAA
- Warranty:3 year
- ENERGY STAR® certified:Yes
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Equalization Technology | Yes |
| Battery Quantity | 4 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Extended Battery Module | BP48VP2U02TAA |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Runtime at Full Load | 4.3 min |
| Runtime at Half Load | 12.2 min |
| Typical Recharge Time | 3 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 70 – 155 VAC |
| Circuit Breaker | 20 A |
| Cord Lengtd | 10 ft (3.0 m) |
| Input Frequency Range | 47 Hz – 63 Hz |
| Input Plug Type | NEMA 5-20P |
| Input Voltage | 100 – 125 VAC |
| Input Voltage Range | 75 VAC – 155 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 0° Offset |
| Output | |
| Automatic Voltage Regulation |
Double Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Voltage | 100/110/120/125 VAC ± 5% |
| On Battery Waveform | Sine Wave |
| Outlet Type | 8 – NEMA 5-20R |
| Outlets – Battery & Surge Protected | 8 |
| Outlets – Critical Load | 4 |
| Outlets – Total | 8 |
| Output Power Factor | 1 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 2000 VA |
| Watts | 2000 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1 in / 1 out |
| Surge Suppression (Joules) | 2430 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Overcharge Overheat |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators |
Power On Line Mode Battery Mode Fault Night Mode Wiring Fault |
| Management Cable |
USB Cable EPO Cable |
| SNMP / HTTP Remote Monitoring | Yes – witd optional RMCARD205TAA |
| Serial Port |
1 Serial 1 Dry Contact |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 50.04 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 19.7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 500 (mm) |
| Physical Weight (kg) | 33.79 |
| Physical Weight (lb) | 74.5 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 11.11 |
| Shipping – Weight (lb) | 24.5 |
| Shipping Dimensions – (WxHxD) (cm) | 55.88 x 26.67 x 62.23 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.0 x 10.5 x 24.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 558.8 x 266.7 x 622.3 (mm) |
| Environmental | |
| AC Mode tdermal Dissipation | 129.6 BTU/hr |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 cUL 107.1 FCC DOC Class B |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4B |
| Product Warranty | 3 Year Limited Warranty |
