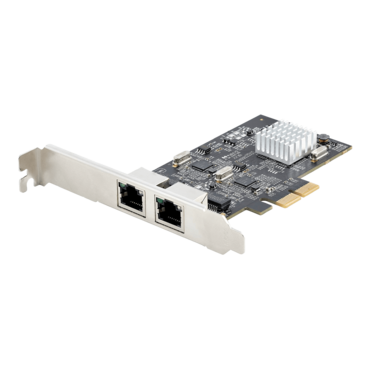

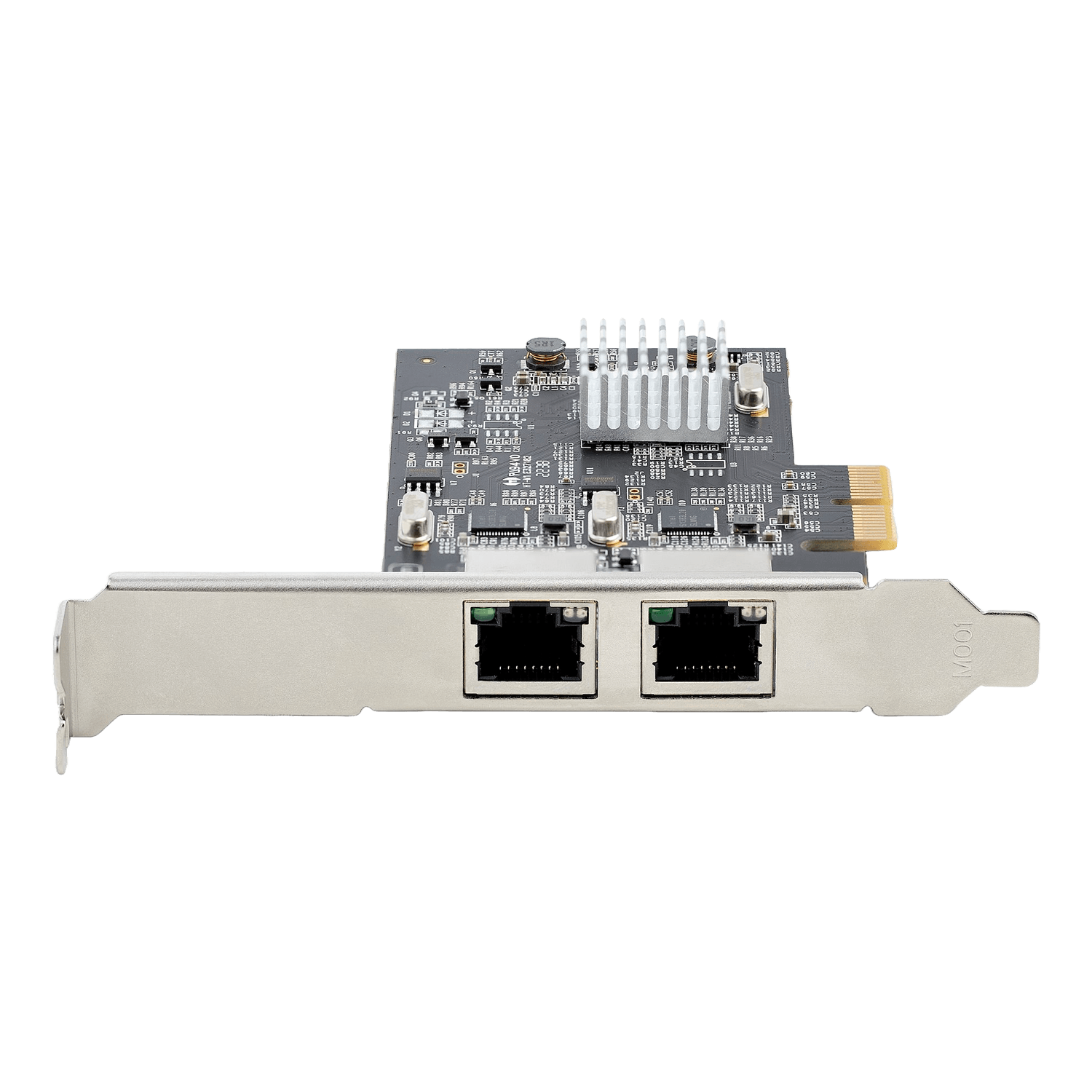

PR22GI-NETWORK-CARD, 2.5 Gbps, 2xRJ45, PCIe Network Adapter
- SKU: 16144752
- Manufacturer: STARTECH.COM
- MPN: PR22GI-NETWORK-CARD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- 2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps dual-port network card with Intel I225-V chip; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x2; Independent Ethernet controllers for reliable performance
- IT MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
- BUILD QUALITY: LAN card features: built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduced EMI for reliable communication
- COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Multi-gigabit network interface card for PC is compatible with Windows and Linux; Low profile bracket included for hardware compatibility
- SPECIFICATIONS: 2x RJ45 Ports, 2.5/1Gbps and 100/10Mbps (Independent controllers) NIC, IEEE 802.3bz (2.5GBASE-T), Full Duplex, Auto MDIX, PCIe 2.0 x2, Intel I225-V, 9K Jumbo Frames, VLAN Tagging, WoL, PXE boot
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x2 |
| External Ports | 2 - RJ-45 |
| Environmental | |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -10°C - 70°C (14°F - 158°F) |
| Humidity | 5% - 90% RH |
| Hardware | |
| Ports | 2 |
| Interface | RJ45 (2.5G Ethernet) |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards |
IEEE 802.3bz (2.5GBASE-T) IEEE 802.3ab (1000BASE-T ) IEEE 802.3u (100BASE-TX ) IEEE 802.3i (10BASE-TX) IEEE 802.1Q (VLAN) IEEE 802.1p (QoS) IEEE 802.1AS (AVB) IEEE 802.1X (WoL) IEEE P802.3az (EEE) IEEE 1588 (PTP) PCI Express Version 2.0 |
| Chipset ID | Intel - I225-V |
| Indicators | |
| LED Indicators |
2 - Left LED Indicator is Link Status Solid Green: Active Link Flashing Green: Activity 2 - Right LED Indicator is Link Speed Solid Green: 2.5 Gbps Solid Amber: 1.0 Gbps Off: 100 or 10 Mbps Flashing Green: Activity |
| Packaging Information | |
| Package Quantity | 1 |
| Package Length | 8.6 in [21.8 cm] |
| Package Width | 6.1 in [15.6 cm] |
| Package Height | 1.5 in [3.8 cm] |
| Shipping (Package) Weight | 5.2 oz [146.0 g] |
| Performance | |
| Wake On Lan | Yes |
| Maximum Data Transfer Rate | 2.5 Gbps |
| Compatible Networks | 2.5G/1G/100Mbps/10Mbps |
| Auto MDIX | Yes |
| PXE | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Physical Characteristics | |
| Color | Black |
| Product Length | 4.7 in [12.0 cm] |
| Product Width | 4.4 in [11.2 cm] |
| Product Height | 0.7 in [1.8 cm] |
| Weight of Product | 2.1 oz [60.0 g] |
| Power | |
| Power Source | Bus Powered |
| Software | |
| OS Compatibility | Windows® 10, 11 Linux 5.8.x and up - LTS Versions only |
| Special Notes / Requirements | |
| Note | - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. |
| What's in the Box | |
| Included in Package |
1 - 2-Port PCIe 2.5 Gbps Network Card 1 - Low Profile Bracket 1 - Quick-Start Guide |
