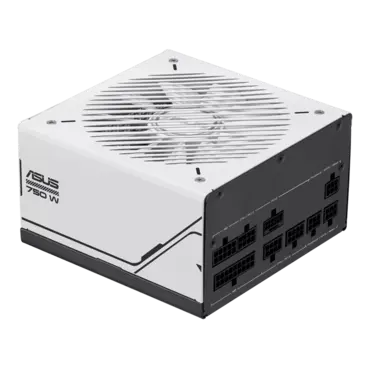

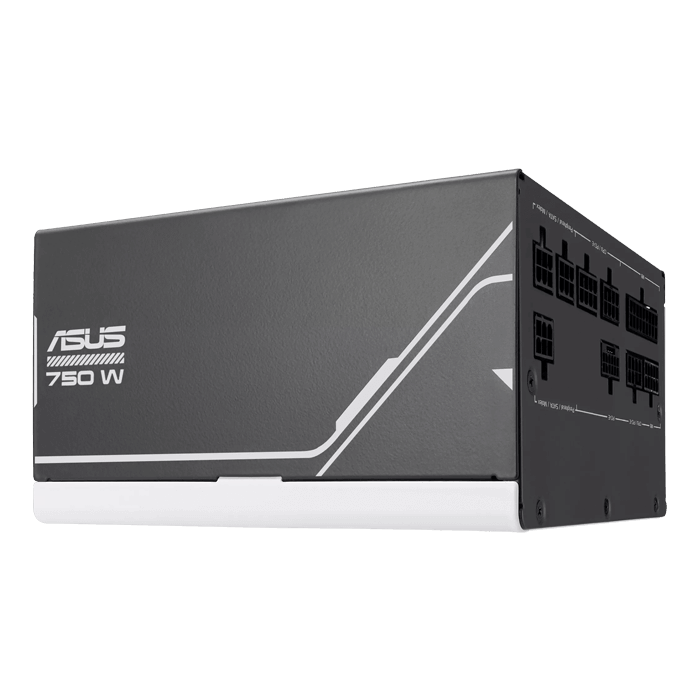

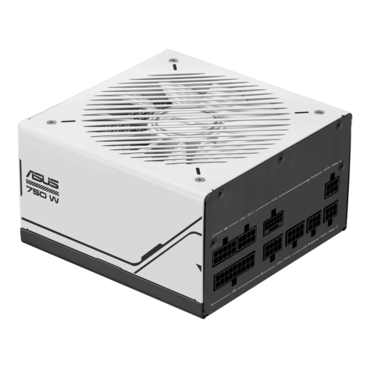

PRIME AP-750G, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply

  • SKU: 17194660
  • Manufacturer: ASUS
  • MPN: AP-750G
Starting At
  • Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
  • An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
  • ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards.
  • 8-year warranty included.
Model AP-750G
Intel Form Factor ATX12V
PFC Type Active PFC
ATX 3.0 Yes
Dimensions 150 x 150 x 86 mm
Efficiency 80Plus Gold
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS

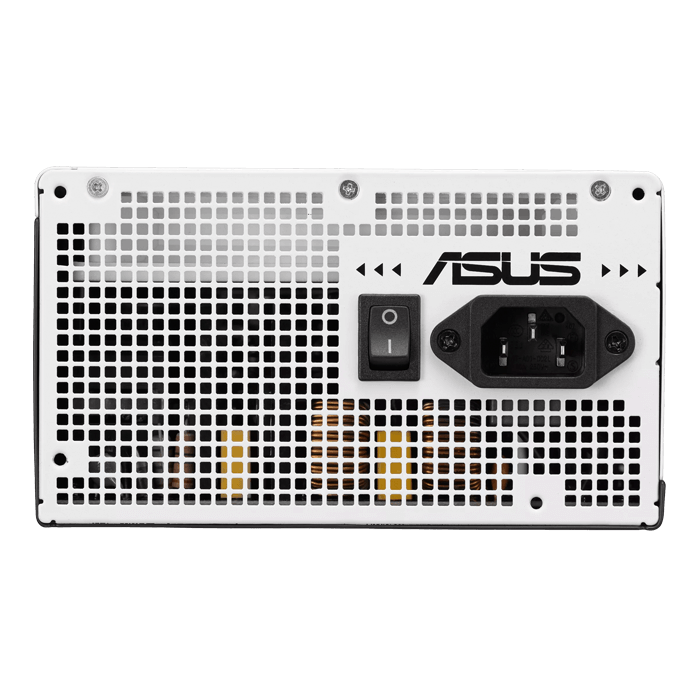

AC Input Range 100-240Vac
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 20A20A62A 0.3A 2.5A
Combined Load 110W 110W 744W 3.6W 12.5W
Total Output 750W

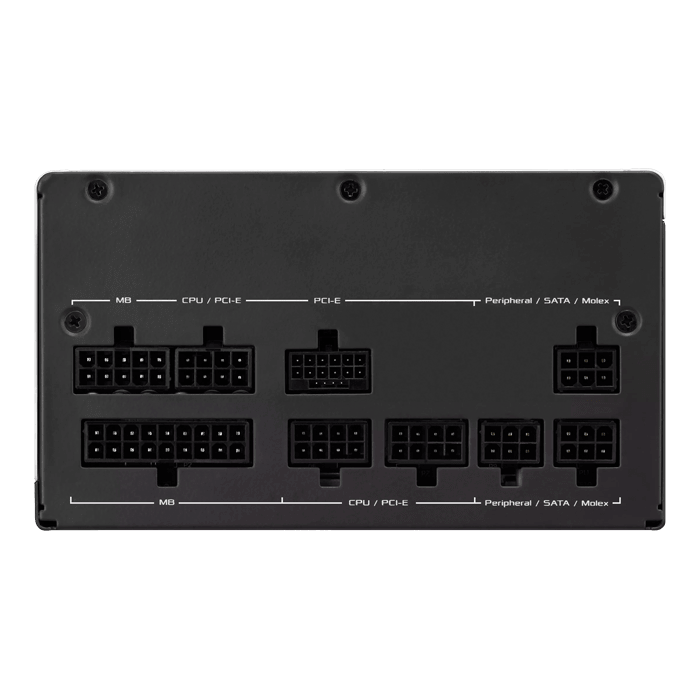

Cable Connectors MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
Package Contents Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
Weight 1.466 kg (single PSU)
0dB Technology No
