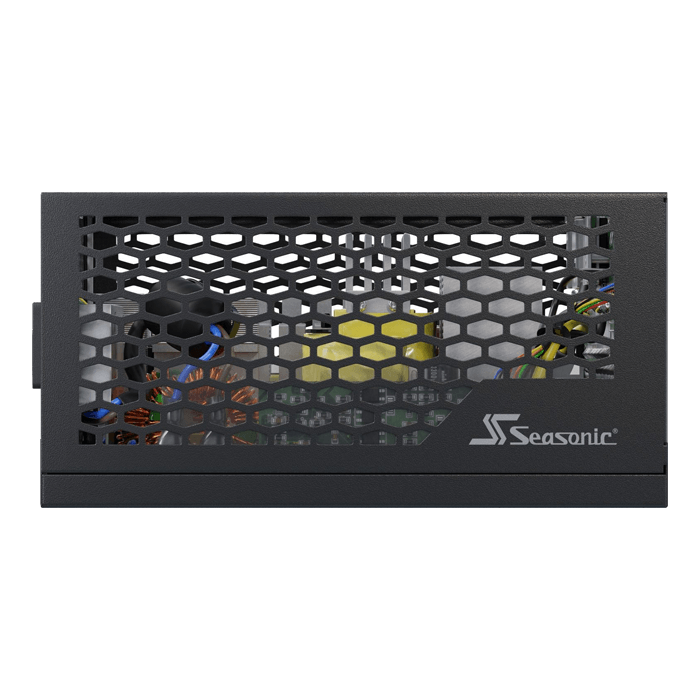

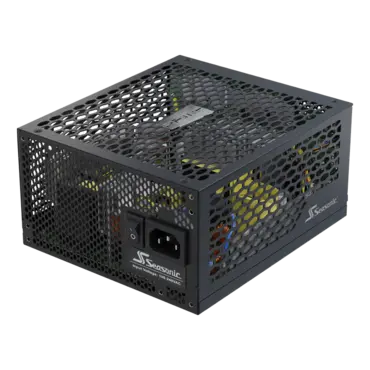

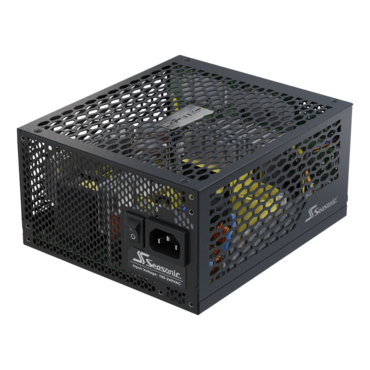

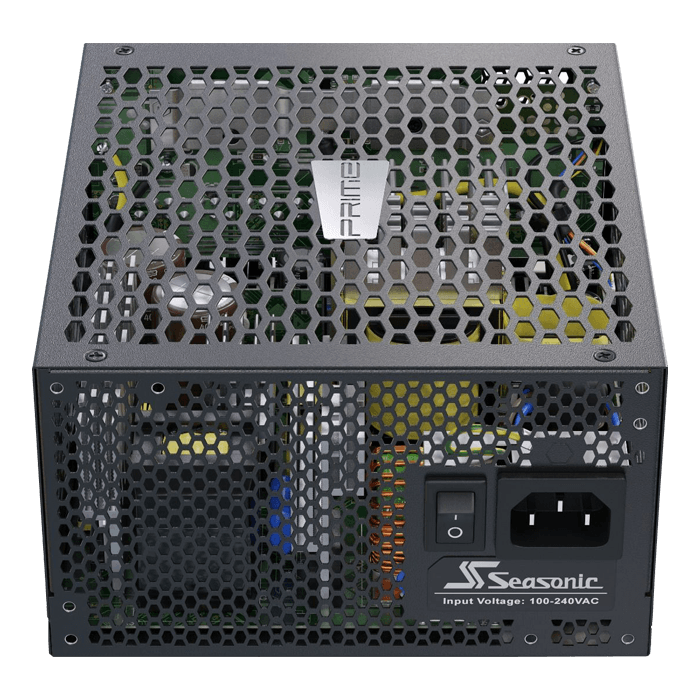

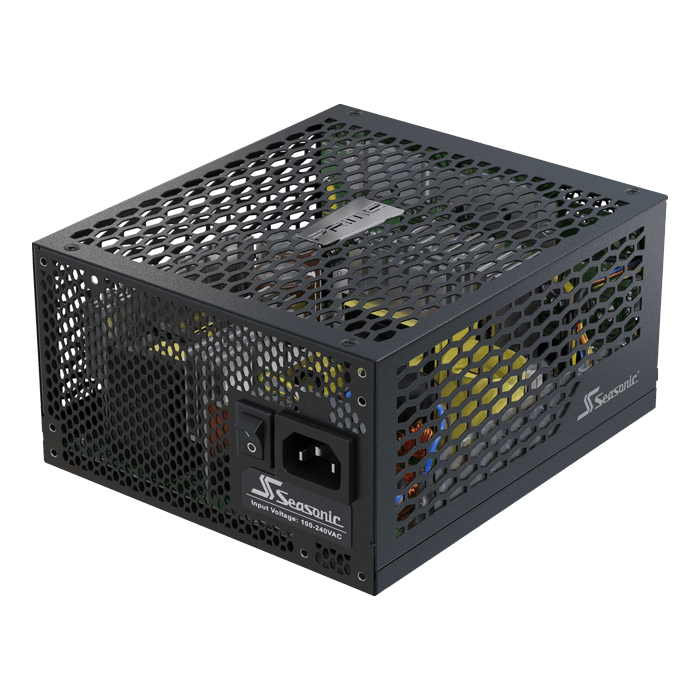

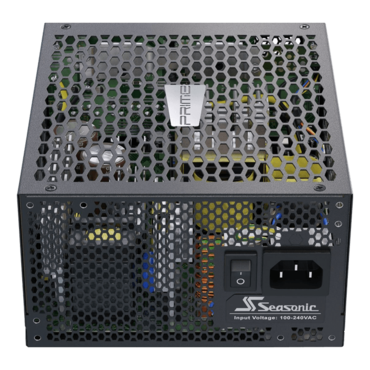

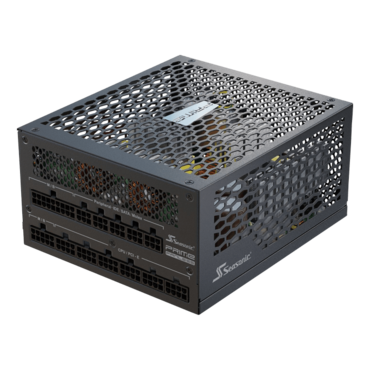

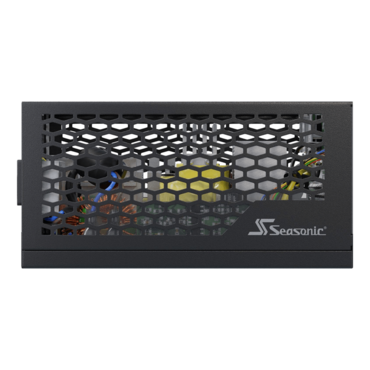

PRIME FANLESS TX-700, 80 PLUS Titanium 700W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 14822272
- Manufacturer: SEASONIC
- MPN: PRIME FANLESS TX-700
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$346.12
PRIME FANLESS TX-700, 80 PLUS Titanium 700W, Fully Modular, ATX Power Supply
PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
- 80 PLUS® Titanium certified
- Micro Tolerance Load Regulation (0.5 %)
- True Fanless Design
- Multi-GPU setup
- Gold plated connectors
- 12 years warrany
| Technical Specifications | ||||||
| 80PLUS ® | Titanium | |||||
| Cybenetics Efficiency Level | Titanium (See report) | |||||
| Cybenetics Noise Level | A++ (See report) | |||||
| Form Factor | Intel ATX 12 V | |||||
| Dimensions | 170 mm (L) x 150 mm (W) x 86 mm (H) | |||||
| Fan Information | Fan Size | N/A | ||||
| Fan Control | N/A | |||||
| Fan Bearing | N/A | |||||
| Life Expectancy | N/A | |||||

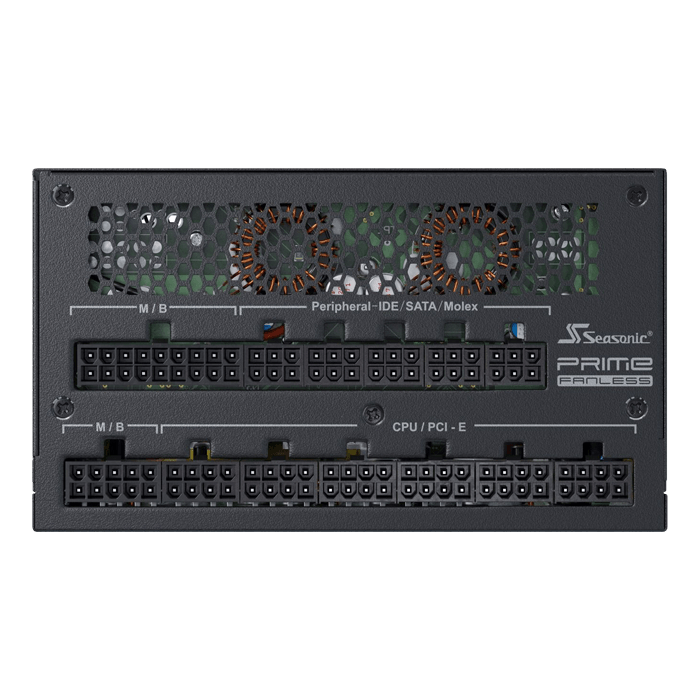

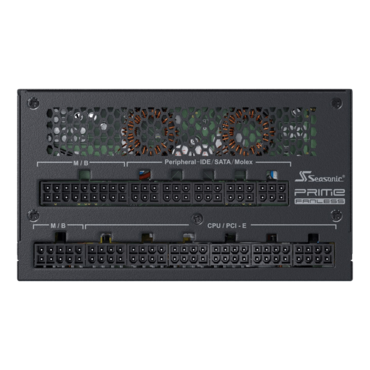

| Cable Information | Modularity | Fully Modular | ||||
| Cable type | Webbed cables (MB, CPU, PCIe) Flat black cables |
|||||
| Electrical Features | Operating Temperature | 0 - 45 °C (derating from 100 % to 80 % from 40 °C to 45 °C) | ||||
| MTBF @ 25 °C, excl. fan | 150,000 hours | |||||
| AC Input | Full Range | |||||
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |||||
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | ||||
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |||||
| Warranty | 12 Years | |||||
| Power Output | ||||||
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 9.5-4.5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 58 A | 0.3 A | 3 A | |
| 100 W | 696 W | 3.6 W | 15 W | |||
| Total continuous power | 700 W | |||||
| Cable type | Connector(s) per cable | Total Length (mm) | Number(s) of cable(s) included | |||
| MB (24/20 pins) | 1 | 610 | 1 | |||
| CPU (8/4 pins) | 1 | 650 | 2 | |||
| PCIe (8/6 pins) | 1 | 750 | 4 | |||
| SATA | 4 | 810 | 1 | |||
| SATA | 4 | 860 | 1 | |||
| SATA | 2 | 450 | 1 | |||
| Molex | 3 | 690 | 1 | |||
| Molex | 2 | 470 | 1 | |||
| Molex to SATA 3.3 Adapter | 2 | 300 | 1 | |||
