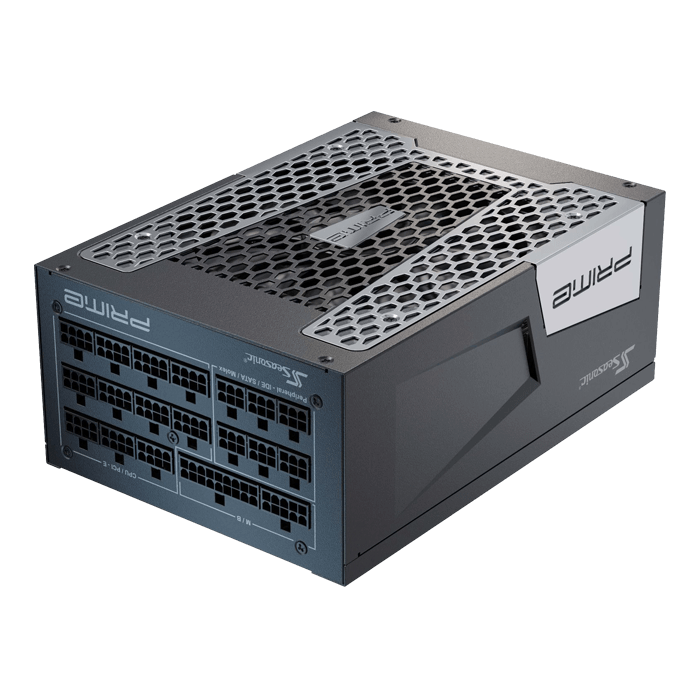

PRIME TX-1600, 80 PLUS Titanium 1600W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15146406
- Manufacturer: SEASONIC
- MPN: SSR-1600TR
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$558.53
As low as $46.54/ Month*
- 80 PLUS® Titanium certified
- Micro Tolerance Load Regulation (0.5 %)
- Cable-free Connection Design
- Premium Hybrid Fan Control - Fanless until 40 % load
- Multi-GPU setup
- Gold plated connectors
- 12 years warranty
| Technical Specifications | ||
| 80PLUS® | Titanium | |
| Cybenetics Efficiency Level | Titanium | |
| Cybenetics Noise Level | Lambda A | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 210 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Premium Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 15 - 10 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 133.3 A | 0.5 A | 3 A | |
| 125 W | 1600 W | 6 W | 15 W | |||
| Total Continuous Power | 1600 W | |||||
