Model | |
---|---|
Brand | SeaSonic |

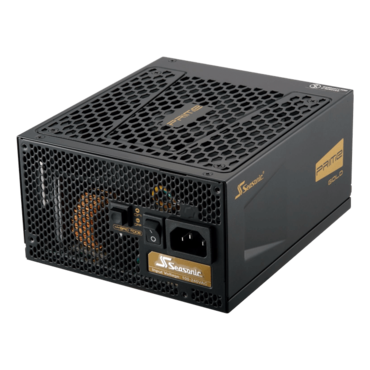

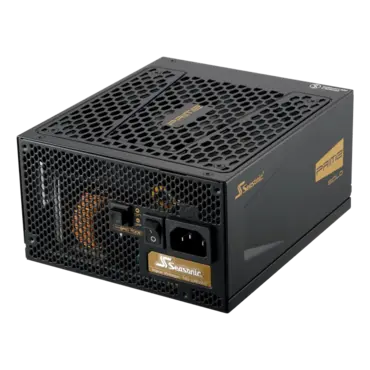

Model | SSR-750GD2 |
Series | PRIME Ultra Gold |
Details | |
Type | Intel ATX 12 V |
Maximum Power | 750W |
Fans | 135 mm Fluid Dynamic Bearing Fan |
Main Connector | 20+4Pin |
+12V Rails | Single |
PCI-Express Connector | 4 x 6+2-Pin |
SATA Power Connector | 8 |
Modular | Full Modular |
Energy-Efficient | 80 PLUS GOLD Certified |
Over Voltage Protection | Yes |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10 - 5 A |
Output | +3.3V@20A, +5V@20A, +12V@62A, -12V@0.3A, +5VSB@2.5A |
MTBF | 150,000 hours MTBF @ 25 degree C, excl. fan |
Approvals | cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Dimensions | 5.91" x 5.51" x 3.39" |
Weight | 7.50 lbs. |
Features | |
Connectors | 1 x Main Power (24/20 pins)
1 x CPU (8/4 pins) 4 x PCIe (8/6 pins) 8 x SATA 3 x Peripheral 1 x Floppy |
