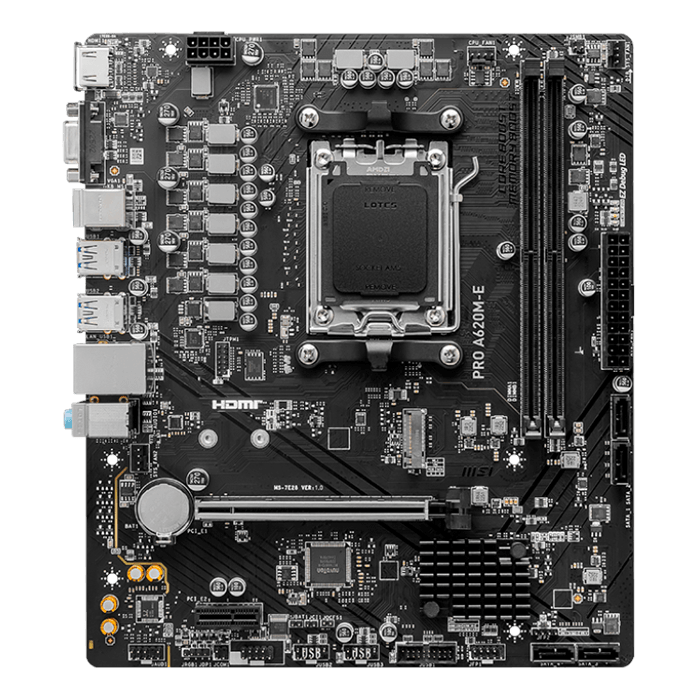

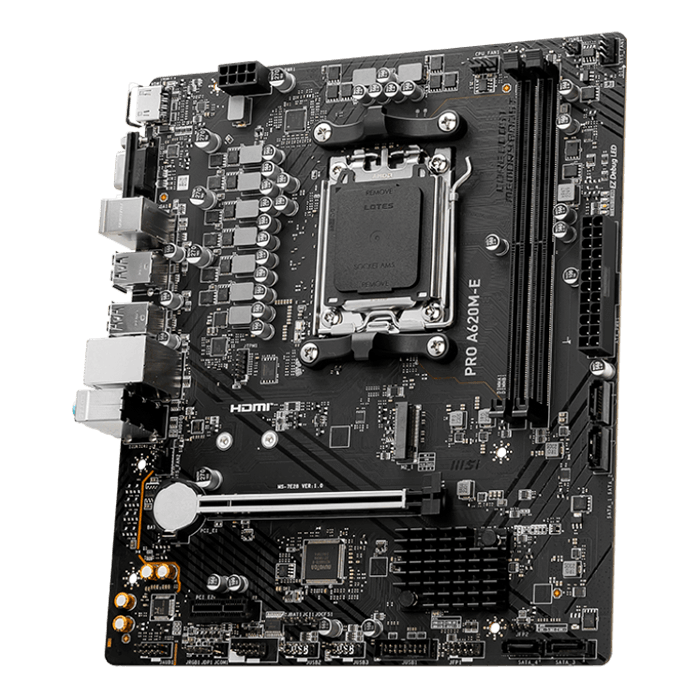

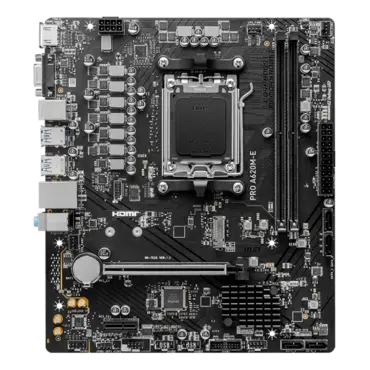

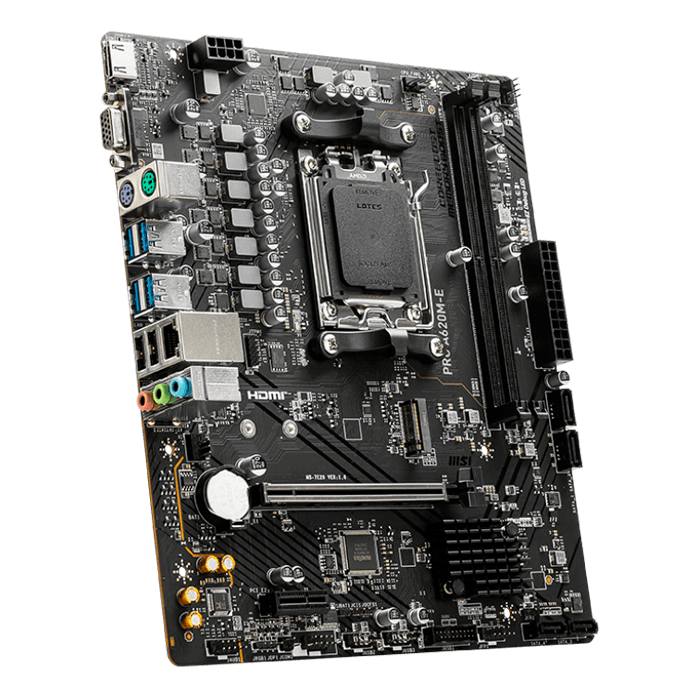

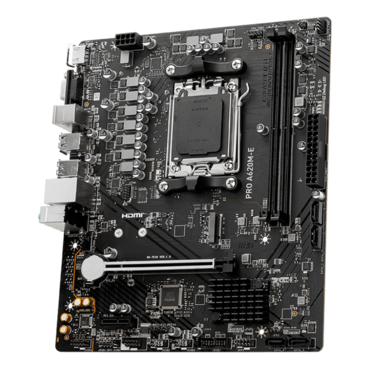

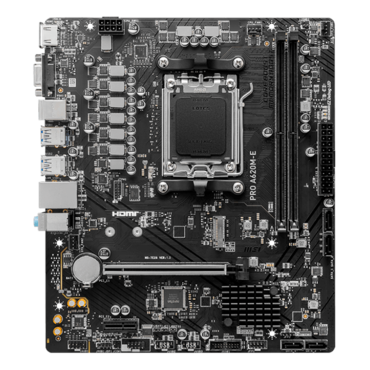

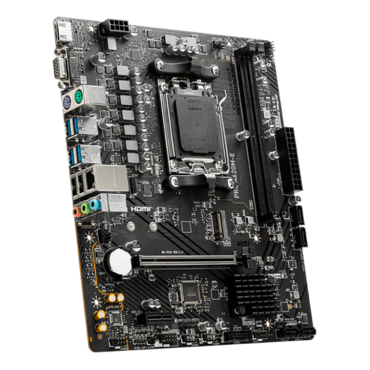

PRO A620M-E, AMD A620 Chipset, AM5, microATX Motherboard

Quantity:
  • SKU: 15982382
  • Manufacturer: MSI
  • MPN: PRO A620M-E
  • Availability: CONTACT US
Starting At
$91.66
PRO A620M-E, AMD A620 Chipset, AM5, microATX Motherboard

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
CHIPSET AMD A620
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
MEMORY 2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
ONBOARD GRAPHICS 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED

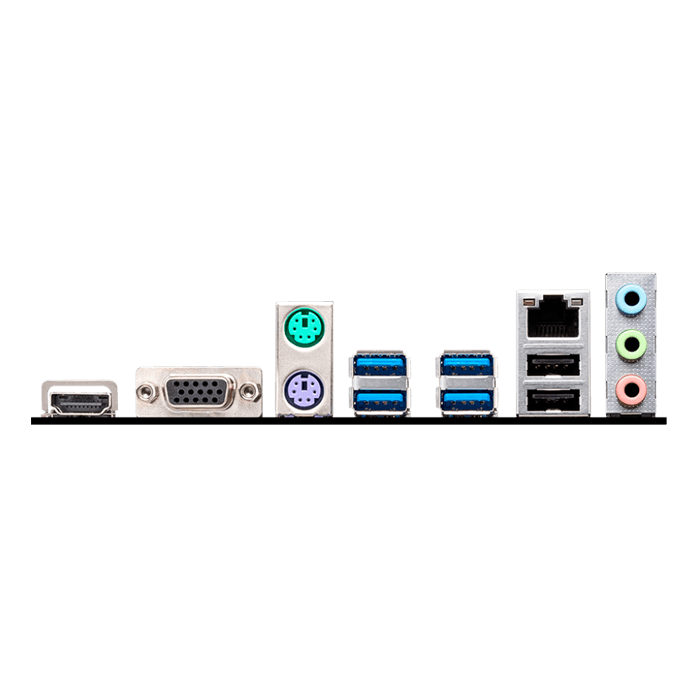

BACK PANEL PORTS
  • 1x HDMI™
  • 1x VGA
  • 2x Keyboard/Mouse
  • 4x USB 3.2 Gen 1 5Gbps (Type-A)
  • 1x LAN port
  • 3x Audio connectors
  • 2x USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION microATX
211mm x 243.84mm / 8.3 inch x 9.6 inch
