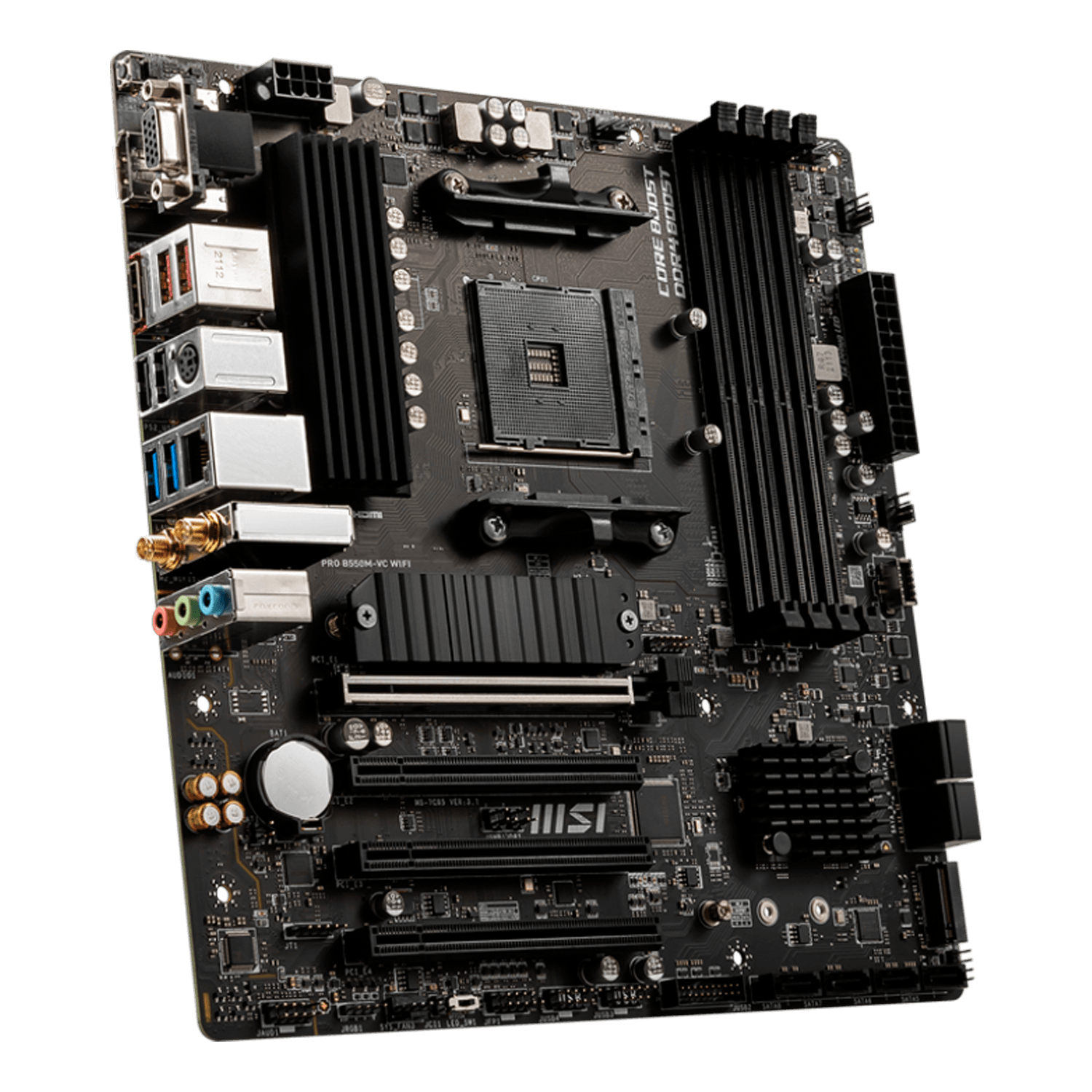

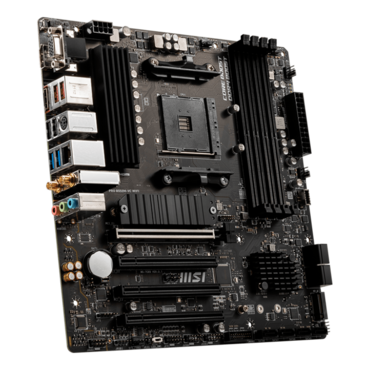

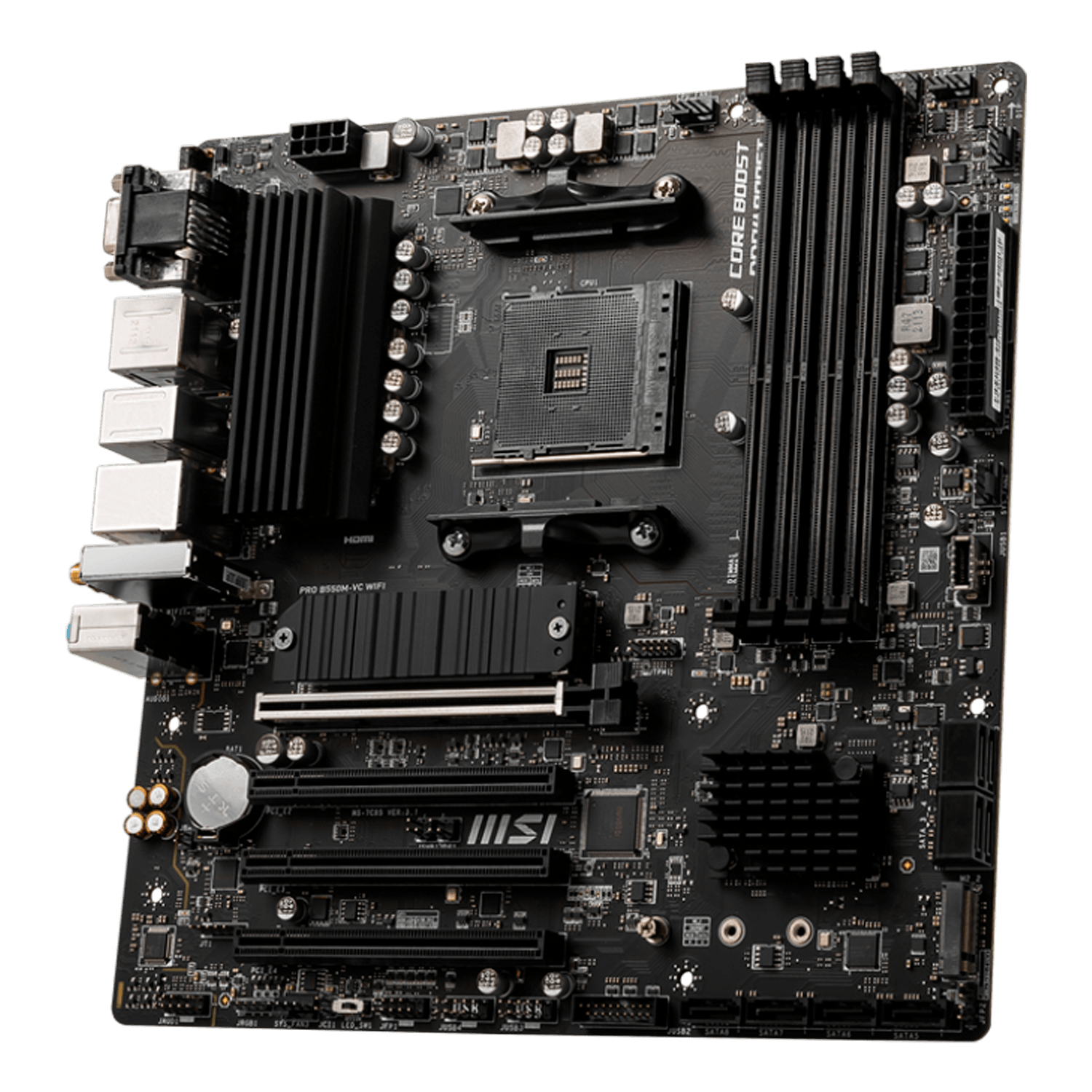

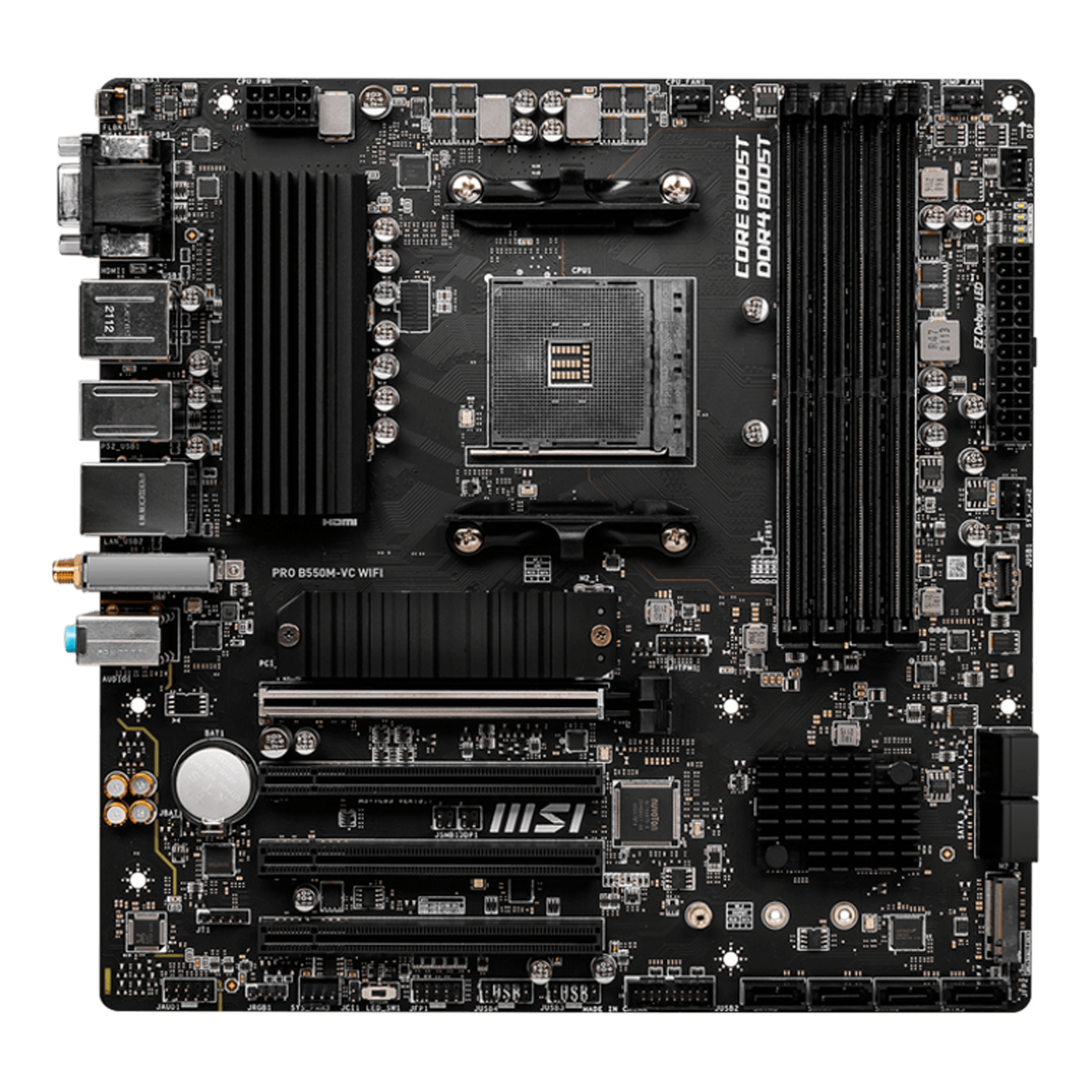

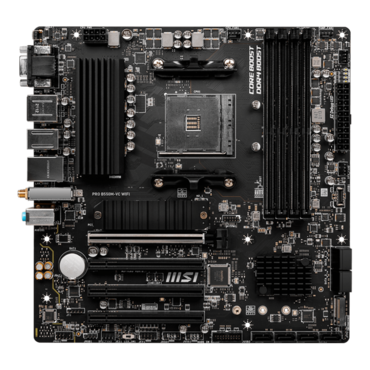

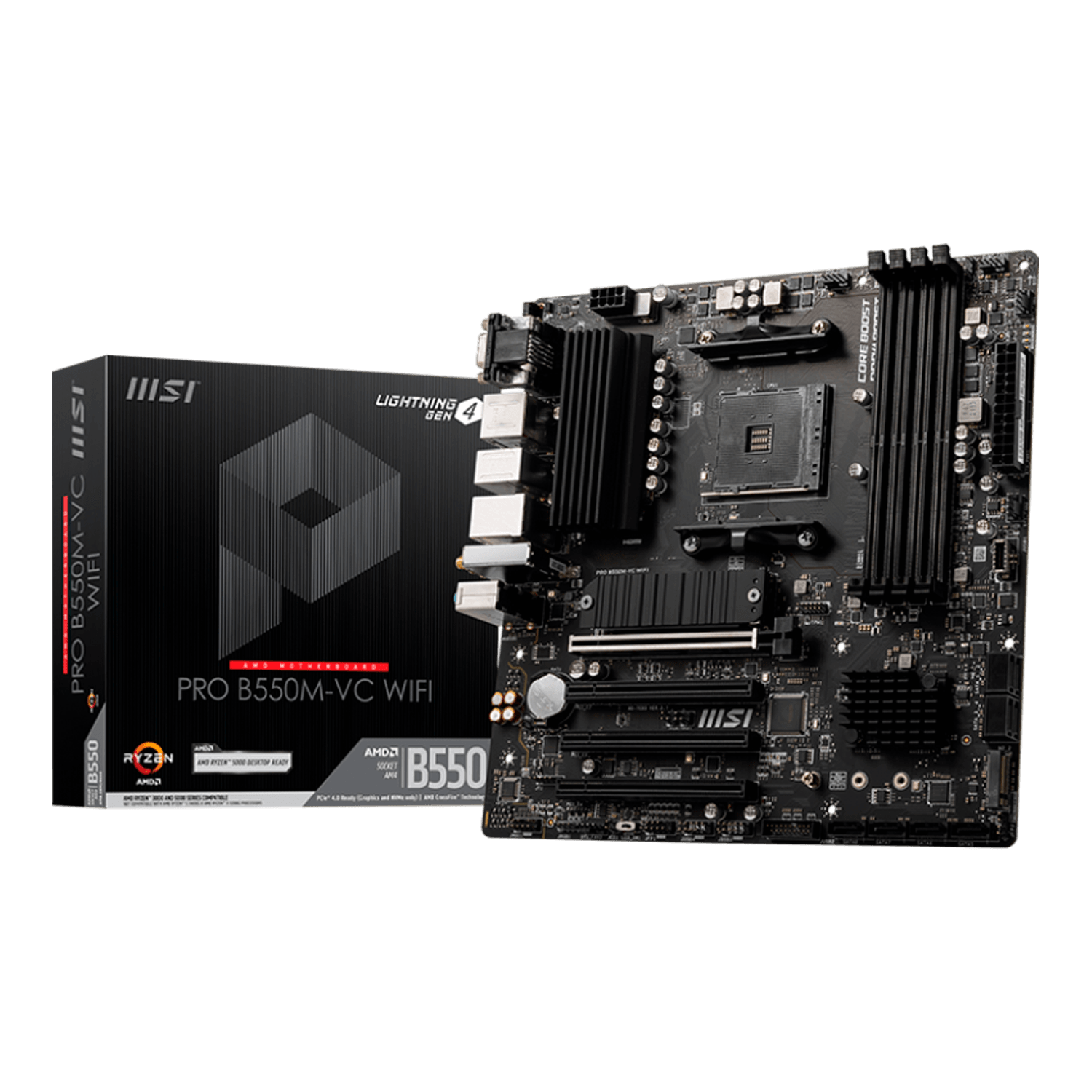

PRO B550M-VC WIFI, AMD B550 Chipset, AM4, microATX Motherboard
- SKU: 15218316
- Manufacturer: MSI
- MPN: PRO B550M-VC WIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$129.92
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
| Socket | AMD Socket AM4 |
| Chipset | AMD® B550 Chipset |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 4 |
| PCI-E Gen | Gen4 / Gen3 |
| SATAIII | 8 |
| M.2 Slot | 2 |
| RAID | 0/1/10 |
| TPM (header) | 1 |
| WiFi & Bluetooth | AMD Wi-Fi 6E Module |
| USB 3.2 ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 2(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Audio ports (Rear) | Realtek® ALC892/ALC897 Codec |
| DisplayPort | 1 |
| VGA | 1 |
| HDMI | 1 |
| DirectX | 12 |
| CPU Support | Support for Windows® 10 64-bit |
| Form Factor | MATX |
