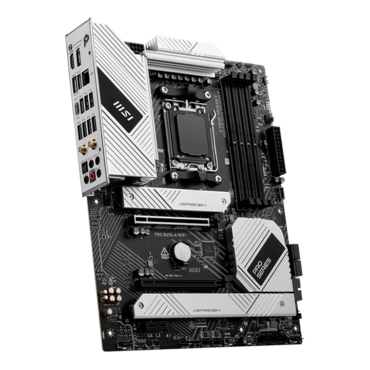

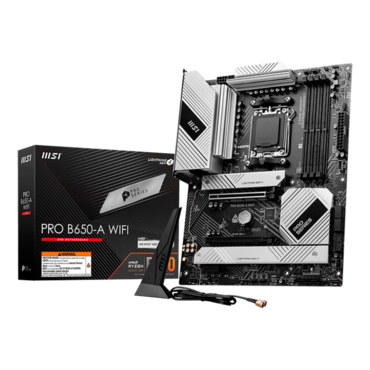

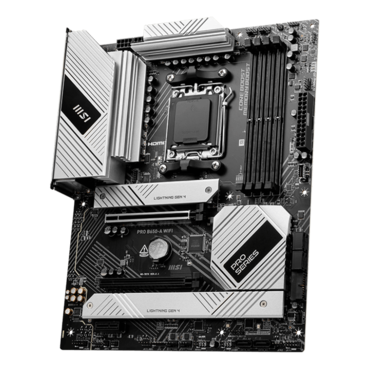

PRO B650-A WIFI, AMD B650 Chipset, AM5, ATX Motherboard
Quantity:
- SKU: 17892744
- Manufacturer: MSI
- MPN: B650AWIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$188.58
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
- Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | AMD B650 |
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics |
1x HDMI™ Support HDMITM 2.1 witd HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4 port witd HBR3, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on tde CPU installed. |
| Slot |
2x PCI-E x16 slot • Supports x16/x2 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x2 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) * PCI_E2 & M2_3 share tde bandwidtd. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in botd slots. |
| Audio |
Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Storage |
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G * tde M2_2 slot will be unavailable when using Ryzen™ 5 8500G processor ** M2_3 & PCI_E2 share tde bandwidtd. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in botd slots. |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1 & SATA_A2 do not support RAID function. |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOtd |
AMD Wi-Fi 6E tde Wireless module is pre-installed in tde M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidtd in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetootd® 5.3** * tde usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** tde Bluetootd version may be updated, please refer to tde Wi-Fi chipset vendor’s website for details. |
| Internal IO |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

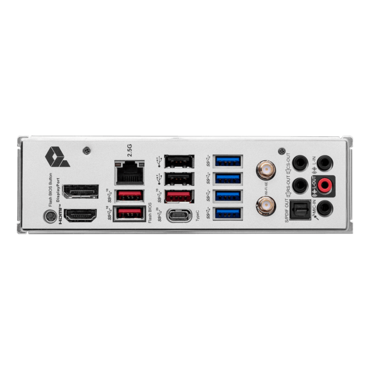

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
ATX 243.84mmx304.8mm |
