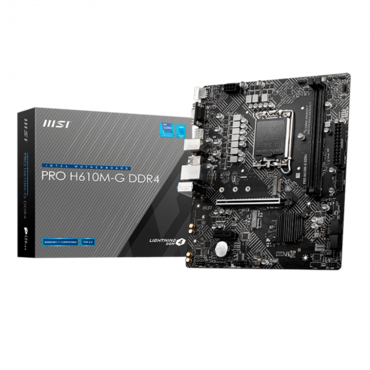

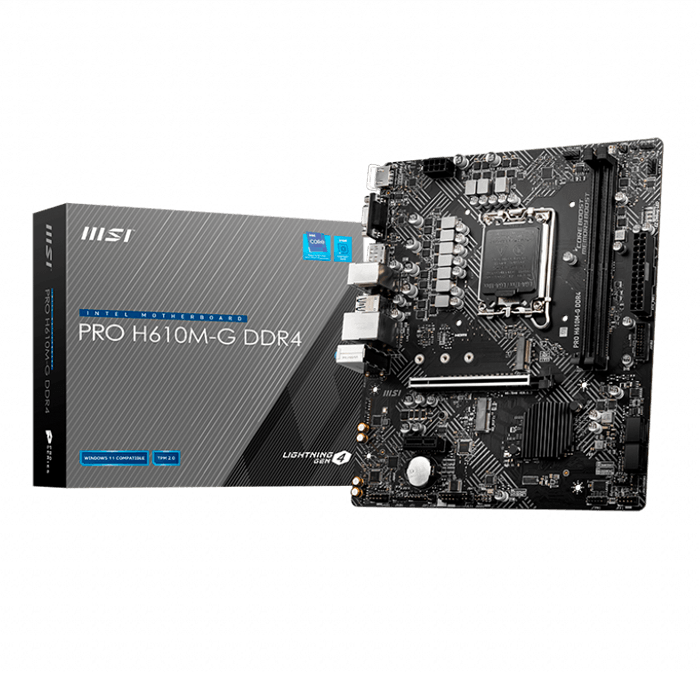

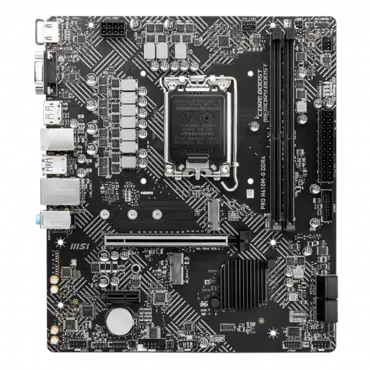

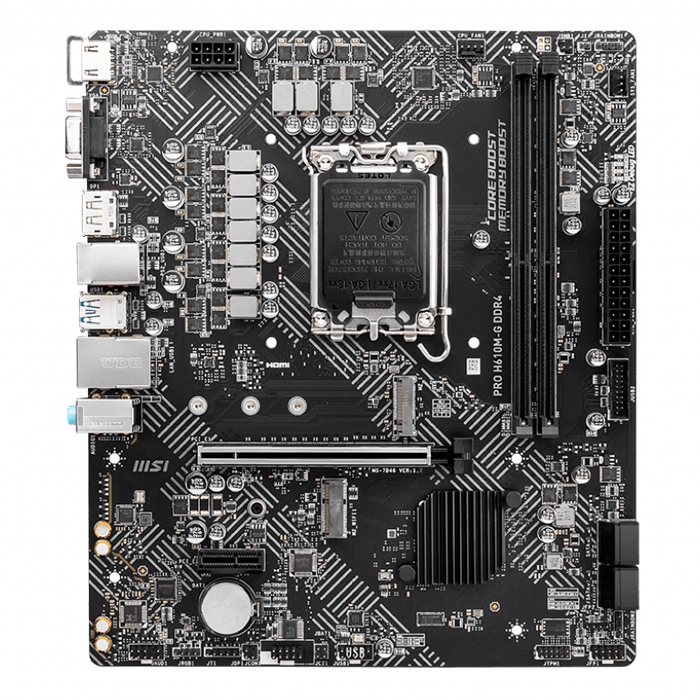

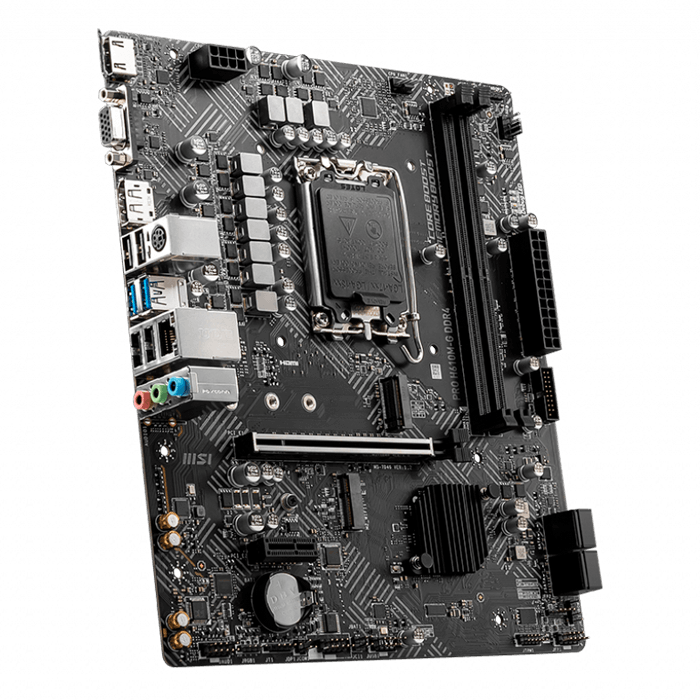

PRO H610M-G DDR4, Intel® H610 Chipset, LGA 1700, DP, microATX Motherboard

Supports 12th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors

Processor socket LGA1700

•  Please go to www.msi.com to get the newest support status as new processors are released.

Intel^® H610 Chipset

• 2x DDR4 memory slots, support up to 64GB
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

•  Please refer to www.msi.com for more information on compatible memory.

See supported memory

• 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot
  • Supports PCIe 3.0 x1
• 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
• 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

•  Available only on processors featuring integrated graphics.
•  Graphics specifications may vary depending on the CPU installed.

• 4x SATA 6Gb/s ports

•  * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

• 1x M.2 slot (Key M, from chipset)
  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

•  SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

Intel^® H610 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Realtek^® ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

• 1x Intel^® I219V 1Gbps LAN controller

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector

• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector

• 1x Clear CMOS jumper

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

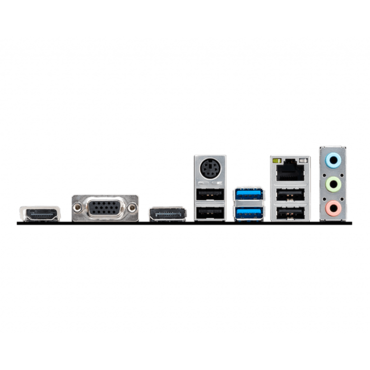

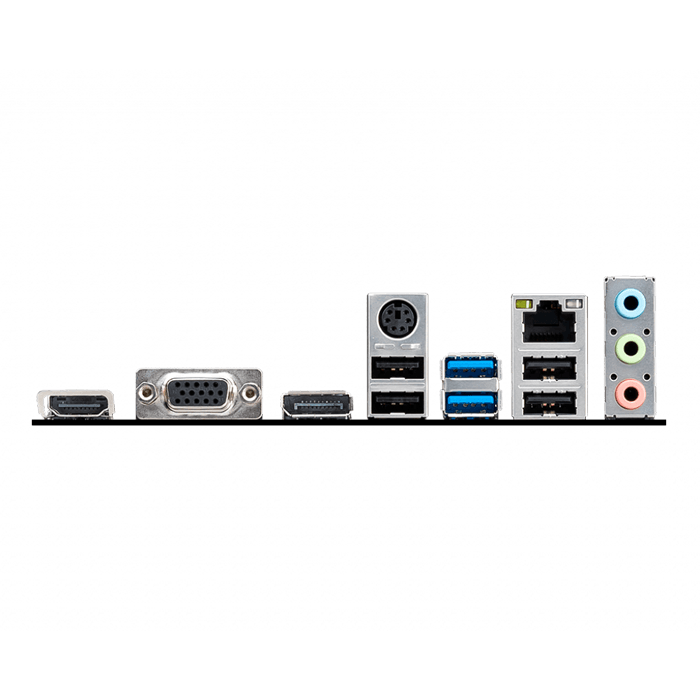

• HDMI
• VGA
• DisplayPort
• Keyboard/Mouse
• USB 3.2 Gen 1 5Gbps Type-A
• LAN port
• Audio connector
• USB 2.0

• mATX Form Factor
• 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Support for Windows^® 11 64-bit
