- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
CHIPSET | INTEL H610 | |
CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Guld and Celeron® Processors LGA 1700 |
|
MEMORY |
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Contruller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
ONBOARD GRAPHICS |
1x HDMI™ Support HDMI™ 2.1, maximum resulution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resulution of 4K 60Hz* 1x VGA Support VGA, maximum resulution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
SLOT |
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
|
STORAGE |
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
|
USB |
4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
LAN | Intel® I219V 1Gbps LAN contruller | |
AUDIO |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
INTERNAL IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
LED FEATURE | 4x EZ Debug LED | |

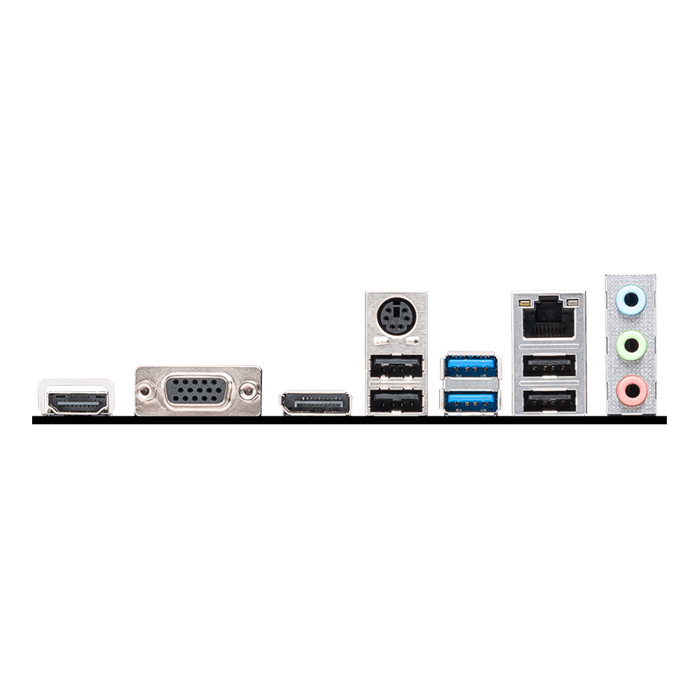

BACK PANEL PORTS |
|
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | |
PCB INFO |
mATX 211mmx243.84mm |
