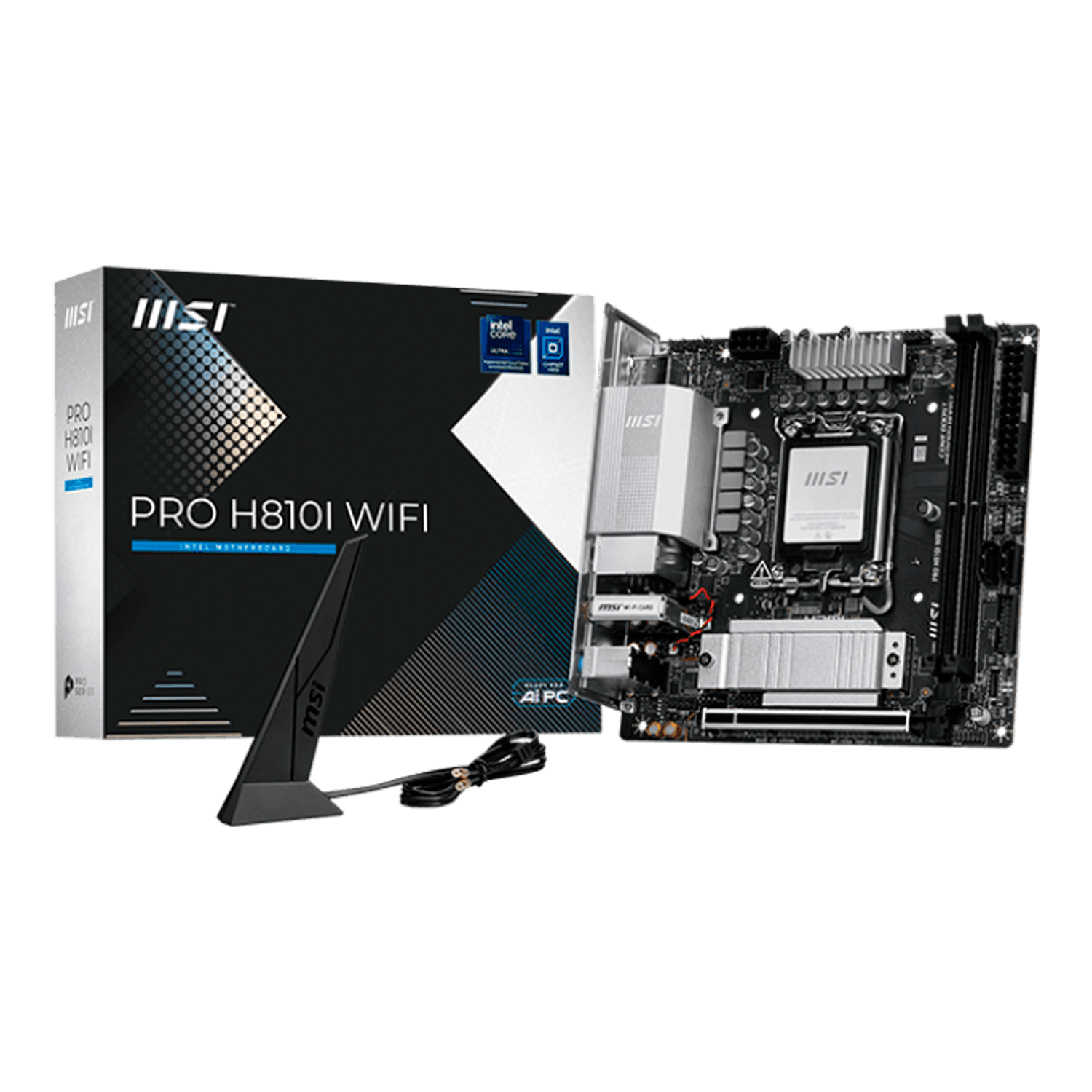

PRO H810I WIFI, Intel® H810 Chipset, LGA 1851, Mini-ITX Motherboard
- SKU: 19503532
- Manufacturer: MSI
- MPN: PRO H810I WIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Frozr Guard: Extended Heatsink, M.2 Shield Frozr, and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience
- EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
- Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
- 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | INTEL H810 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory |
2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed Supports Intel® XMP 3.0 Supports Dual-Contruller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1, maximum resulution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resulution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® I226 2.5Gbps LAN |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | Mini-ITX 170mmx170mm |
