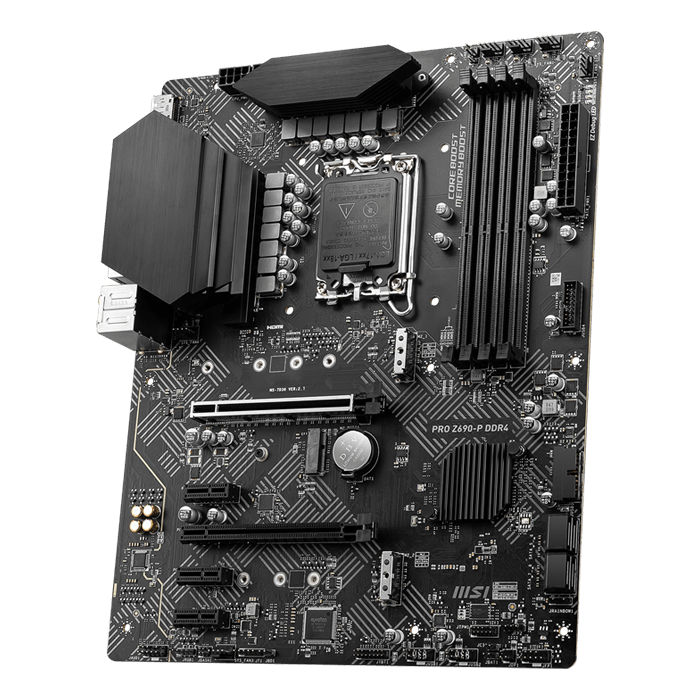

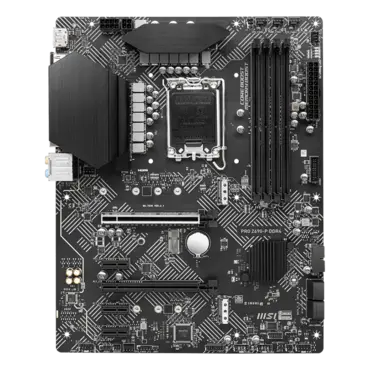

PRO Z690-P DDR4, Intel® Z690 Chipset, LGA 1700, DP, ATX Motherboard

Supports 12th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors¹

Processor socket LGA1700

1. Please go to msi.com to get the newest support status as new processors are released.

Intel^® Z690 Chipset

• 4x DDR4 memory slots, support up to 128GB ¹
• Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5000+ MHz
  • 1DPC 2R Max speed up to 4600+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory

• 2x PCIe x16 slots
  • PCI_E1 slot (From CPU)
    • Support PCIe 5.0 x16
  • PCI_E3 (From Z690 chipset)
    • Support PCIe 3.0 x4
• 3x PCIe 3.0 x1 slots (Fom Z690 chipset)
• 1x M.2 slot with E key for Intel^® Wireless-AX CNVi and PCIe WiFi module

• 1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz¹²
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz¹

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• Supports AMD CrossFire^™ Technology

• 4x SATA 6Gb/s ports (From Z690 chipset)
• 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From Z690 chipset)
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Supports Intel® Optane™ Memory

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• Intel^® Z690 Chipset
  • 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors)
  • 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors)
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

Realtek^®ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Realtek^® RTL8125BG 2.5Gbps LAN controller

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector (Supports RTD3)

• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 4x EZ Debug LED

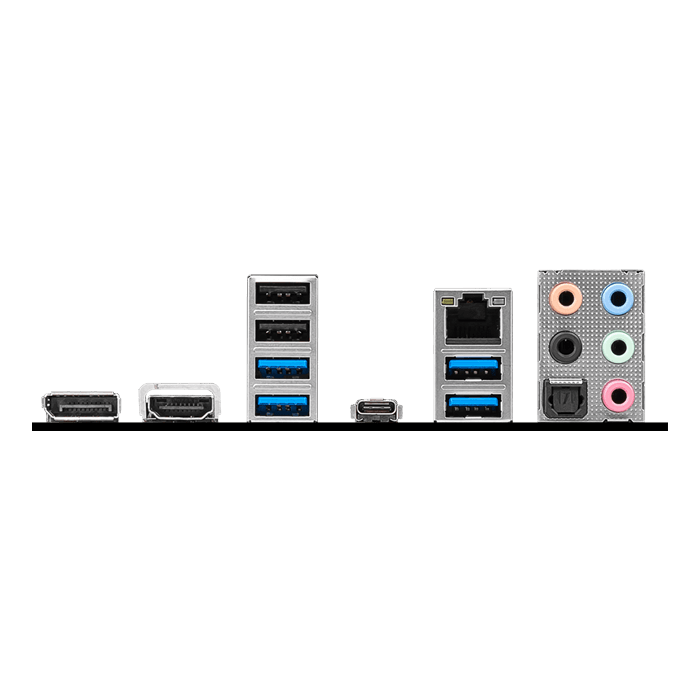

• 1x DisplayPort
• 1x HDMI
• 2x USB 2.0
• 1x LAN port
• 5x Audio Connectors
• 4x USB 3.2 Gen 1 5Gbps Type-A
• 1x USB 3.2 Gen 2x2 20Gbps Type-C
• 1x Optical S/PDIF Out

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
