PS7224-20, 24 Outlets, 15-ft cord, 120V/15A, White, Power Strip
Quantity:
- SKU: 4312
- Manufacturer: TRIPP LITE
- MPN: PS7224-20
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$120.26
PS7224-20, 24 Outlets, 15-ft cord, 120V/15A, White, Power Strip

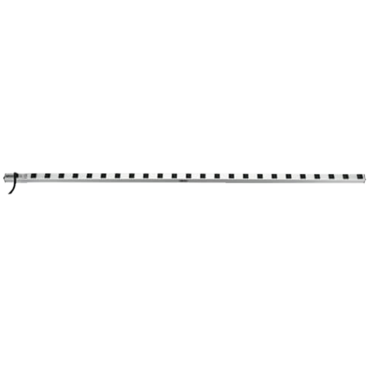

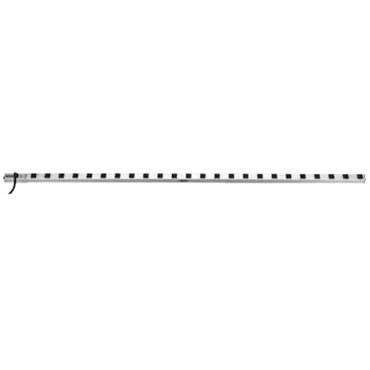

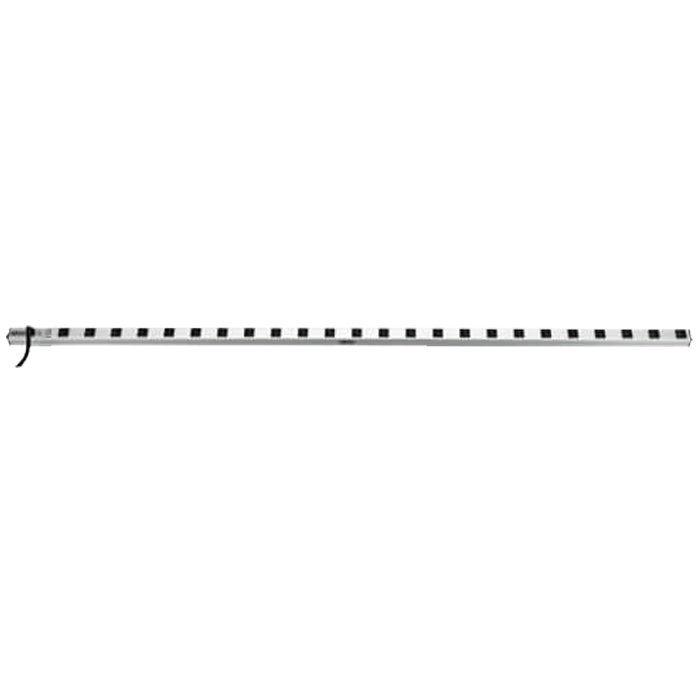

Tripp Lite's PS7224-20 power strip offers 20 amp, 120V multi-outlet AC power distribution in a convenient 72 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway and workbench applications. Includes 24 output receptacles with 2.795 inch center-to-center spacing, 15 ft AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.
- Sturdy all-metal 72 inch corded strip format with 2.795 inch center-to-center outlet spacing
- Included mounting hardware supports vertical or horizontal mounting in rack enclosures, raceways and more
- Includes 22 NEMA 5-15R and 2 NEMA 5-20R output receptacles
- Ideal for horizontal or vertical raceway style power distribution in office, workbench, industrial, networking and telecom applications
- Lighted power switch with locking transparent cover prevents accidental shutoff
- 20 amp electrical capacity with circuit breaker
- 120V AC, 50/60Hz electrical compatibility
| Output | |
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (2) 5-15/20R; (22) 5-15R |
| Output (Watts) | 2400 |
| Circuit Breaker (amps) | 20 |
| Outlet Spacing | 2.795 in. |
| Input | |
| Nominal Input Voltage(s) Supported | 120V AC |
| Recommended Electrical Service | 20A 120V |
| Input Connection Type | Nema 5-20P |
| Input Plug Features | Black |
| Input Cord Length (ft.) | 15 |
| Input Cord Gauge Type | 12/3 SJT |
| Voltage Compatibility (VAC) | 120 |
| Physical | |
| Unit Dimensions (hwd / in.) | 72 x 1.5 x 1.5 |
| Unit Weight (lbs.) | 6.5 |
| Material of Construction | Aluminum |
| Included Mounting Accessories | Includes mounting clips |
| Receptacle Color | Black |
| Color (AC Line Cord) | Black |
| Form Factors Supported | Supports vertical or horizontal mounting in rack enclosures, raceways and a variety of other applications |
| Outlets Measurement (Center to Center) | 72mm |
