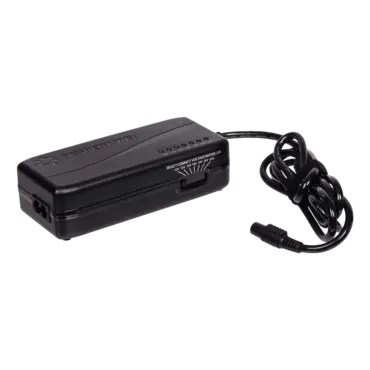

PWI-AC120LE Universal AC/DC Adapter, 12V-24V Output Selector, 120W, 12 Tips, USB

SKU: 3987312

Manufacturer: PRUDENT WAY


Availability: Special Order

Price: $35.63
or as low as $1.15/month

PWI-AC120LE Universal AC/DC Adapter, 12V-24V Output Selector, 120W, 12 Tips, USB


  • 100-240V AC input provides worldwide power conversion capability.
  • Adjustable 12-24V output design fits specific notebook models and LCDs needs.
  • 12 pieces of tip connector for use with most major LCD and notebook brands such as IBM, Dell, Toshiba, Compaq, Asus, Acer, HP, Sony and More.
  • Extra USB port built in for iPODs, PDAs, Cell Phones, MP3 Players and more*.
  • RoHS compliancy is friendly to environment.
  • High efficiency & full power protection.
  • Digital LED Light


Output Power (Max.) 120W
Overload Protection Yes
Fanless No noise
Short Circuit Protection Yes
Line Regulation ±5%
Load Regulation ±5%
Switching Mode Universal switching-mode power adapter for notebooks and LCDs
Special Connectors 12 Pieces Tip Connectors
Including 3-pin connector for Dell notebook*, 4pin TOSHIBA & IBM.
Efficiency > 80% (TYP)
Unit Size 5.25"(W) x 2.4"(D) x 1.5"(H)
Net Weight 1 lb
Package Contents Prudent way (PWI-AC120LE) 120W AC Notebooks and LCDs Power Adapter
12 Tips Connectors
User Manuals
Limited Warranty One year
Output Voltage 12V 15V 16V 18V 19V 20V 24V DC12V-24V
USB Port 5V
Output Current 12V 15V 16V 18V 19V 20V   @ 6 Amp (max)
Output Current             24V @ 5 Amp (max)
USB Port 5V @ 2 Amp
Input Voltage AC120V AC230V
Vibration Input Voltage AC100V-240V
Input Current 1.8 Amp
Input Power 17ms max.
Operating Temp. 0 to 40°C
Humidity 20% to 80%
RoHS Compliant Yes
