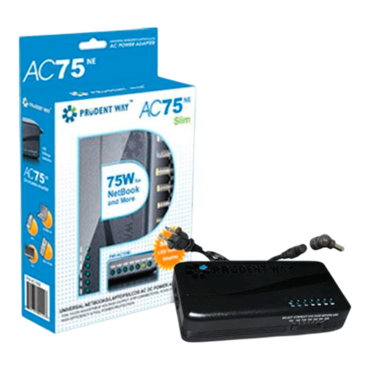

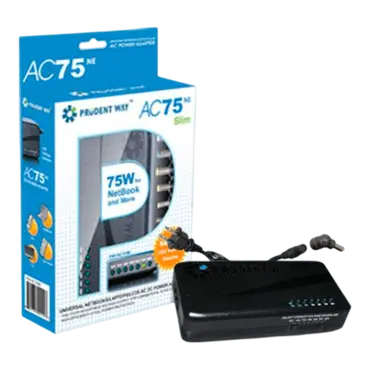

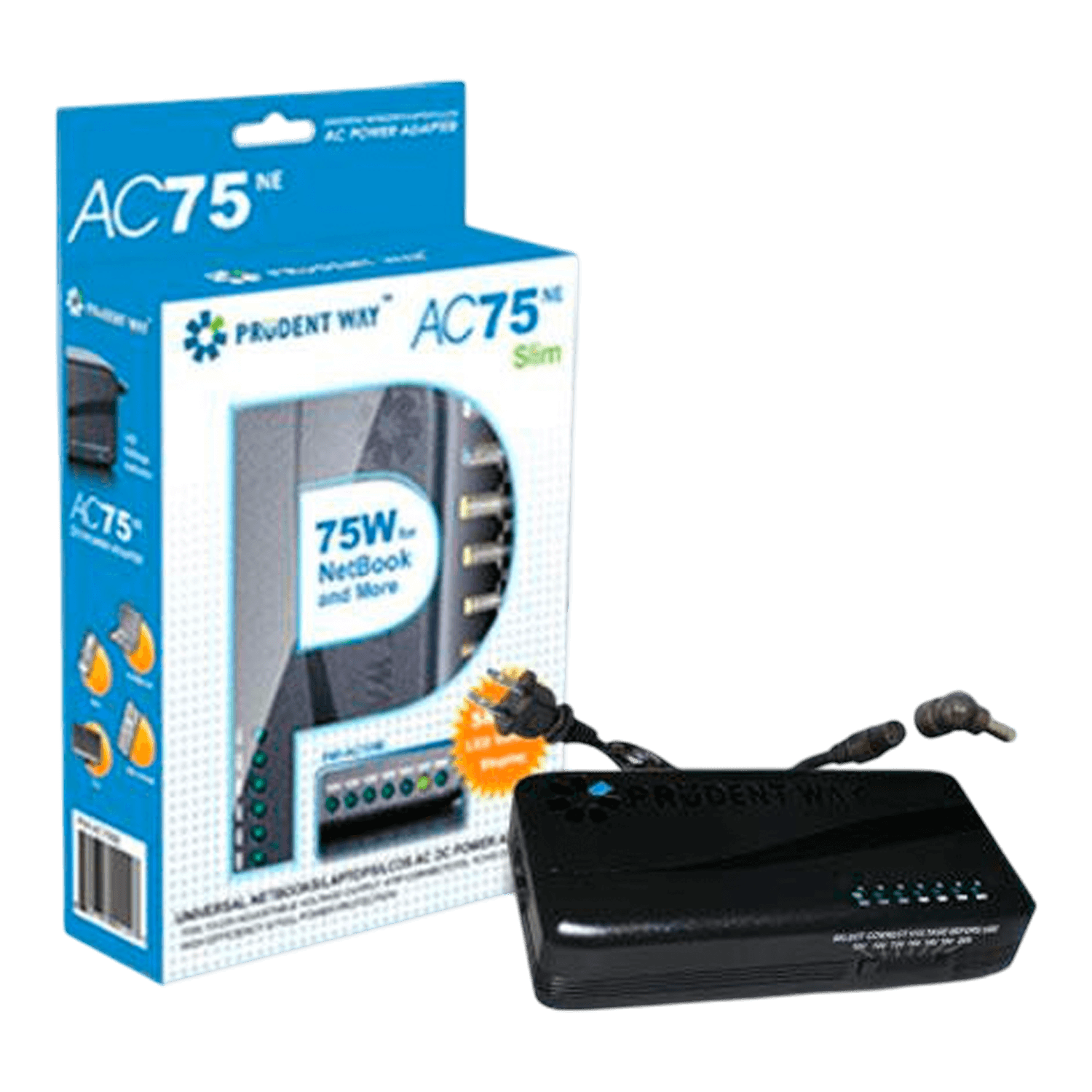

PWI-AC75NE, 75W, Universal Notebook Adapter
- SKU: 19472381
- Manufacturer: PRUDENT WAY
- MPN: PWI-AC75NE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$31.03
| PRODUCT FEATURES | |||||||||
| Output Power (Max.) | 75W | ||||||||
| Overload Protection | Yes | ||||||||
| Fanless | No Noise | ||||||||
| Short Circuit Protection | Yes | ||||||||
| Line Regulation | 5% | ||||||||
| Load Regulation | 5% | ||||||||
| Switching Mode | Universal switching-mode power adapter for notebooks and LCDs | ||||||||
| Special Connectors |
15 Pieces Tip Connectors Including 7.4*5.0mm & 4.5*3.0mm with pin for Dell/HP, New USB Connector for Lenovo. |
||||||||
| Efficiency | 87% (TYP) | ||||||||
| Unit Size | 4.33"(W) x 2.12"(D) x 0.98"(H) | ||||||||
| Net Weight | 8 oz | ||||||||
| Package Contents |
Prudent way (PWI-AC75NE) 75W AC Netbooks. Laptops and LCDs Power Adapter 15 Tips Connectors User Manuals |
||||||||
| Limited Warranty | One year | ||||||||
| OUTPUT | |||||||||
| Output Voltage | 10V | 12V | 15V | 16V | 18V | 19V | 20V | DC10V-20V | |
| USB Port | 5V | ||||||||
| Output Current | 10V | 12V | 15V | 16V | 18V | @ 4.2Amp (max) | |||
| Output Current | 19V | 20V | @ 3.75Amp (max) | ||||||
| USB Port | 5V | @ 5V 800MA | |||||||
| INPUT | |||||||||
| Input Voltage | AC120V | AC230V | |||||||
| Vibration Input Voltage | AC100V-240V | ||||||||
| Input Current | 1.2AMP | ||||||||
| Input Power | 85VA | ||||||||
| ENVIRONMENTAL | |||||||||
| Operating Temp. | 0°C to 40°C | ||||||||
| Humidity | 20% to 80% | ||||||||
| RoHS Compliant | Yes | ||||||||
