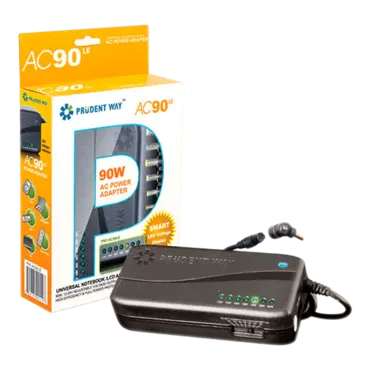

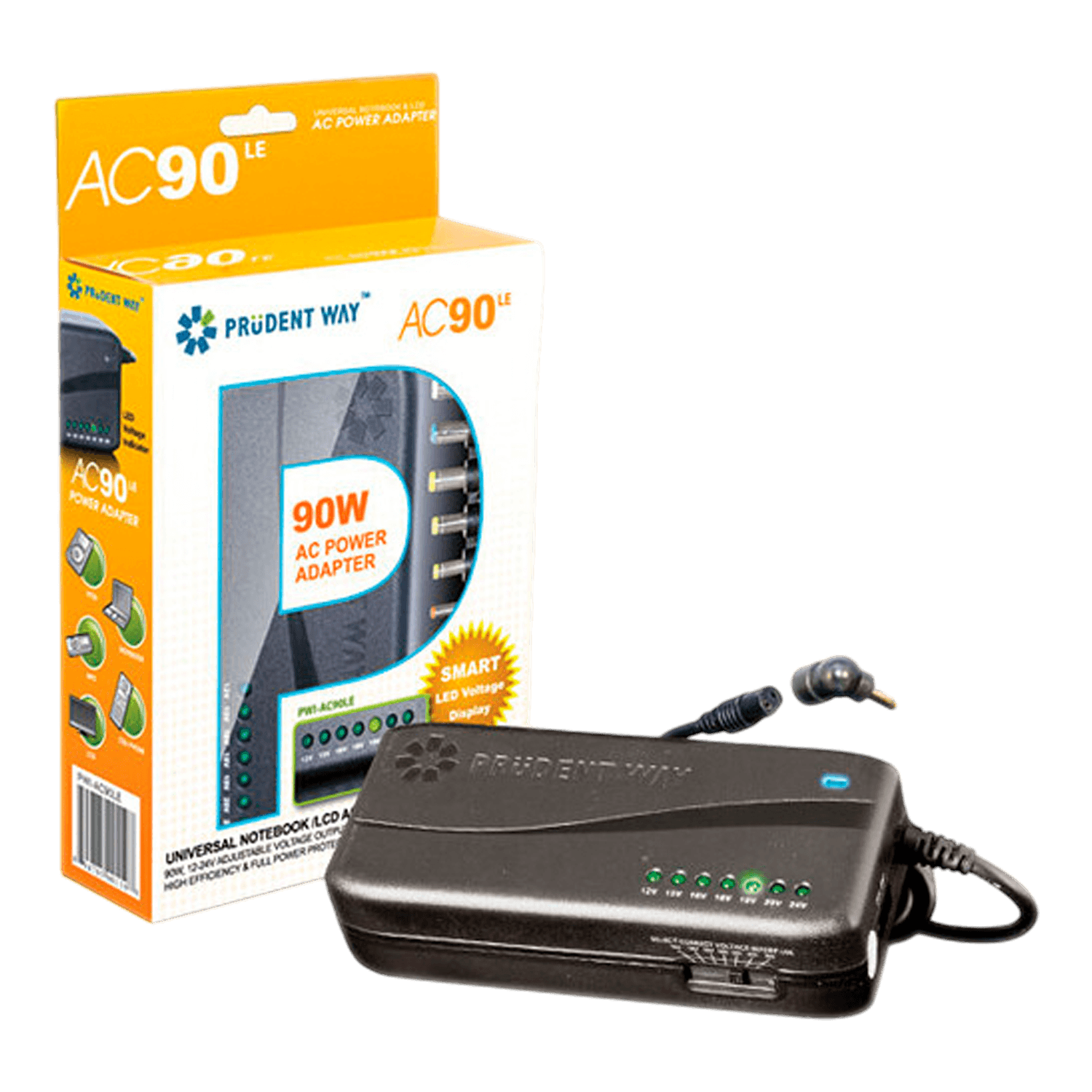

PWI-AC90LE, 90W, Universal AC/DC Notebook Adapter
- SKU: 3987311
- Manufacturer: PRUDENT WAY
- MPN: PWI-AC90LE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$36.78
| Output Power (Max.) | 90W | |||||||
| Overload Protection | Yes | |||||||
| Fanless | No noise | |||||||
| Short Circuit Protection | Yes | |||||||
| Line Regulation | ±5% | |||||||
| Load Regulation | ±5% | |||||||
| Switching Mode | Universal switching-mode power adapter for notebooks and LCDs | |||||||
| Special Connectors |
12 Pieces Tip Connectors Including 3-pin connector for Dell notebook*, 4pin TOSHIBA & IBM. |
|||||||
| Efficiency | > 80% (TYP) | |||||||
| Unit Size | 5.25"(W) x 2.4"(D) x 1.5"(H) | |||||||
| Net Weight | 1 lb | |||||||
| Package Contents |
Prudent way (PWI-AC90LE) 90W AC Notebooks and LCDs Power Adapter 12 Tips Connectors User Manuals |
|||||||
| Limited Warranty | One year | |||||||
| OUTPUT | ||||||||
| Output Voltage | 12V | 15V | 16V | 18V | 19V | 20V | 24V | DC12V-24V |
| USB Port | 5V | |||||||
| Output Current | 12V | 15V | 16V | 18V | 19V | 20V | @ 4.5 Amp (max) | |
| Output Current | 24V | @ 3.75 Amp (max) | ||||||
| USB Port | 5V | @ 2 Amp | ||||||
| INPUT | ||||||||
| Input Voltage | AC120V | AC230V | ||||||
| Vibration Input Voltage | AC100V-240V | |||||||
| Input Current | 1.8 Amp | |||||||
| Input Power | 17ms max. | |||||||
| ENVIRONMENTAL | ||||||||
| Operating Temp. | 0 to 40°C | |||||||
| Humidity | 20% to 80% | |||||||
| RoHS Compliant | Yes | |||||||
