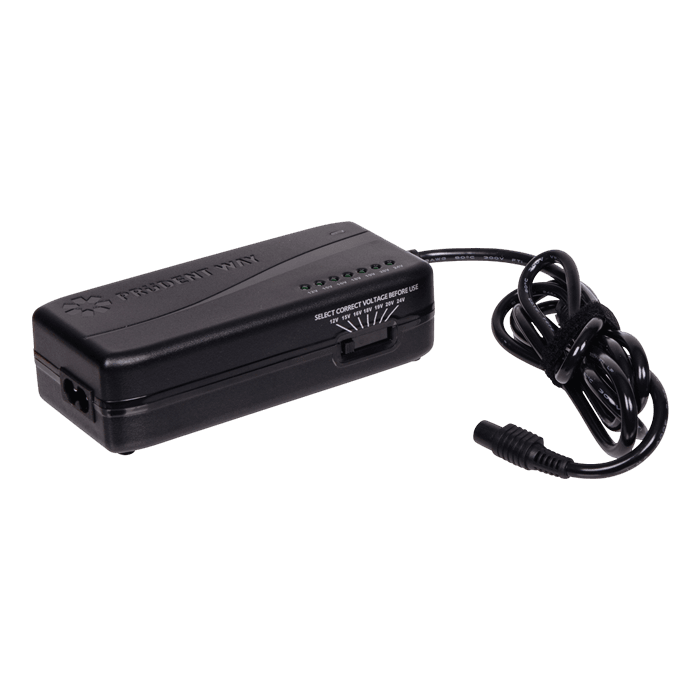

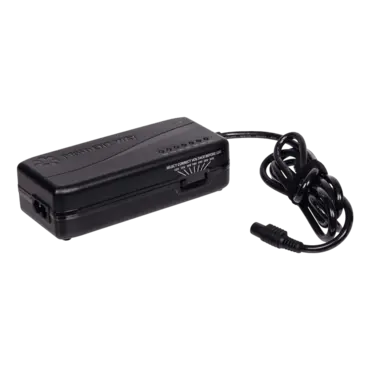

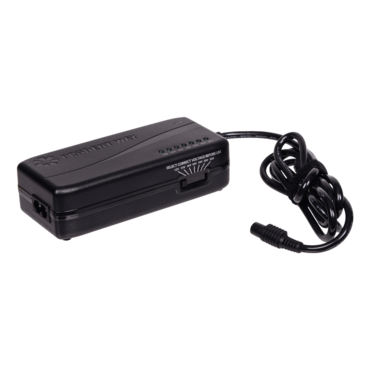

PWI-AC90LE Universal AC/DC Adapter, 12V-24V Output Selector, 90W, 12 Tips, USB
PWI-AC90LE Universal AC/DC Adapter, 12V-24V Output Selector, 90W, 12 Tips, USB
Features:
- 100-240V AC input provides worldwide power conversion capability.
- Adjustable 12-24V output design fits specific notebook models and LCDs needs.
- 12 pieces of tip connector for use with most major LCD and notebook brands such as IBM, Dell, Toshiba, Compaq, Asus, Acer, HP, Sony and More.
- Extra USB port built in for iPODs, PDAs, Cell Phones, MP3 Players and more*.
- RoHS compliancy is friendly to environment.
- High efficiency & full power protection.
- Digital LED Light
Specifications:
Features |
Output Power (Max.) |
90W |
Overload Protection |
Yes |
Fanless |
No noise |
Short Circuit Protection |
Yes |
Line Regulation |
±5% |
Load Regulation |
±5% |
Switching Mode |
Universal switching-mode power adapter for notebooks and LCDs |
Special Connectors |
12 Pieces Tip Connectors
Including 3-pin connector for Dell notebook*, 4pin TOSHIBA & IBM. |
Efficiency |
> 80% (TYP) |
Unit Size |
5.25"(W) x 2.4"(D) x 1.5"(H) |
Net Weight |
1 lb |
Package Contents |
Prudent way (PWI-AC90LE) 90W AC Notebooks and LCDs Power Adapter
12 Tips Connectors
User Manuals |
Limited Warranty |
One year |
OUTPUT |
Output Voltage |
12V |
15V |
16V |
18V |
19V |
20V |
24V |
DC12V-24V |
USB Port |
5V |
|
Output Current |
12V |
15V |
16V |
18V |
19V |
20V |
|
@ 4.5 Amp (max) |
Output Current |
|
|
|
|
|
|
24V |
@ 3.75 Amp (max) |
USB Port |
5V |
@ 2 Amp |
INPUT |
Input Voltage |
AC120V |
AC230V |
Vibration Input Voltage |
AC100V-240V |
Input Current |
1.8 Amp |
Input Power |
17ms max. |
ENVIRONMENTAL |
Operating Temp. |
0 to 40°C |
Humidity |
20% to 80% |
RoHS Compliant |
Yes |
|
