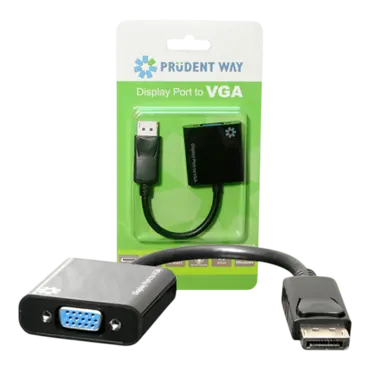

PWI-DP-VGA, DisplayPort to VGA Adapter Converter Cable
- SKU: 19474993
- Manufacturer: PRUDENT WAY
- MPN: PWI-DP-VGA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$18.38
| PRODUCT SPECIFICATION |
| Input: DisplayPort Male, Output: VGA Female. |
| Chipset: ANX9832. |
| DisplayPort Interoperability specification V1.1a compliant receiver offering 1.62 and 2.7Gbps over 4 lanes. |
| Max Resolution: 1920 x1200 1080P @60Hz. Video Amplifier Bandwidth at 162 MHz. |
| ESD protect Mode: Human Body /8 kV, Machine/400V, and Charged Device/2 kV. |
| EDID pass-through from PC source to display; Spread Spectrum for EMI reduction. |
| PC Support: VGA, SVGA, XGA, SXGA, UXGA, WUXGA. |
| HDTV Support: 480i, 576i, 480p, 576p, 1080i and 1080p. |
| Low power operation-Active@400mW, standby@33mW. Power from Displayport. |
| UL 20276 32AWG, OD5. 5mm, Jacket PVC Black. Nickel Plated, Length: 20cm (7.9?). |
| RoHS, FCC & CE compliant. |
