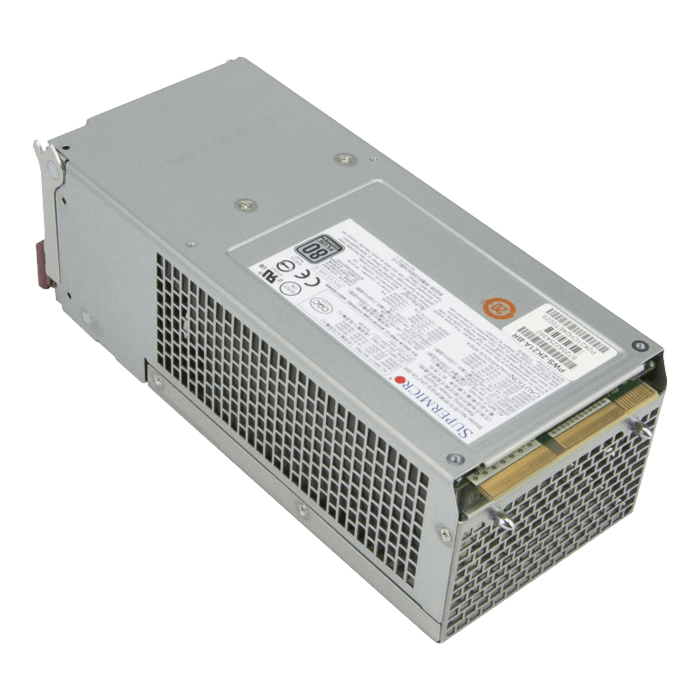

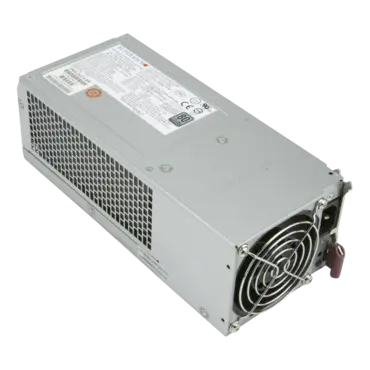

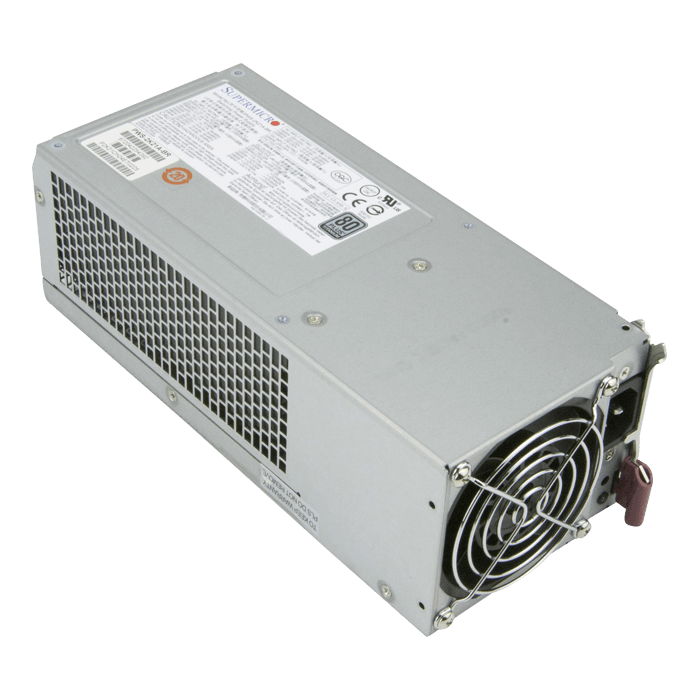

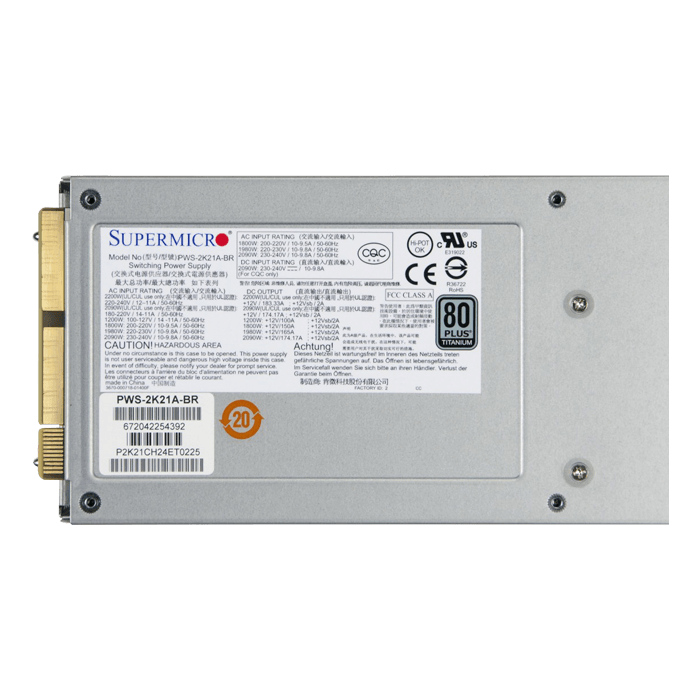

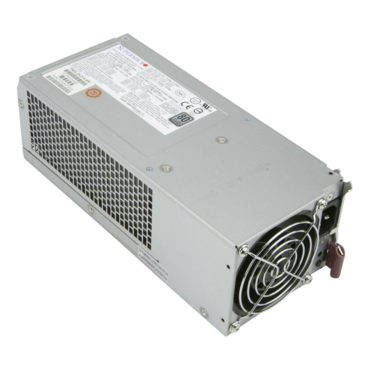

PWS-2K21A-BR Spare SuperBlade 2200W Redundant Power Module

SKU: 12192870

Manufacturer: SUPERMICRO

MPN: PWS-2K21A-BR

Availability: Special Order


Price: $420.32
or as low as $14/month
Quantity:
Total Power Output 1200W / 1800W / 1980W / 2090W / 2200W
Type Redundant
Type of Power Supply Power Supply
Form Factor Blade
Dimension (W x H x L) 106.5 x 84 x 245.3 mm
+5V N/A
+12V 1200W: 100A 1980W: 165A 2000W: 166.6A 2090W: 174.17A 2200W: 183.33A
+3.3V N/A
5V Standby N/A
Input Voltage Range 1200W: 100-127Vac 1800W: 200-220Vac 1980W: 220-230Vac 2090W: 230-240Vac (TUV/CB) 2200W: 220-240Vac (WL/cUL only) 2090W: 180-220Vac (UL/cUL only) 2090W: 230-240Vdc (CCC only)
Input Frequency Range 50-60Hz
Input Current Range 100-127Vac: 12-9.5A 200-220Vac: 10-9.5A 220-230Vac: 10-9.5A 230-240Vac: 10-9.8A 220-240Vac: 11.8-9.6A UL,cUL only)
Output Type Gold Finger
8Pin / 4Pin (12V) Connector N/A
PFC Yes
PMBus Yes
Energy Efficiency 96% @ 230Vac, 50% loading
80 Plus Certification 80 Plus Titanium
Warranty 1 year warranty
Product Environmental Compliance RoHS and REACH compliant, details available upon request
