| Technical Spec | |

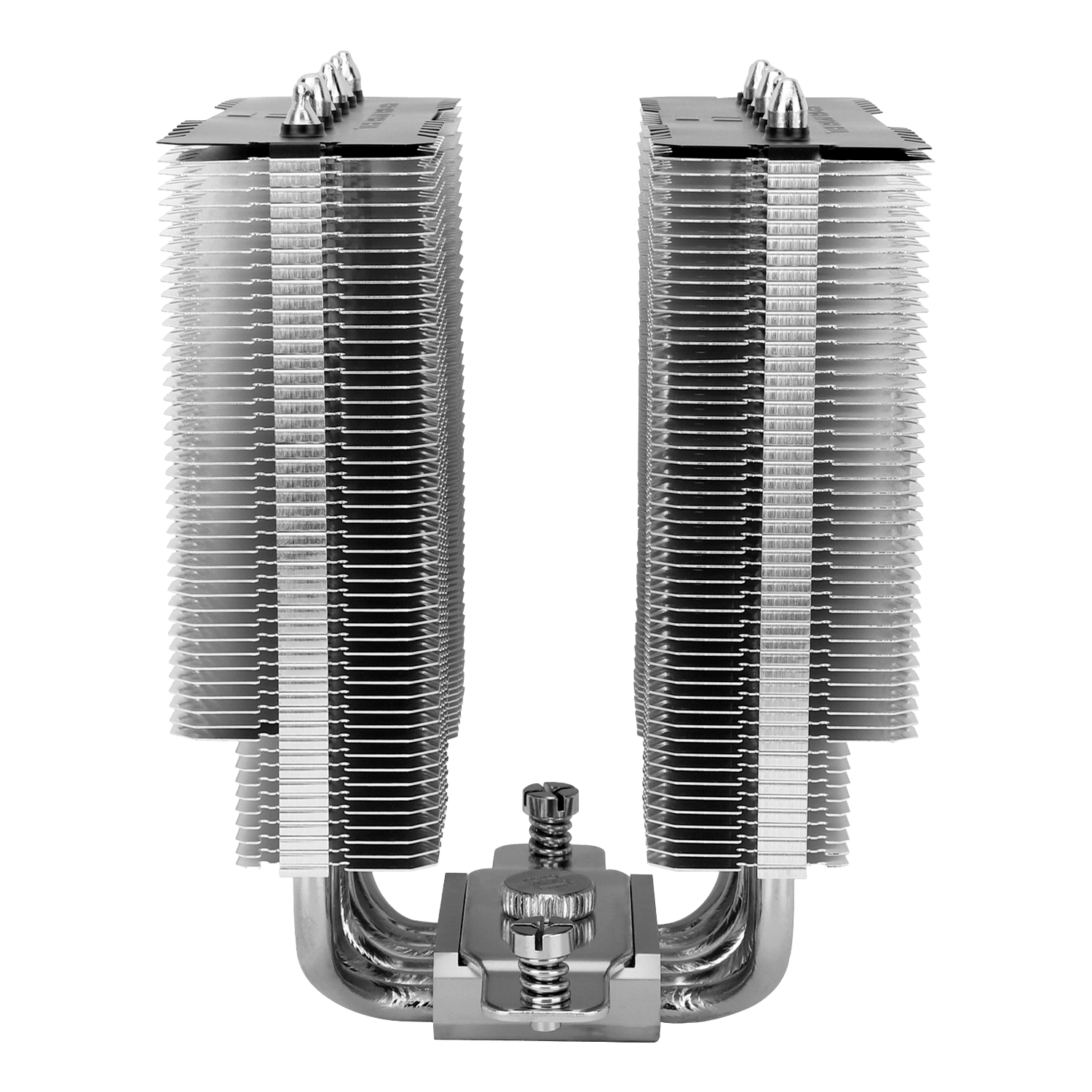

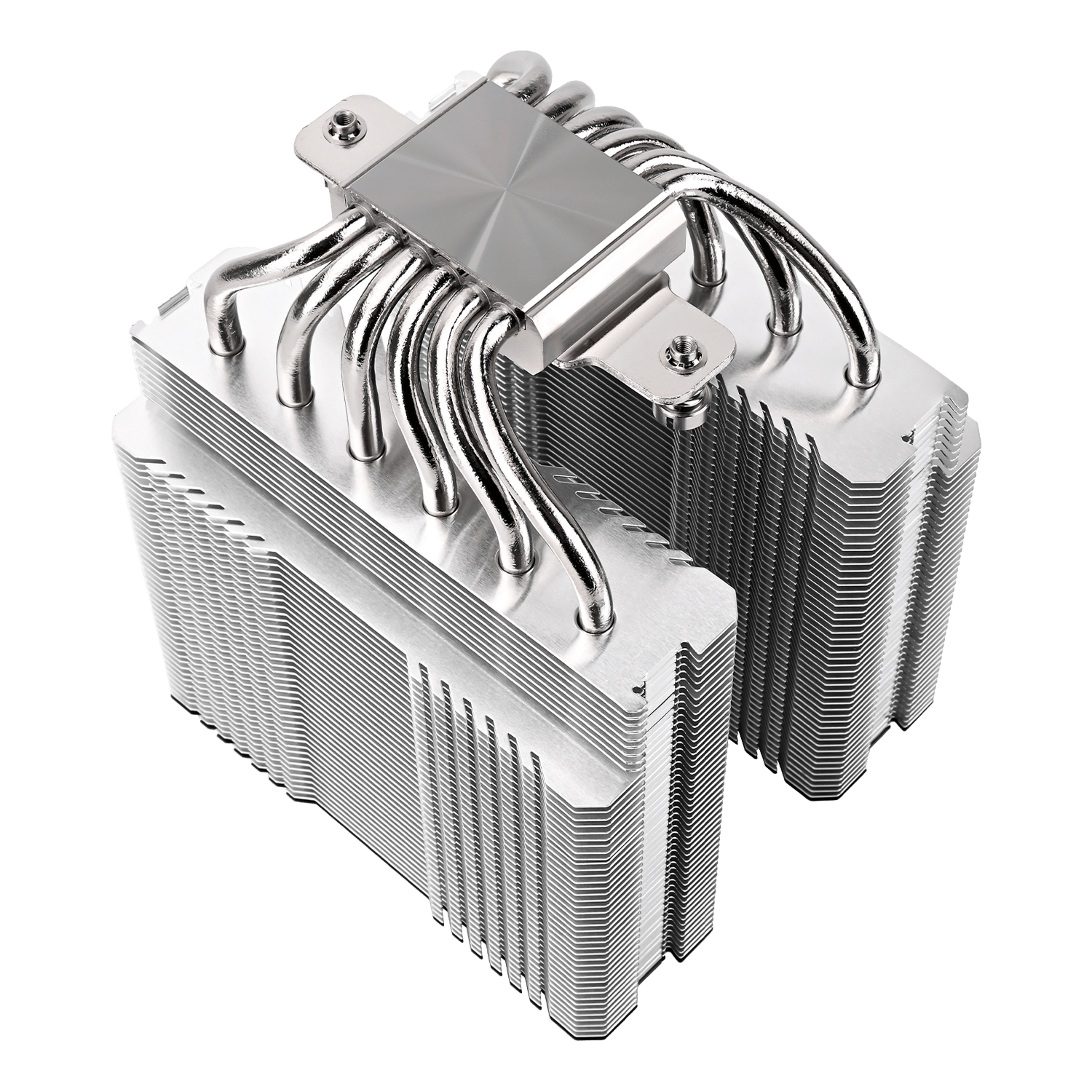

| Heatsink Specifications: | Dimension:L125 mm x W110 mm x H155 mm(Without Fan) |
| Heat pipes | 6mm heatpipe x 6 units |
| Copper Base | C1100 Pure copper nickel plated |

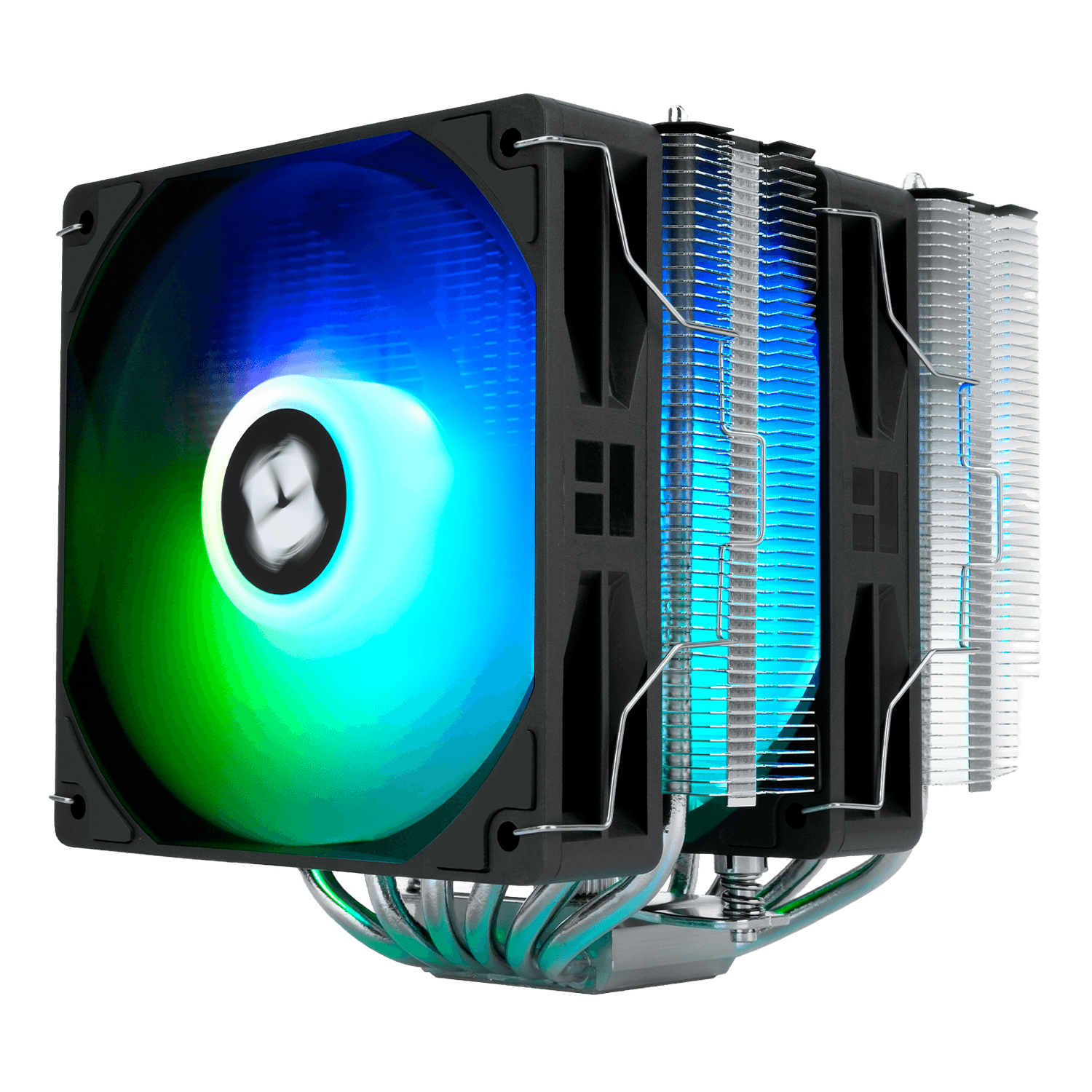

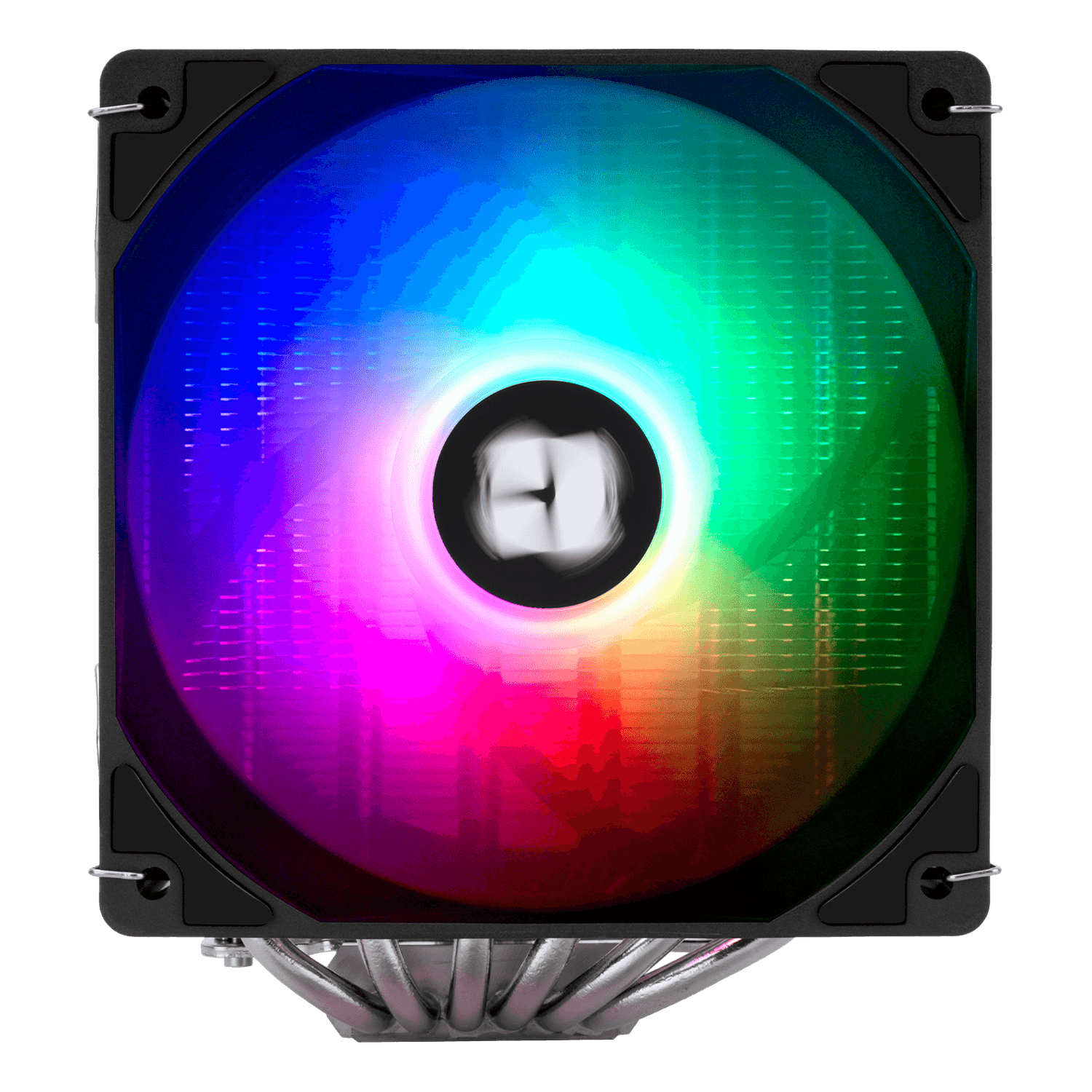

| TL-C12C-X28-S V2 FAN Spec | |
| Dimension | L120 mm x W120 mm x H28 mm |
| Rated Speed | 1850 RPM±10% (MAX) |
| Noise Level | 29.5 dBA |
| Air Flow | 88.89 CFM (MAX) |
| Air Pressure | 2.21 mm H2O (MAX) |
| Ampere | 0.30 A |
| Connector | 4 Pin (PWM Fan connector) |
| ARGB Connector | 3 PIN 5V |
| Bearing Type | S-FDB Bearing |
