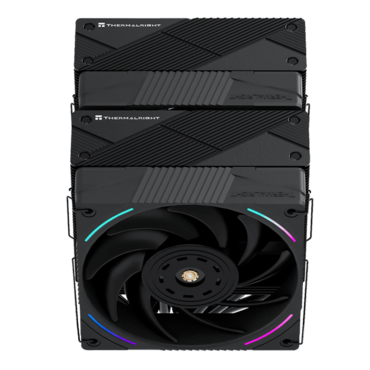

| Heatsink Specifications | |
| Dimension | L110 mm x W125 mm x H157 mm |
| Weight | 810g(Without Fan) |
| Heat pipes | 6mm heatpipe x 7 units |
| Copper Base | C1100 Pure copper nickel plated |
| TL-K12 FAN Spec | |
| Dimension | L120 mm x W120 mm x H25 mm |
| Weight | 220g |
| Rated Speed | 2150 RPM±10% (MAX) |
| Noise Level | 27 dBA |
| Air Flow | 69 CFM (MAX) |
| Air Pressure | 2.87 mm H2O (MAX) |
| Ampere | 0.16 A |
| Connector | 4 Pin (PWM Fan connector) |
| ARGB Connector | 3 PIN 5V |
| Bearing Type | S-FDB V2 Bearing |
