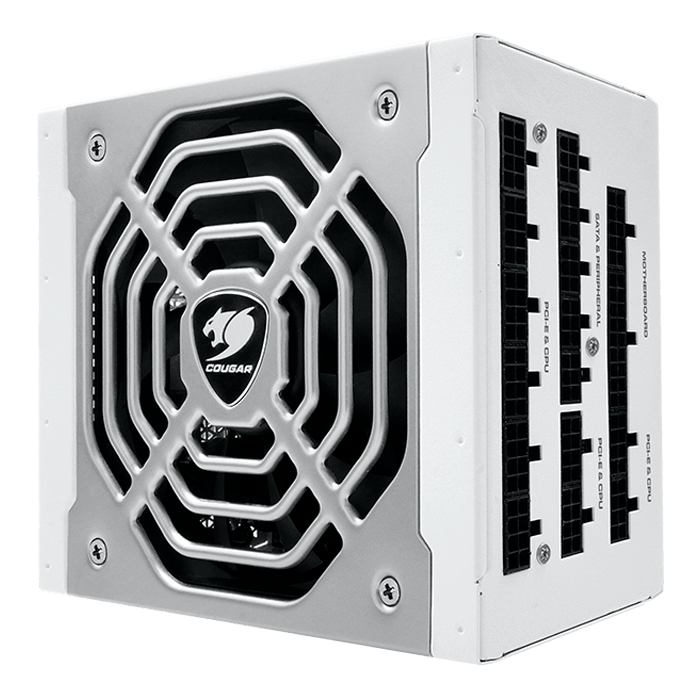

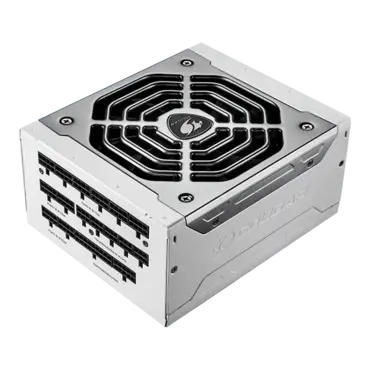

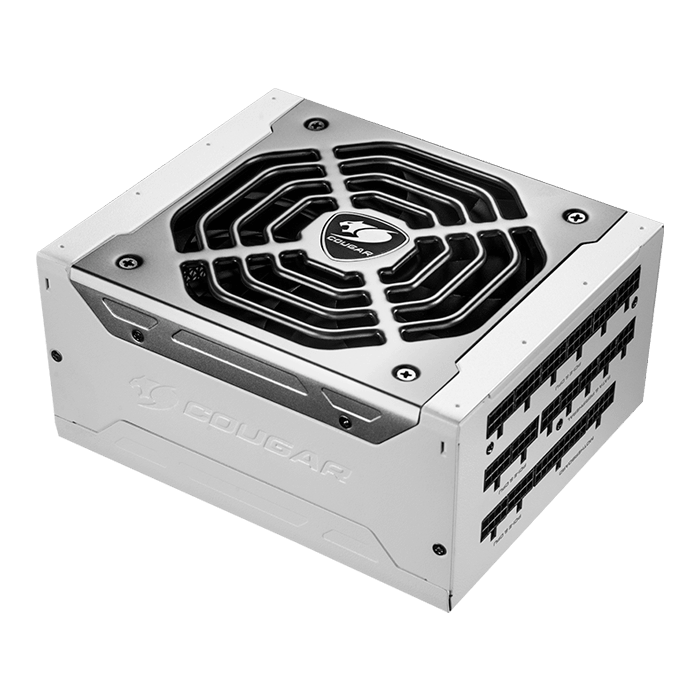

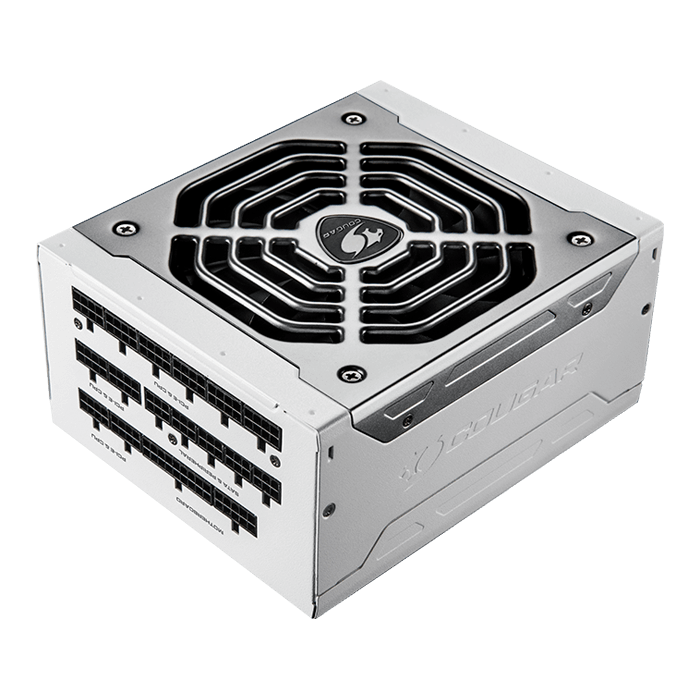

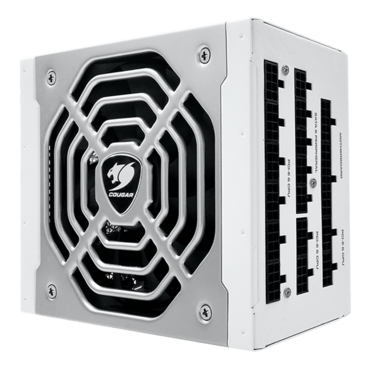

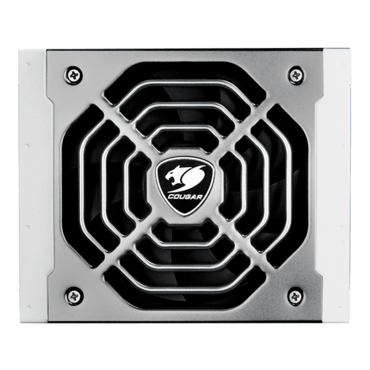

Polar 1200, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply

  • SKU: 15702009
  • Manufacturer: COUGAR
  • MPN: CGR PR-1200
Starting At
Polar 1200, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply

COUGAR will present the first Platinum efficiency PSU Series, POLAR. The 100% Japanese capacitors and 50°C ambient operations with LLC, DC-DC structure generate an environmentally friendly PSU with high-efficiency performance. The fine-tune HDB fan with zero noise mode will also provide the perfect experience for all users in different conditions.

  • 80PLUS Platinum Certified
    Up to 92% efficiency power conversion to cut down your electricity bill
  • 100% Refined Japanese Capacitors
    Outstanding components extend the longevity of PSU.

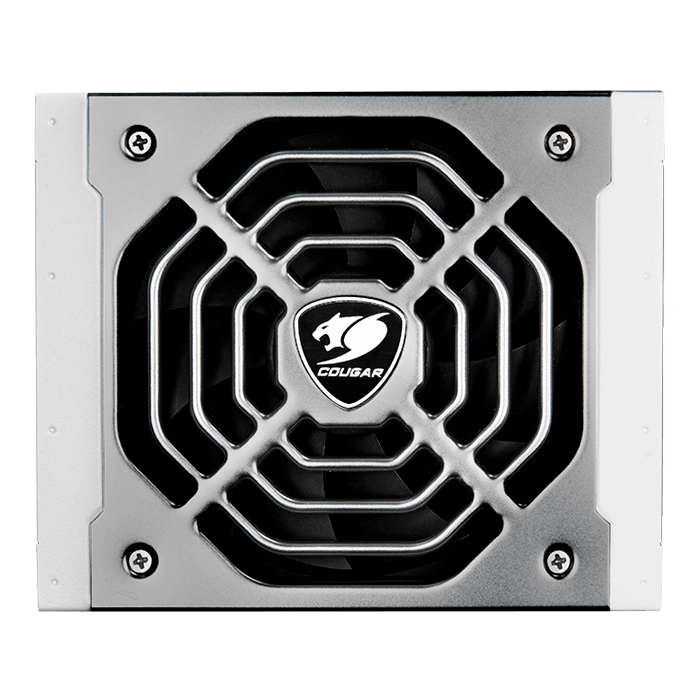

  • Durable HDB Fan
    Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
  • Zero Noise Mode and Fan Curve Tuning
    Advanced technology for noise minimization
  • Fully Modular Power Supply Unit
    Connect only the cables you need for less clutter and better airflow
  • Flawless Operation at 50°C
    Powerful performance at 50°C ambient temperature
  • Compatible with The Lastest PC Technology
    Created for user with current and next-generation multi-core CPU platforms
  • Support PCI Express 4.0 Next Generation Graphics Cards with 8(6+2) Pin PCI-E Connector
Model POLAR1200
Product Number (P/N) 31PL120001P01
Model Number CGR PR-1200
EAN CODE 4710483772351
UPC CODE 192554003344
JAN CODE 4541995035814
Individual W/O Packaging Weight (N.Weight) 2.09 (Kg)
Individual Packaging Weight (G.Weight) 3.59 (Kg)
Individual Size W/O Packaging (LxWxH) 180 x 150 x 86 (mm)
Individual Packaging Size (LxWxH) 331 X 229 x 107 (mm)
Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
POLAR1200 AC100-240V~
47-63Hz 15-7A
20A 20A 100A 0.3A 3A 1200W
100W 1200W 3.6W 15W
Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins 8 Pins 4 Pins 5 Pins 8(6+2) Pins
POLAR1200 1 1 1 4 12 9
