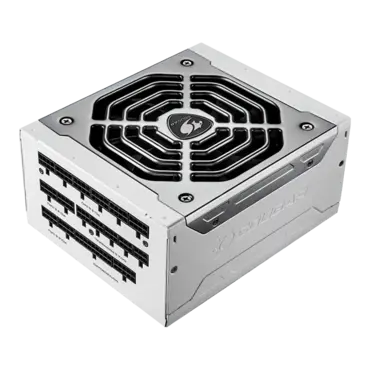

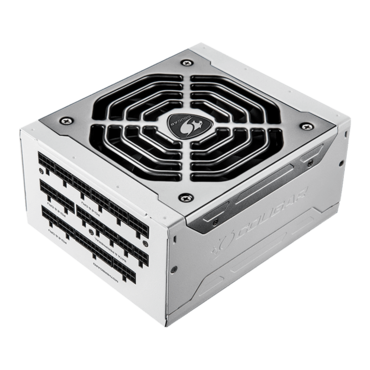

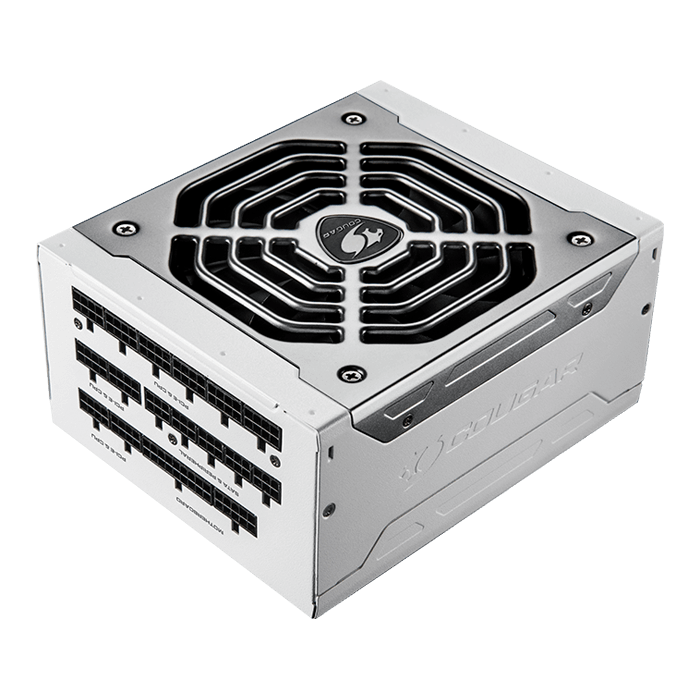

Polar 1200, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15702009
- Manufacturer: COUGAR
- MPN: CGR PR-1200
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$275.99
Polar 1200, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
COUGAR will present the first Platinum efficiency PSU Series, POLAR. The 100% Japanese capacitors and 50°C ambient operations with LLC, DC-DC structure generate an environmentally friendly PSU with high-efficiency performance. The fine-tune HDB fan with zero noise mode will also provide the perfect experience for all users in different conditions.
-
80PLUS Platinum Certified
Up to 92% efficiency power conversion to cut down your electricity bill -
100% Refined Japanese Capacitors
Outstanding components extend the longevity of PSU. -

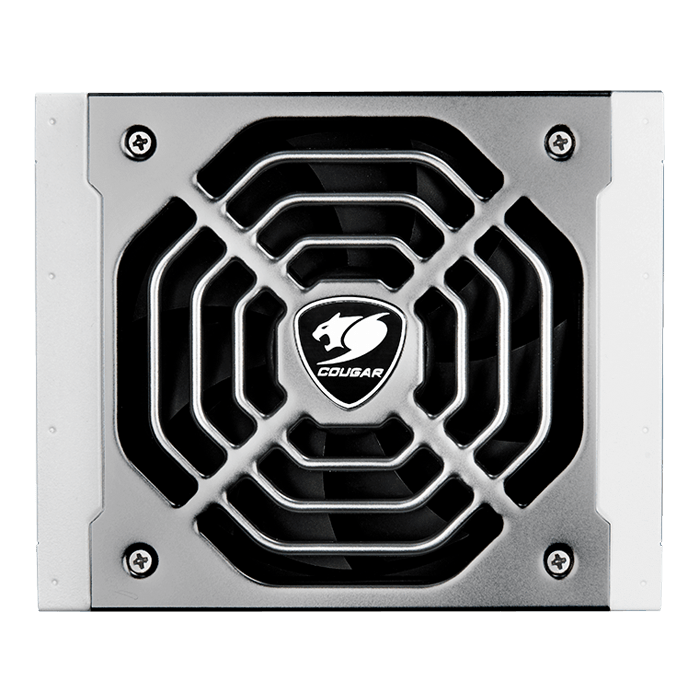

Durable HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels -
Zero Noise Mode and Fan Curve Tuning
Advanced technology for noise minimization -
Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow -
Flawless Operation at 50°C
Powerful performance at 50°C ambient temperature -
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms - Support PCI Express 4.0 Next Generation Graphics Cards with 8(6+2) Pin PCI-E Connector
| Model | POLAR1200 | |||||||
| Product Number (P/N) | 31PL120001P01 | |||||||
| Model Number | CGR PR-1200 | |||||||
| EAN CODE | 4710483772351 | |||||||
| UPC CODE | 192554003344 | |||||||
| JAN CODE | 4541995035814 | |||||||
| Individual W/O Packaging Weight (N.Weight) | 2.09 (Kg) | |||||||
| Individual Packaging Weight (G.Weight) | 3.59 (Kg) | |||||||
| Individual Size W/O Packaging (LxWxH) | 180 x 150 x 86 (mm) | |||||||
| Individual Packaging Size (LxWxH) | 331 X 229 x 107 (mm) | |||||||
| Model Name | AC Input | DC output | ||||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | |||
| POLAR1200 |
AC100-240V~ 47-63Hz 15-7A |
20A | 20A | 100A | 0.3A | 3A | 1200W | |
| 100W | 1200W | 3.6W | 15W | |||||
| Connector | Main | CPU | Peripherals | S-ATA | PCI-E | |||
| Pin | 24(20+4) Pins | 8(4+4) Pins | 8 Pins | 4 Pins | 5 Pins | 8(6+2) Pins | ||
| POLAR1200 | 1 | 1 | 1 | 4 | 12 | 9 | ||
