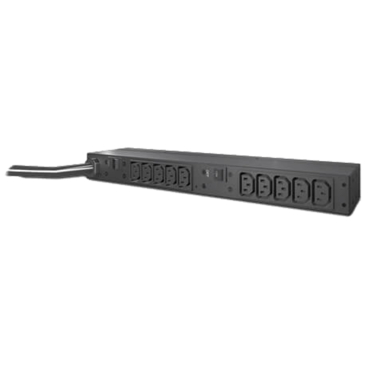

Power Distribution Unit, Basic 1U Rack Power Strip, 1x NEMA L6-30P, 10x C13, 200-230V AC, 50/60Hz, 24A, 12-feet, Black
- SKU: 3069046
- Manufacturer: APC
- MPN: AP9571A
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$358.74
Power Distribution Unit, Basic 1U Rack Power Strip, 1x NEMA L6-30P, 10x C13, 200-230V AC, 50/60Hz, 24A, 12-feet, Black
APC Basic Rack 10-Outlets 4.99 kVA PDU provide reliable power distribution via a single input with multiple output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions.
| Power Supply | |
|---|---|
| Device Output Connector Type: | Power IEC 320 EN 60320 C13 |
| Cable | |
| Connectivity Details Length: | 12 ft |
| Connectivity Details Type: | Power cable |
| Environmental Parameters | |
| Humidity Range Operating: | 5 - 95% |
| Max Operating Temperature: | 113 °F |
| Min Operating Temperature: | 5 °F |
| Header | |
| Brand: | APC |
| Compatibility: | PC |
| Manufacturer: | APC |
| Packaged Quantity: | 1 |
| Product Line: | APC Basic Rack PDU |
| Interface Provided | |
| Type: | None |
| Miscellaneous | |
| Color: | Black |
| Color Category: | Black |
| Compliant Standards: | CSA , cUL , RoHS , UL , UL 60950 |
| Height (Rack Units): | 1 |
| Rack Mounting Kit: | Included |
| Power Device | |
| Circuit Protection: | Circuit breaker |
| Cord Length: | 12 ft |
| Form Factor: | Rack-mountable |
| Frequency Required: | 50/60 Hz |
| Input Connector Qty: | 1 |
| Input Connector Type: | Power NEMA L6-30 |
| Input Voltage Range: | AC 200 - 240 V |
| Max Electric Current: | 24 A |
| Output Connector Qty: | 10 , 12 |
| Power Device Features: | Overload protection |
| Voltage Provided: | AC 208 V |
| Voltage Required: | AC 200/208/230 V |
| Power Output Connectors Details | |
| Connector Qty: | 12 |
| Connector Type: | Power IEC 320 EN 60320 C13 |
| Service | |
| Support Details Full Contract Period: | 2 years |
| Support Details Type: | Limited warranty |
| Slot Provided | |
| Type: | None |
| Dimensions & Weight | |
| Depth: | 3 in |
| Height: | 1.7 in |
| Weight: | 5.73 lbs |
| Width: | 17.5 in |
| General | |
| Product Type: | Power distribution strip |
| Subcategory: | Power distribution devices |
| Service & Support | |
| Type: | 2 years warranty |
| Cable Details | |
| Form Factor: | Integrated |
| Included Qty: | 1 |
| Dimensions & Weight (Shipping) | |
| Shipping Depth: | 6.9 in |
| Shipping Height: | 6.7 in |
| Shipping Weight: | 7.9 lbs |
| Shipping Width: | 19 in |
