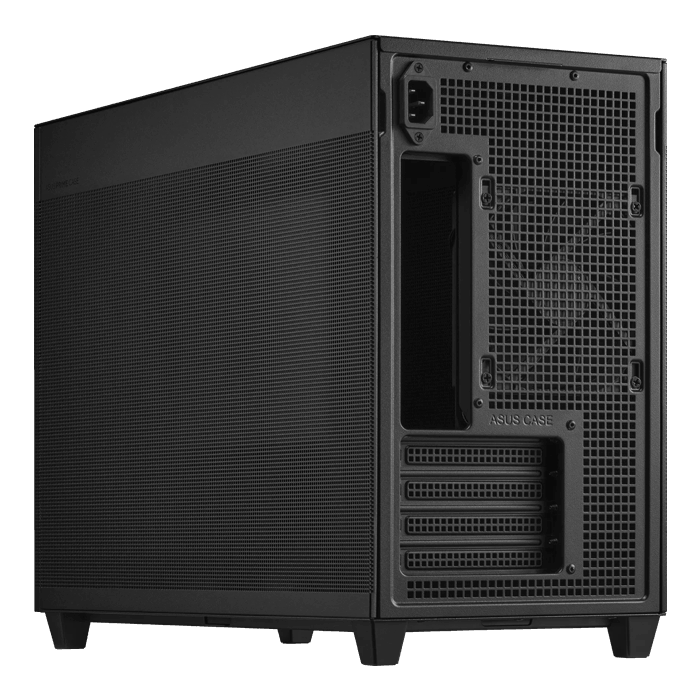

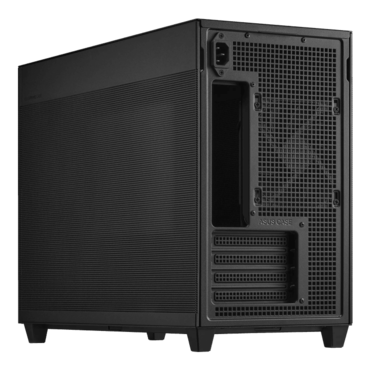

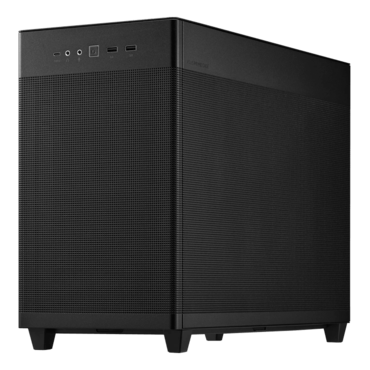

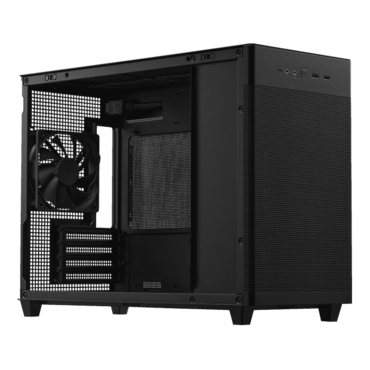

Prime AP201, Mesh Panel, No PSU, microATX, Black, Mini Tower Case

Quantity:
  • SKU: 15088306
  • Manufacturer: ASUS
  • MPN: AP201/BLK/MESH//
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$79.08
Quantity:
Prime AP201, Mesh Panel, No PSU, microATX, Black, Mini Tower Case

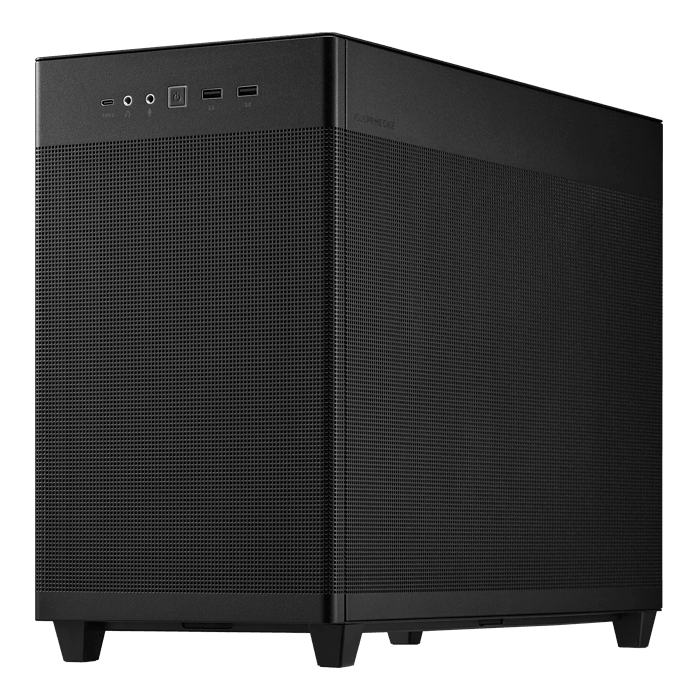

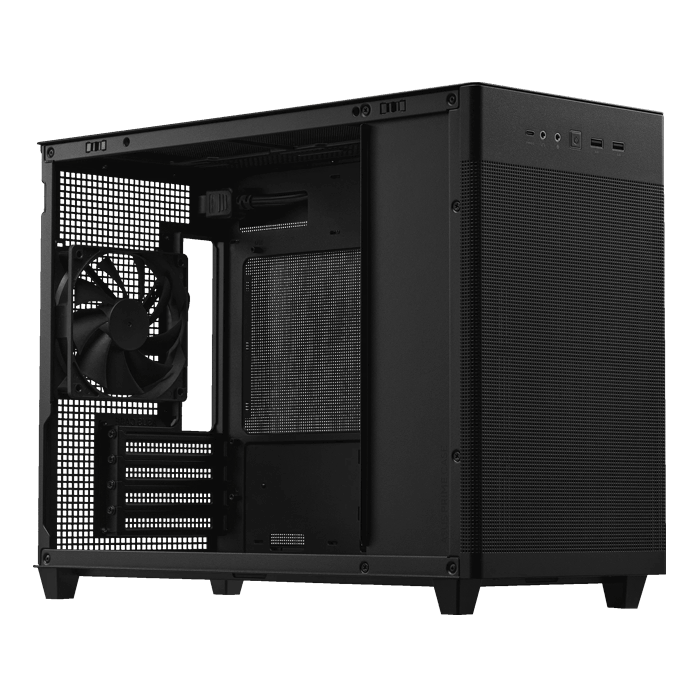

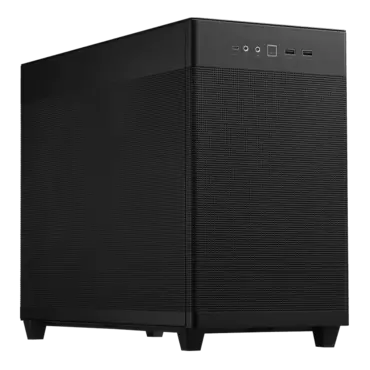

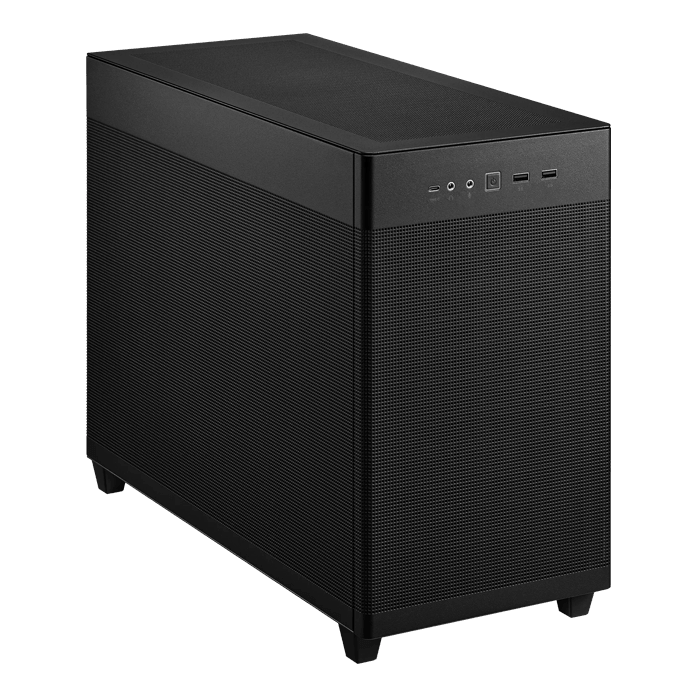

The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.

  • Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
  • Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
  • Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

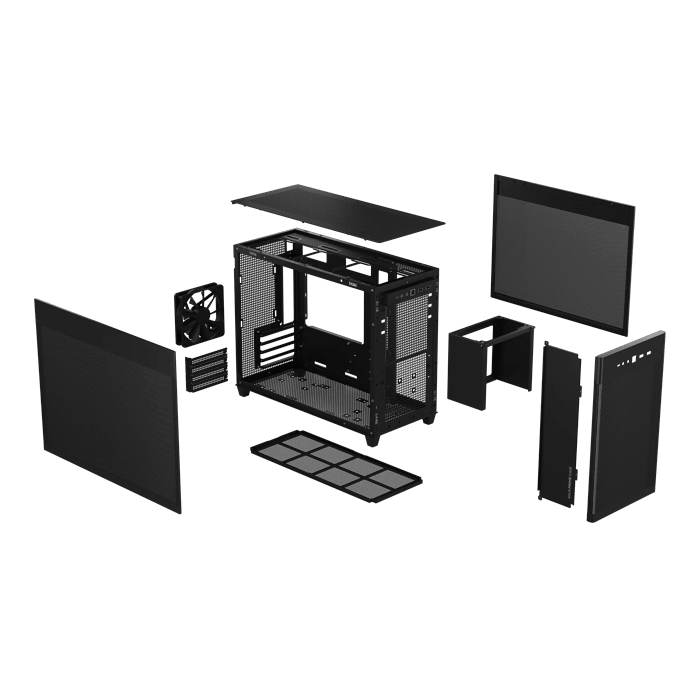

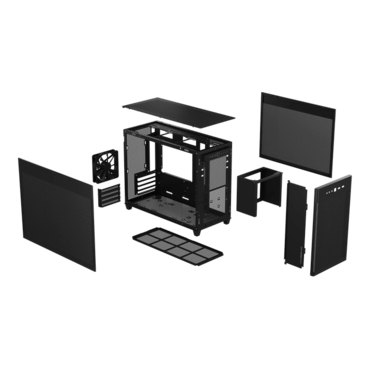

  • Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

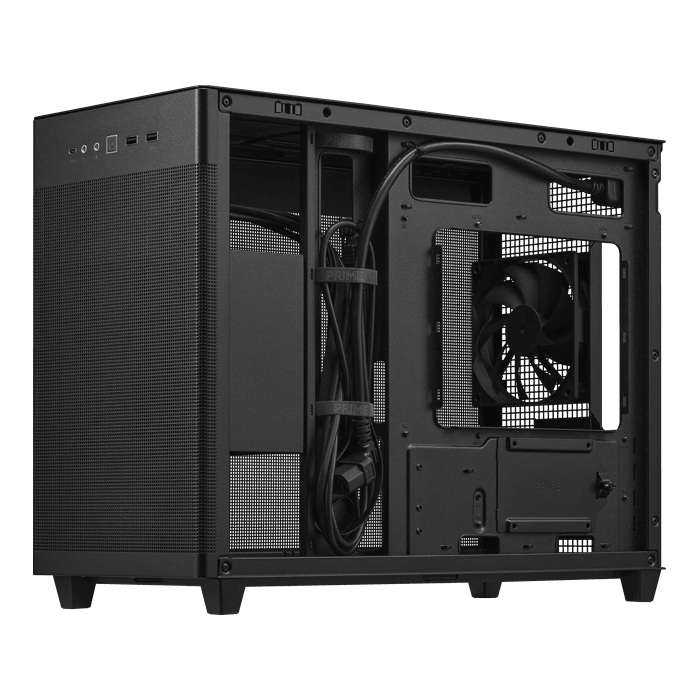

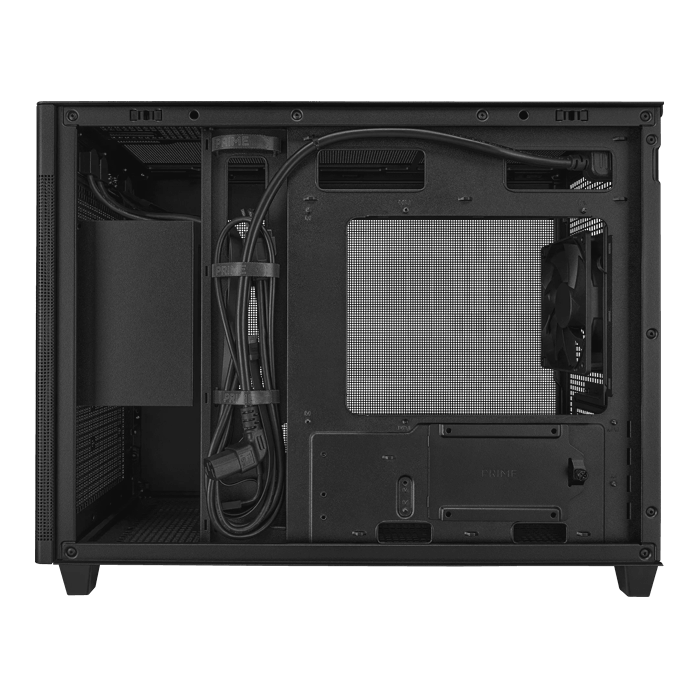

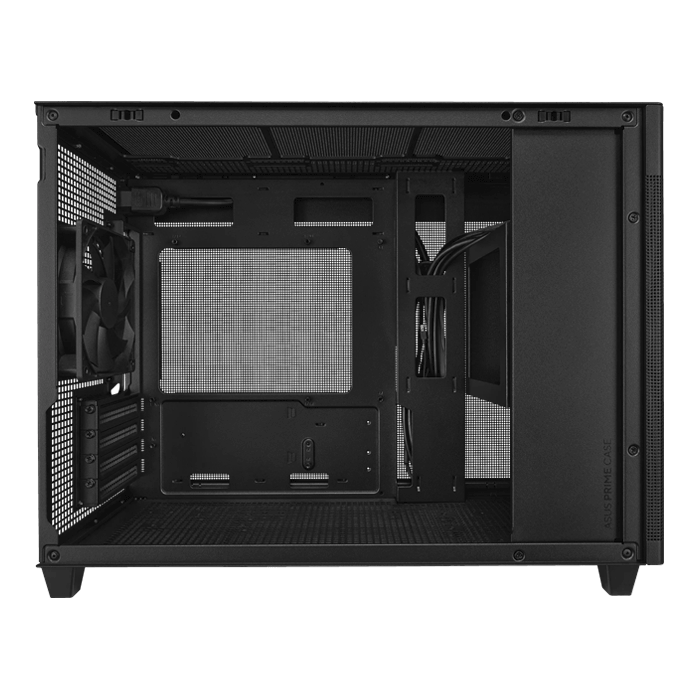

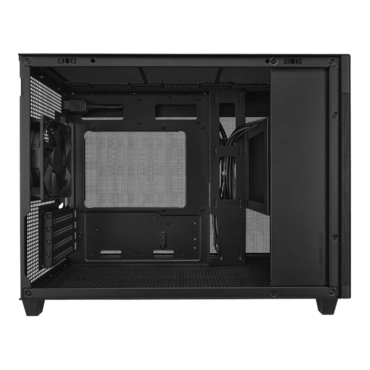

  • Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

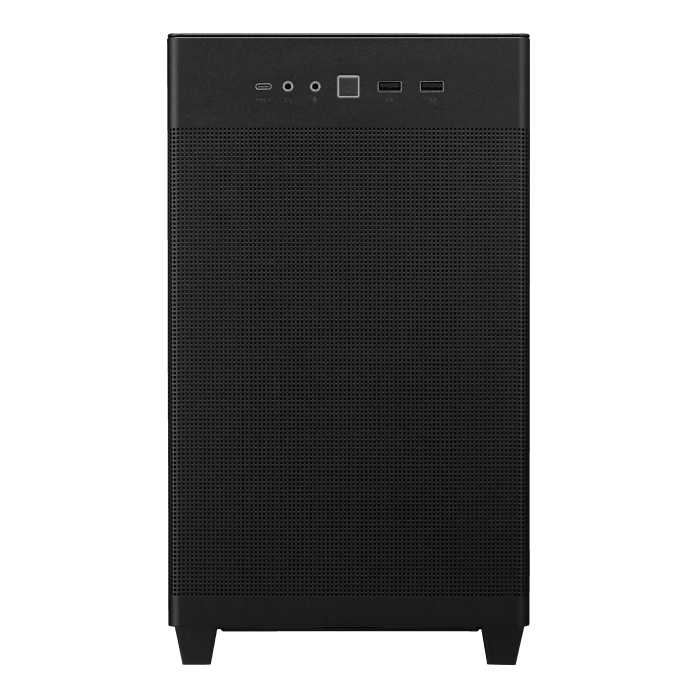

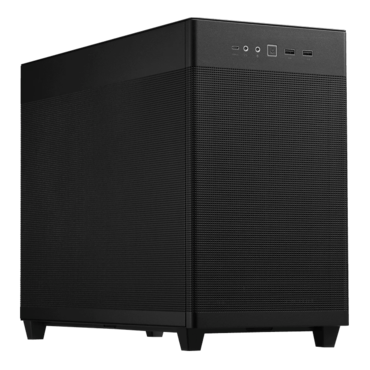

  • Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Case Size Small Tower
Motherboard Support Micro-ATX
Mini-ITX
Drive Bays 1 x 2.5" Bay
3 x 2.5"/3.5" Combo Bay
Expansion Slots 4

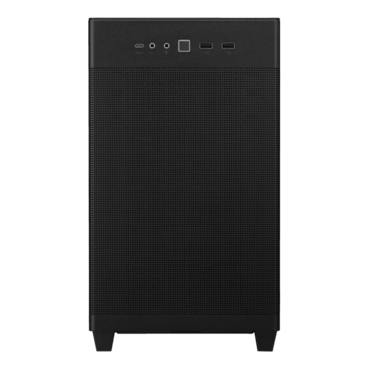

Front I/O Port 1 x Headphone
1 x Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C
Radiator Support (Top) 120 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear) 120 mm
Cooling Support (Top) 3 x 120 mm
2 x 140 mm
Cooling Support (Rear) 1 x 120 mm
Pre-installed Fans (Front) None
Pre-installed Fans (Rear) 1 x 120 mm
Maximum CPU Cooler Height 170 mm
Maximum GPU Length 338 mm
Maximum PSU Length 140-180 mm
Removable Dust Filters Bottom
Maximum Cable Management Space 32 mm
Dimensions 205 x 350 x 460 mm
Weight 5.8 Kg
