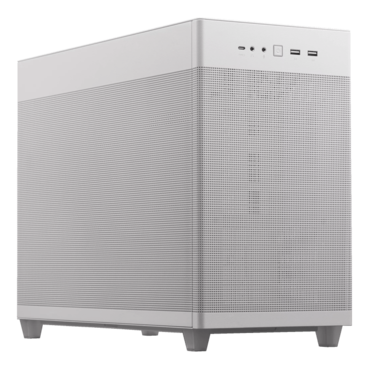

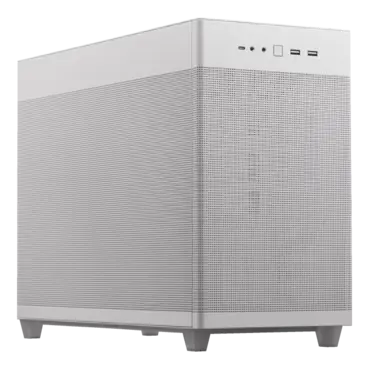

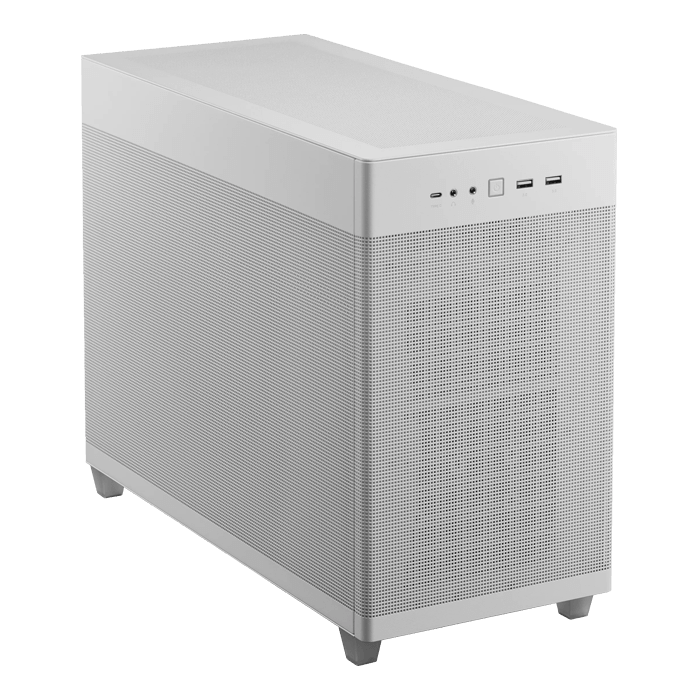

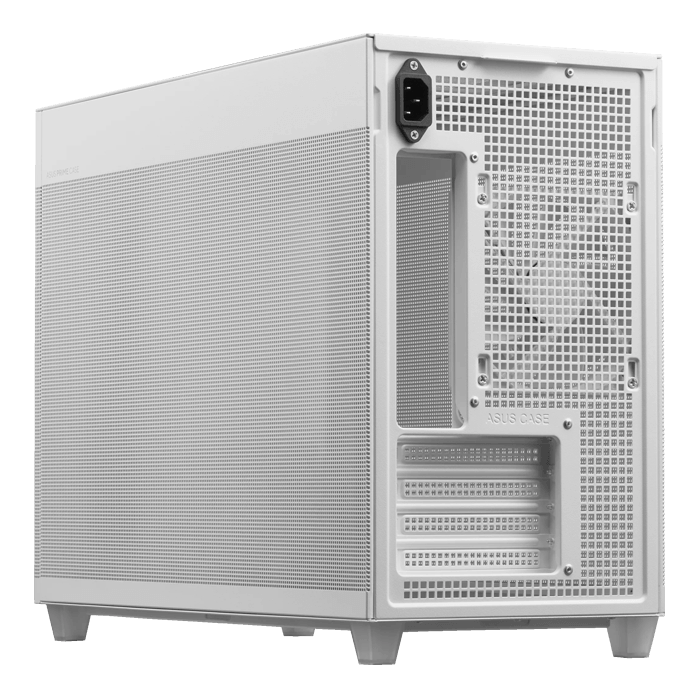

Prime AP201, Mesh Panel, No PSU, microATX, White, Mini Tower Case
Quantity:
- SKU: 15088298
- Manufacturer: ASUS
- MPN: AP201/WHT/MESH//
- Availability: CONTACT US
Starting At
$89.11
Prime AP201, Mesh Panel, No PSU, microATX, White, Mini Tower Case
The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.

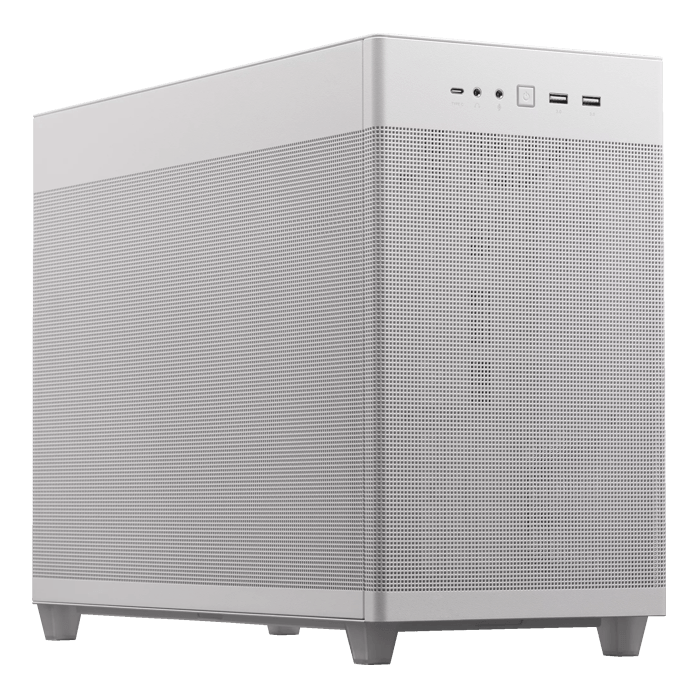

- Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

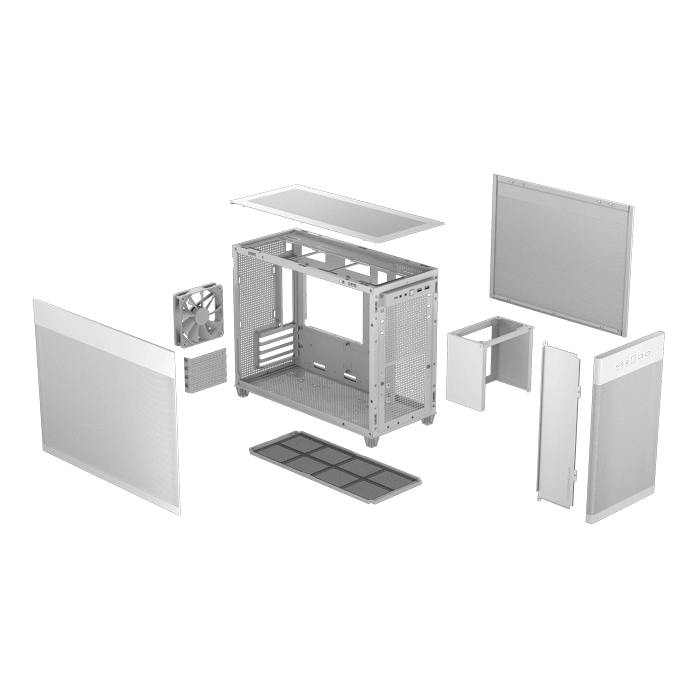

- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

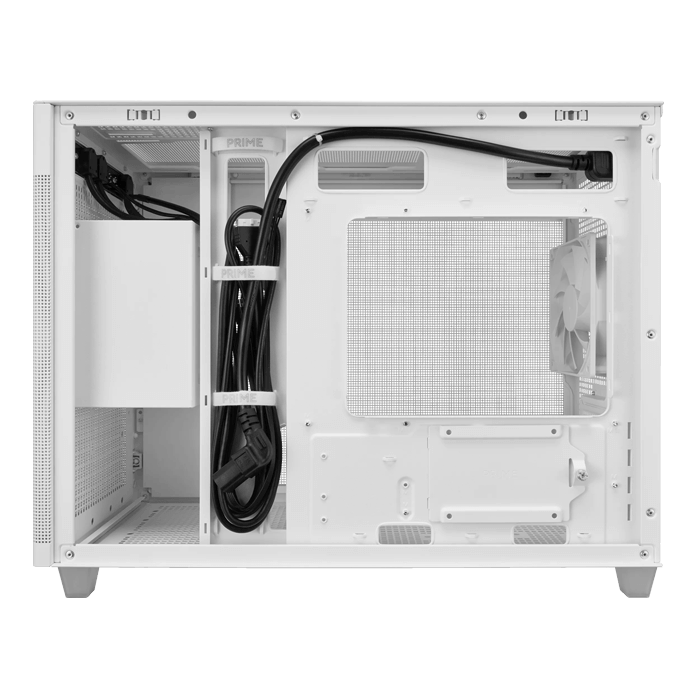

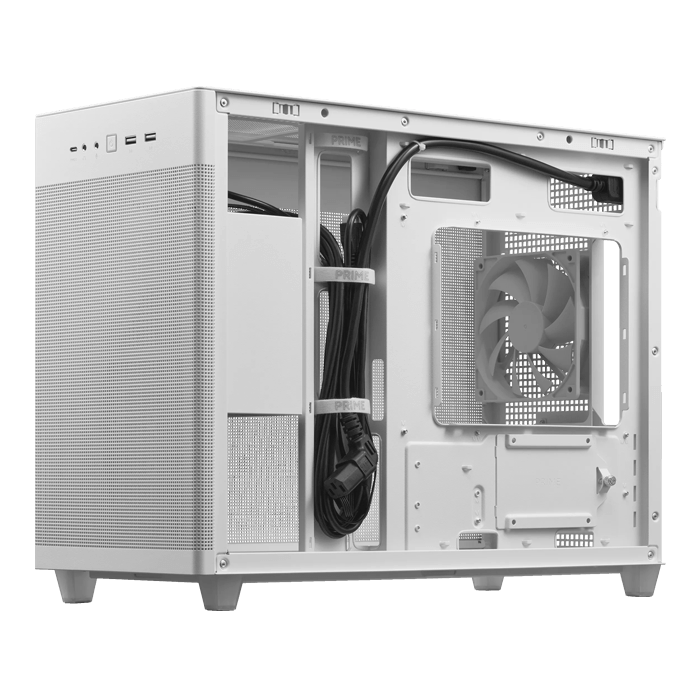

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

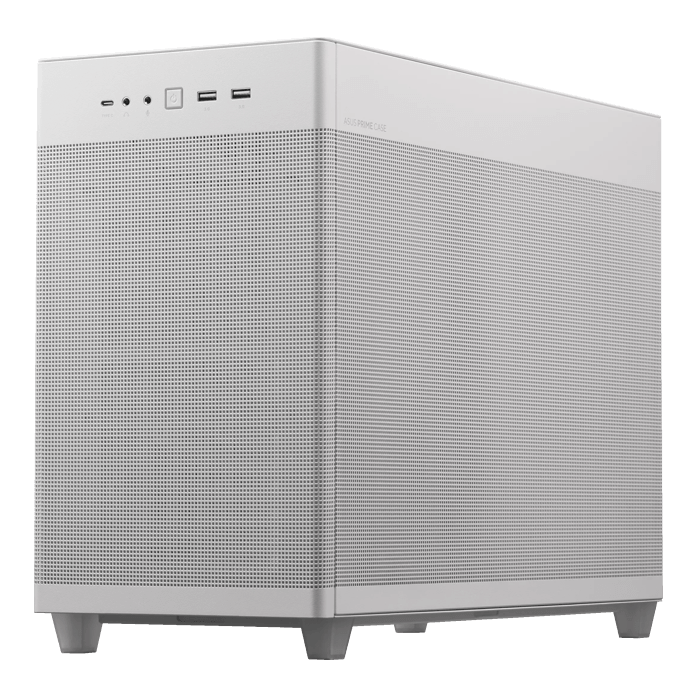

- Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
| Case Size | Small Tower |
| Motherboard Support |
Micro-ATX Mini-ITX |
| Drive Bays |
1 x 2.5" Bay 3 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 4 |
| Front I/O Port |
1 x Headphone 1 x Microphone 2 x USB 3.2 Gen1 1 x USB 3.2 Gen2 Type C |
| Radiator Support (Top) |
120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Rear) | 120 mm |
| Cooling Support (Top) |
3 x 120 mm 2 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm |
| Pre-installed Fans (Front) | None |
| Pre-installed Fans (Rear) | 1 x 120 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum GPU Length | 338 mm |
| Maximum PSU Length | 140-180 mm |
| Removable Dust Filters | Bottom |
| Maximum Cable Management Space | 32 mm |
| Dimensions | 205 x 350 x 460 mm |
| Weight | 5.8 Kg |
