- Includes three 140mm LED fans and built-in LED strips for stunning visual impact

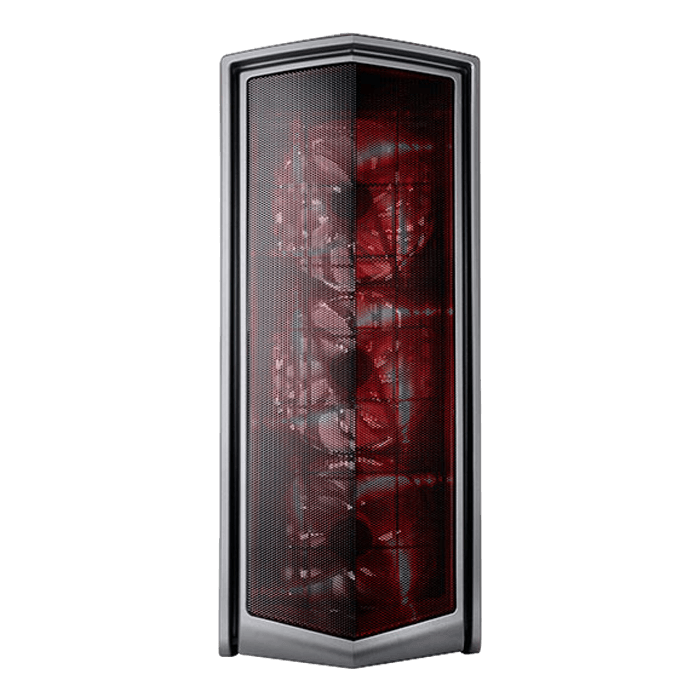

- Oversized front panel mesh design inspired by supercar intake grill
- Support two 240/280/360mm radiator for AIO liquid cooler or custom water cooling
- Reserved water tank mounting holes for water cooling setup
- Removable filters with positive air pressure design for dust reduction
- Built-in 4-segment LED light controller to adjustable brightness and modes

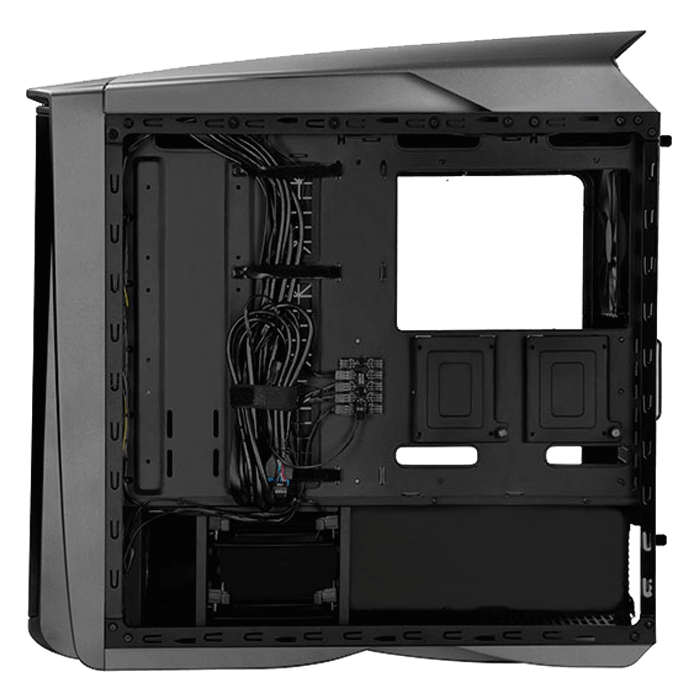

- Super clean internal look with PSU and drive bay cover
- Includes 10 in 1 fan hub for fan cable management
Model No. | SST-PM01BR-W (black with red LED + window) | |
SST-PM01CR-W (matte black with red LED + window) | ||
SST-PM01TR-W (titanium with red LED + window) | ||
SST-PM01WA-W (white with blue LED + window) | ||
Material | Plastic outer shell, steel body | |
Motherboard | ATX (up to 12" x 10.7"), Micro-ATX | |
Drive bay | External | None |
Internal | 2.5" or 3.5" x 4, 2.5" x 5 | |
Cooling system | Front | 3 x 120mm / 140mm fan slot (includes 3 x 140mm LED fan) |
Rear | 1 x 120mm / 140mm fan slot (includes 1 x 140mm fan) | |
Side | -- | |
Top | 3 x 120mm fan slot or 2 x 140mm fan slot | |
Bottom | -- | |
Internal | -- | |
Radiator support | Front | 120mm x 2 ; 240mm / 280mm / 360mm x 1 |
Rear | 120mm / 140mm x 1 | |
Top | 120mm x 2 ; 240mm / 280mm / 360mm x 1** | |
Bottom | N/A | |
Expansion slot | 7 | |
Front I/O port | USB 2.0 x 2 USB 3.0 x 2 Audio x 1 MIC x 1 |
|
Power supply | Standard PS2(ATX) | |
Expansion card | Support graphics card up to 16.5", width restriction - 6.88" | |
Limitation of CPU cooler | 180mm | |
Limitation of PSU | 240mm | |
Net weight | 9kg | |
Dimension | 220mm (W) x 571mm (H) x 560mm (D), 70.3 Liters 8.66" (W) x 22.48" (H) x 22.05" (D), 70.3 Liters |
