Model No. | ST-PM01BR-W (black with red LED + window) | |
SST-PM01CR-W (matte black with red LED + window) | ||

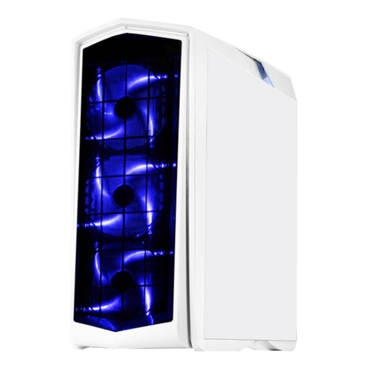

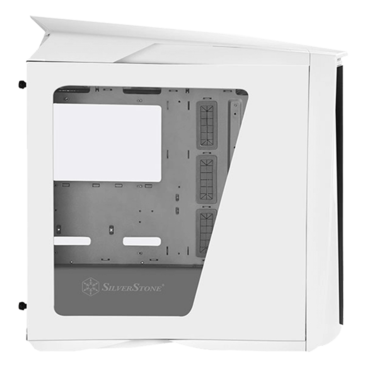

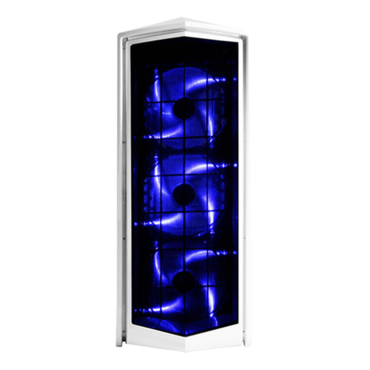

SST-PM01WA-W (white with blue LED + window) | ||
Material | Plastic outer shell, steel body | |
Motherboard | ATX (up to 12" x 10.7"), Micro-ATX | |
Multimedia | -- | |
Drive Bay | External | None |
-- | ||
Internal | 2.5" or 3.5" x 4, 2.5" x 5 | |
Cooling System | Front | 3 x 120mm / 140mm fan slot (includes 3 x 140mm LED fan) |
Rear | 1 x 120mm / 140mm fan slot (includes 1 x 140mm fan) | |
Side | -- | |
Top | 3 x 120mm fan slot or 2 x 140mm fan slot | |
Bottom | -- | |
Internal | -- | |
Radiator Support | Front | 240mm / 280mm / 360mm x 1 |
Top | 240mm / 280mm / 360mm x 1 | |
Rear | 120mm / 140mm x 1 | |
Expansion Slot | 7 | |
Front I/O Port | USB 2.0 x 2 USB 3.0 x 2 Audio x 1 MIC x 1 |
|
Power Supply | Standard PS2(ATX) | |
Operating system support | -- | |
Expansion Card | Support graphics card up to 16.5", width restriction - 6.88" | |
Limitation of CPU cooler | 180mm | |
Limitation of PSU | 240mm | |
Net Weight | 9kg | |
Dimension | 220mm (W) x 571mm (H) x 560mm (D), 70.3 Liters | |
Extra | -- | |
Support VESA Mount | -- |
