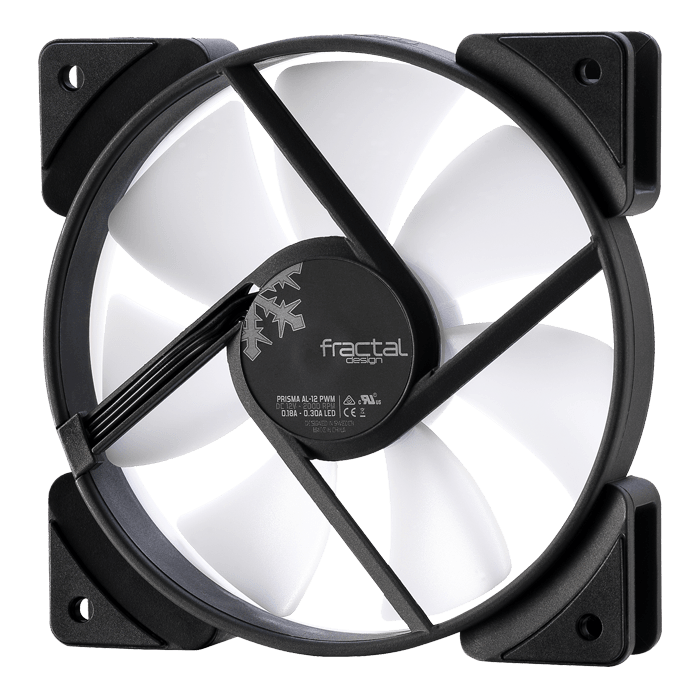

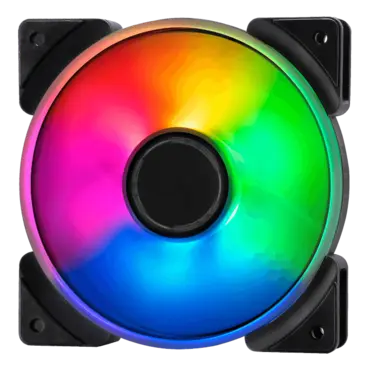

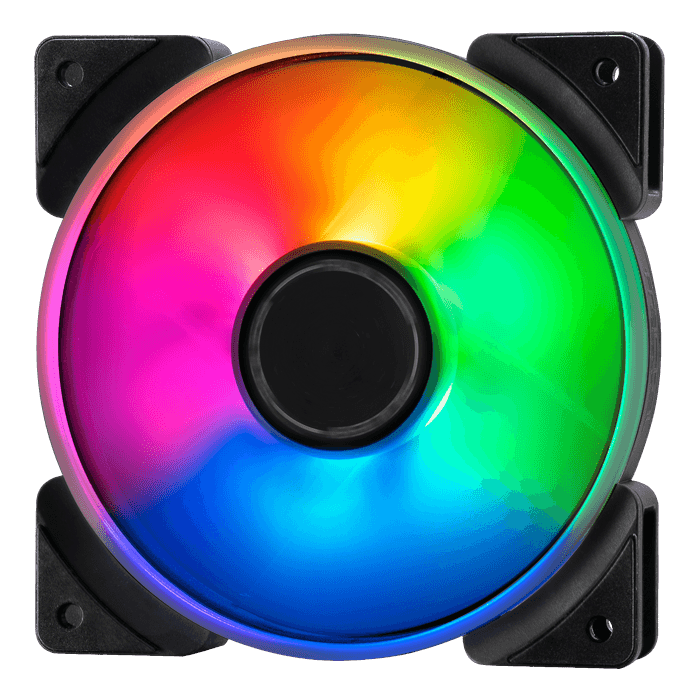

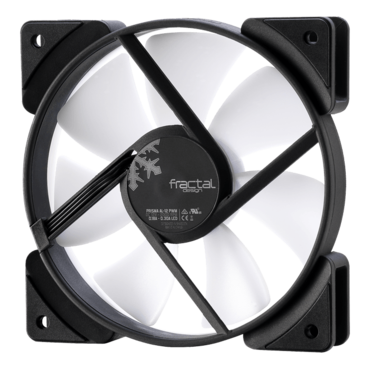

Specification | Prisma AL-12 PWM |
Size | 120 x 120 x 25 mm |
Blade color | Semi-opaque white |
Frame color | Black |
LED type | Addressable RGB |
Screw hole pattern | 105 x 105 mm |
Power connector | 4-pin |
Bearing | LLS |
Number of blades | 7 |
Rotational speed | 500 – 2000 RPM |
Noise level | 32.7 dB(A) |
Airflow (CFM) | 85.71 CFM |
Airflow (m3/h) | 145.62 m3/h |
Static pressure | 2.78 mmH2O |
Fan input power | 2.16W |
Fan max input current | 0.18A |
Fan input voltage | 12V |
Fan starting voltage | 7V |
LED input power | 1.50W |
LED max input current | 0.30A |
LED input voltage | 5V |
Low (0-20%) PWM speed | 500 RPM |
Low PWM noise level | 14.8 dB(A) |
Low PWM airflow | 20.68 CFM |
Low PWM static pressure | 0.36 mmH2O |
MTBF | 100,000 hrs |
Fan weight | 169 g |
Package weight | 212 g |
Cable length | 500 mm |
Cable type | Black sleeved |
Package dimensions (Excluding hanging tab) |
147 x 122 x 30 mm
157 x 122 x 80 mm |
