Pro B550M-C/CSM, AMD B550 Chipset, AM4, DP, microATX Motherboard
Quantity:
- SKU: 13749962
- Manufacturer: ASUS
- MPN: PRO B550M-C/CSM
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$121.86
Pro B550M-C/CSM, AMD B550 Chipset, AM4, DP, microATX Motherboard
ASUS Pro B550M-C/CSM. Pro. ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-C®
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
| CPU |
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors * * Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * AMD Ryzen™ 4000 G-Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
2 x DisplayPort 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. |
| Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) * AMD Ryzen™ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x4 *1 1 x PCI * Support PCIe bifurcation for RAID on CPU function. |
| Storage |
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD RyzenTM 4000 G-Series Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Realtek RTL8111H 1Gb Ethernet |
| Audio |
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports |
Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 3 x USB 2.0 port(s) |
| Software Features |
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
| ASUS Special Features |
ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM2.0 IC Onboard |

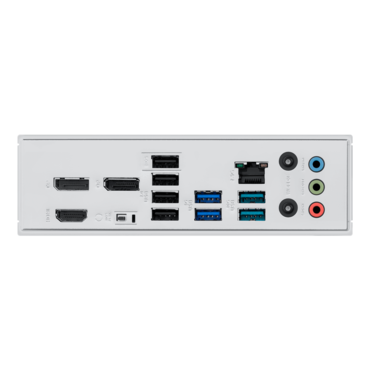

| Back I/O Ports |
1 x Realtek® RTL8111H 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 2 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 with E key for Wi-Fi module 1 x LPT header 4 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x SMBus header(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Chassis intrusion header 1 x LPC Debug header 1 x Speaker connector |
| Accessories |
1 x ACC Express Activation Key Card I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual 3 x M.2 SSD screw package(s) 2 x M.2 SSD Hex screw packages |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Note | *1 The PCIe x4 slot runs x2 mode when the PCI slot is occupied. |
