Pro B760M-CT-CSM, Intel® B760 Chipset, LGA 1700, microATX Motherboard

Quantity:
  • SKU: 15526303
  • Manufacturer: ASUS
  • MPN: Pro B760M-CT-CSM
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$156.58
Quantity:

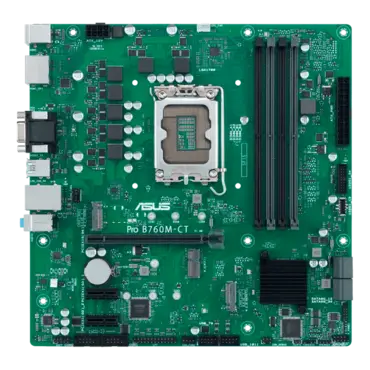

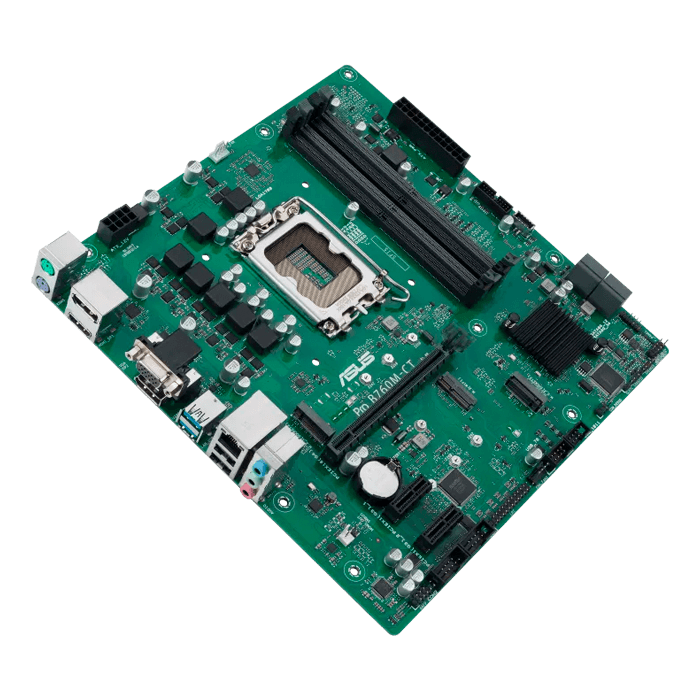

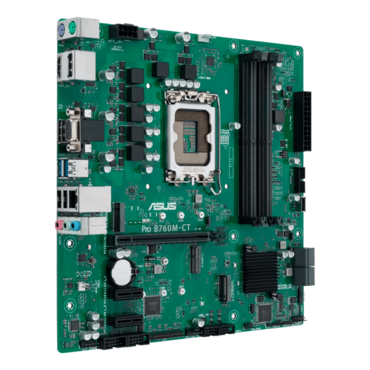

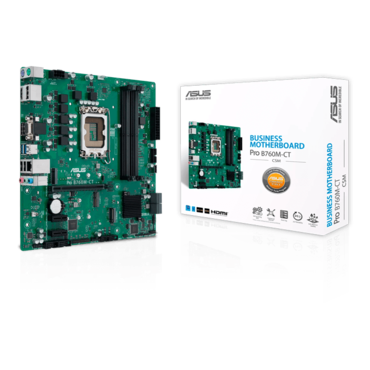

Pro B760M-CT-CSM, Intel® B760 Chipset, LGA 1700, microATX Motherboard

ASUS Pro B760M-CT-CSM. ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

  • Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
  • Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
Model Pro B760M-CT-CSM
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 192GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 2 x DisplayPort**
1 x VGA port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel® B760 Chipset
2 x PCIe 3.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)*
 * Wi-Fi module is sold separately.
USB Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
 - Supports: Jack-detection, Front Panel Jack-retasking
 - Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

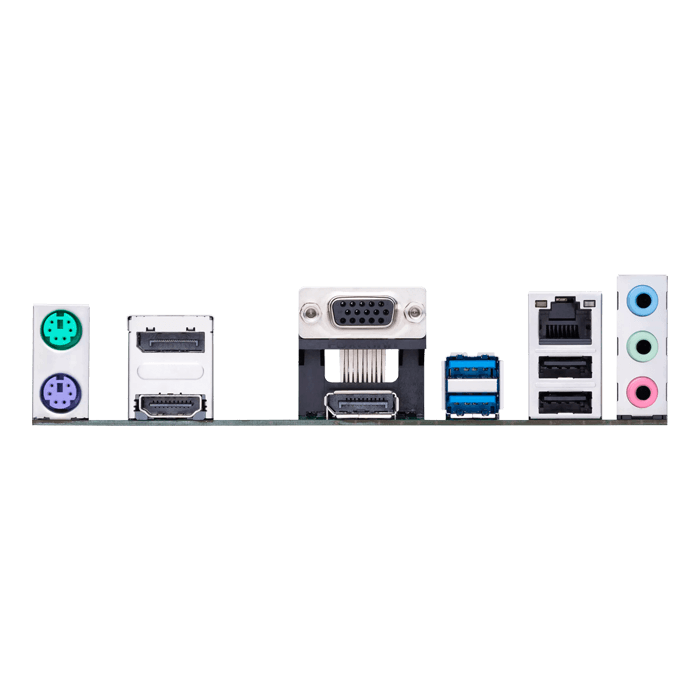

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPorts
1 x HDMI® port
1 x VGA port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header (with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Boot Defender
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit*
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
* Please contact with local FAE for commercial BIOS kit.
TPM 2.0 IC onboard
Software Features ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express (ACCE)
BIOS 128Mb Flash ROM
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
