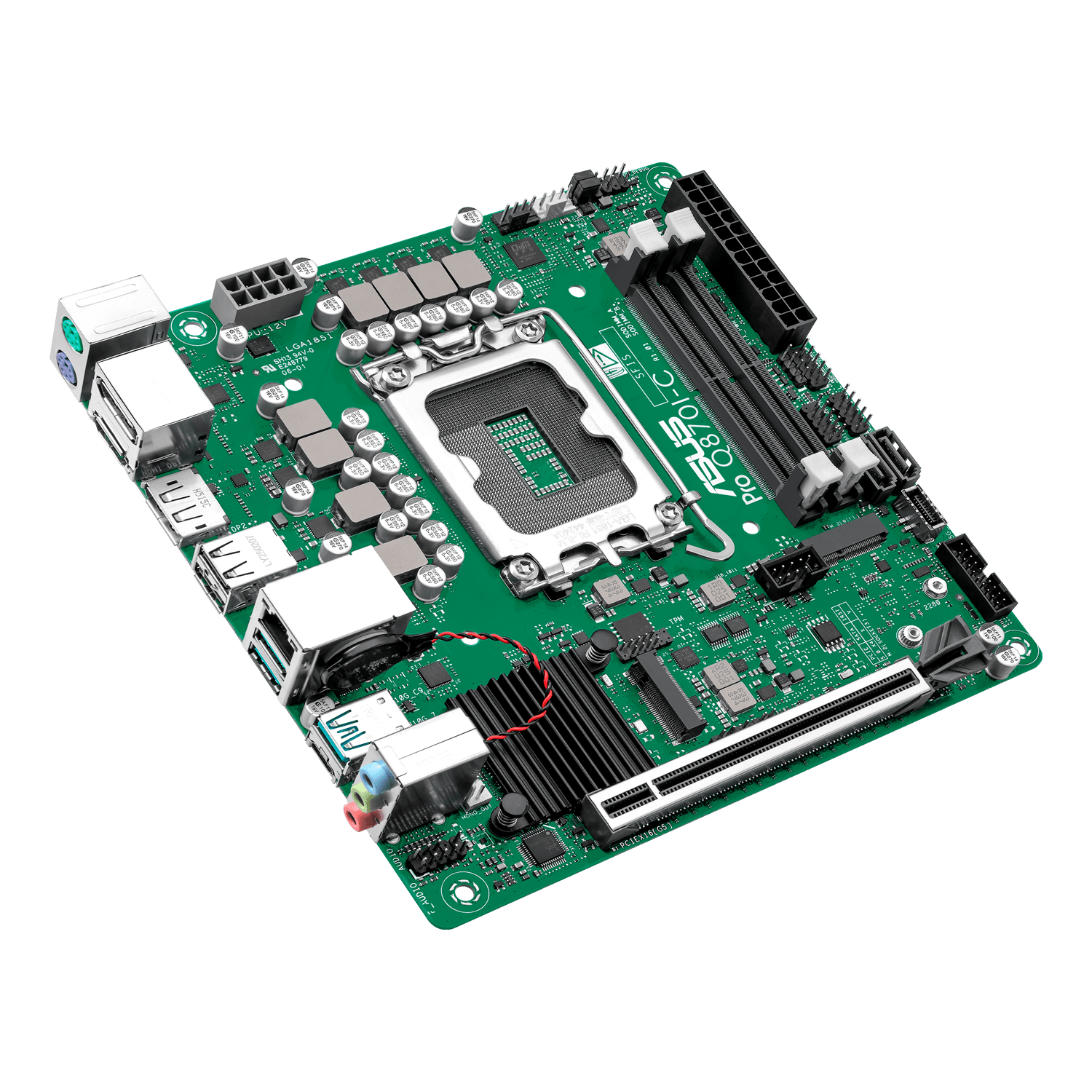

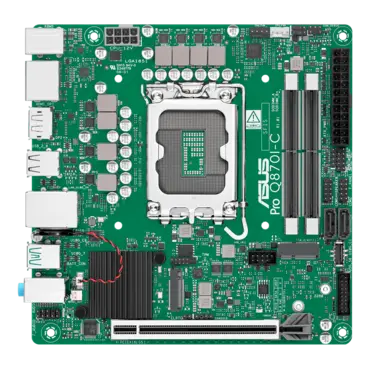

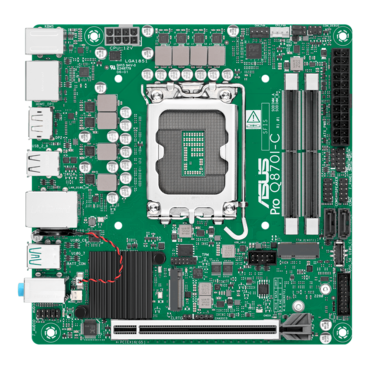

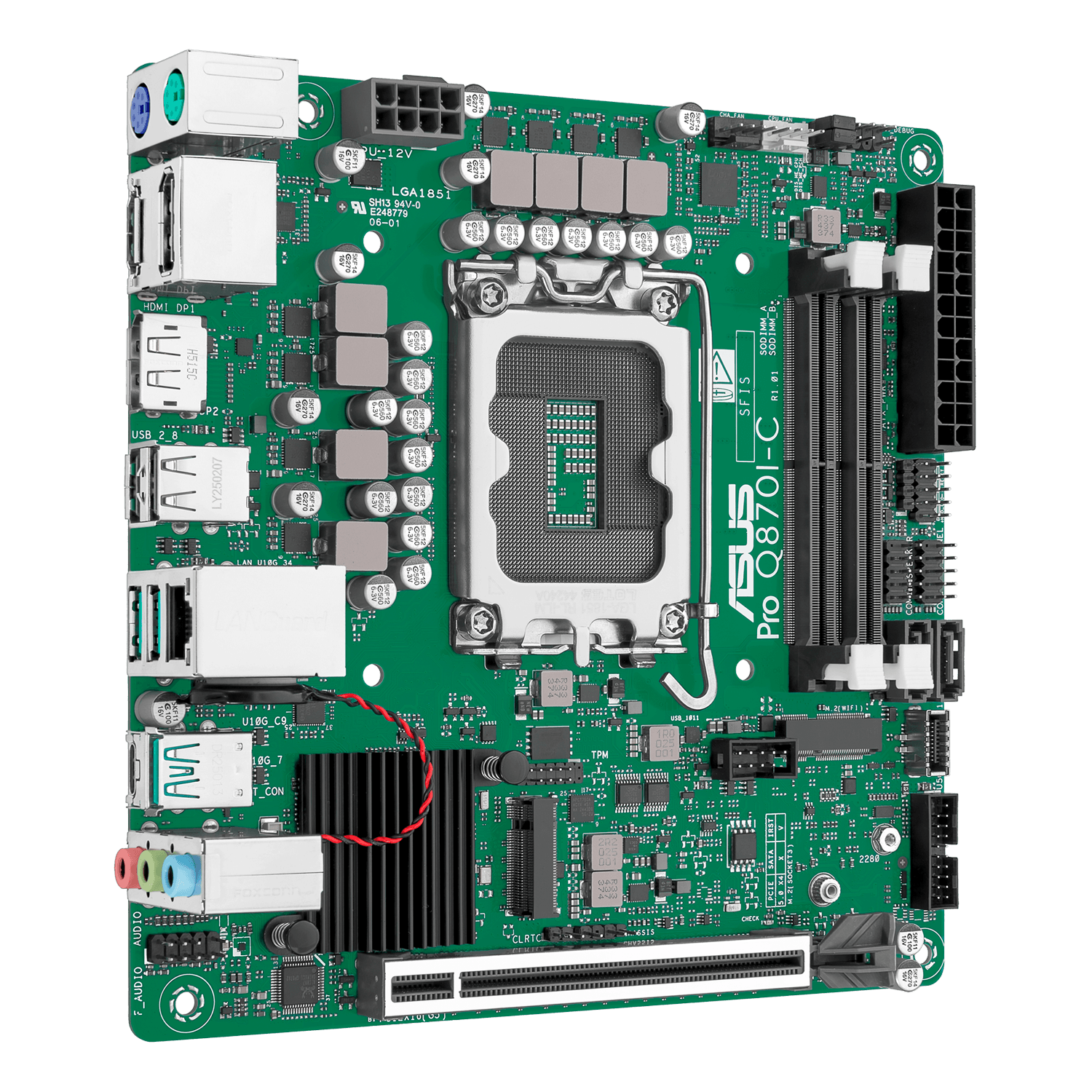

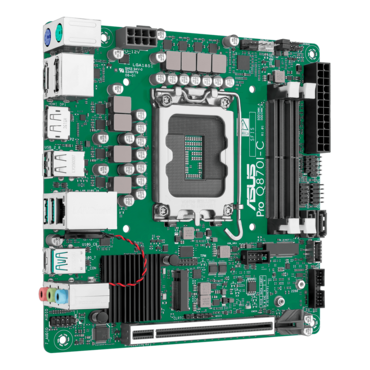

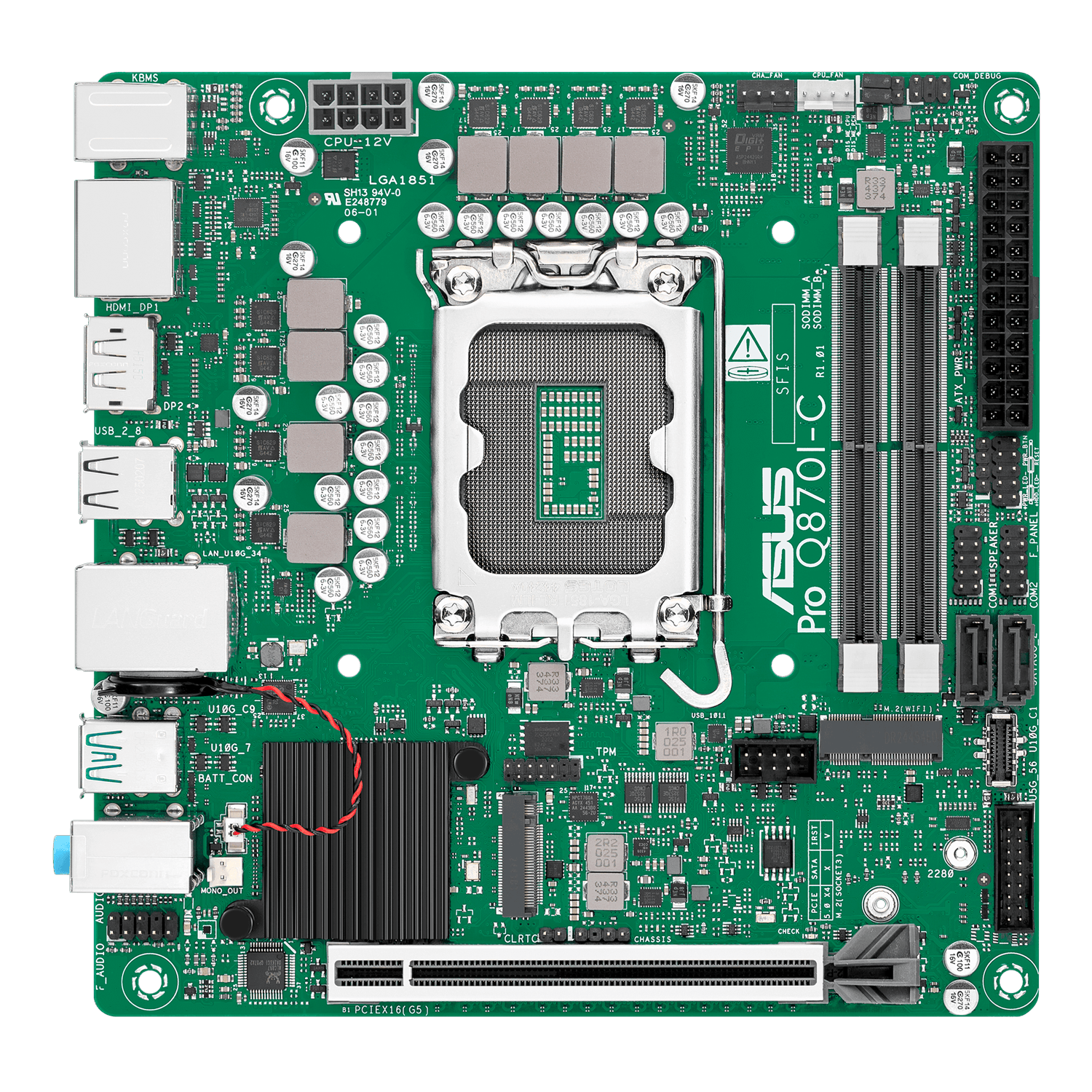

Pro Q870I-C-CSM, Intel® Q870 Chipset, LGA1851, Mini-ITX Motherboard
- SKU: 20246876
- Manufacturer: ASUS
- MPN: PRO Q870I-C-CSM
- Availability: TEMPORARILY OUT OF STOCK
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C®
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
| Model | Pro Q870I-C-CSM |
| News & Updates |
Please see the updated OS support requirements for the Intel® Core Ultra 200S Series
below: •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. Please visit our GLOBAL website to check and download the latest updates. |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *CPU only support up to 65W * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Q870 Chipset |
| Memory |
2 x SO-DIMM slots, max. 128GB, DDR5 Supports up to 6400 MT/s , Non-ECC,Un-buffered ,Clocked SODIMM* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics |
2 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ***** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Expansion Slots |
Intel® Core™ Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage |
Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(series 2) * M.2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® Q870 Chipset 2 x SATA 6Gb/s ports |
| Ethernet |
1 x Intel® I219LM 1Gb Ethernet ASUS LANGuard *With Intel® I219LM LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. |
| Wireless & Bluetooth | M.2 slot only 2230 (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB |
Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A ) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |

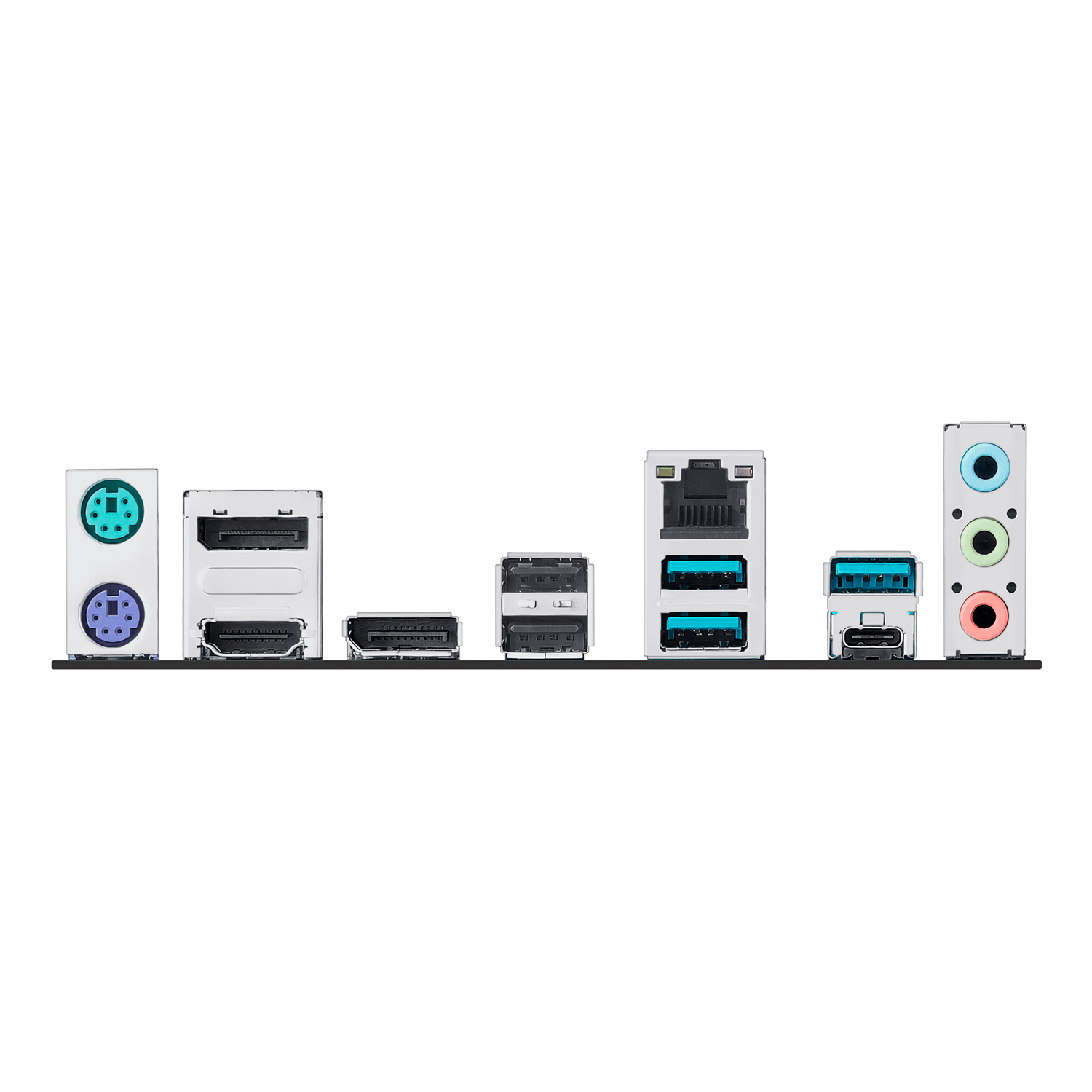

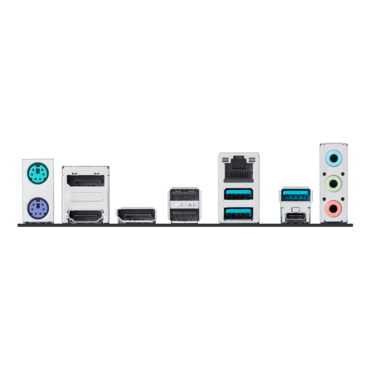

1 x USB 10Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A ) 2 x DisplayPort 1 x HDMI™ port 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port 1 x Intel® 1Gb Ethernet 3 x Audio jacks |
| Internal I/O Connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME CPU 1 x DIS ME PCH 1 x Mono-Out Audio header (with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 10-1 pin Front Panel System header |
| Special Features |
ASUS Q-Design - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Boot Defender - ASUS Self Recovering BIOS* - ASUS BIOS EZ Deploy* - ASUS Event Log - ASUS MyHotkey - ASUS Commercial BIOS Kit** - Anti-moisture coating - 24/7 Reliability - Overcurrent Protection - Intel® Trusted Execution Technology (Intel® TXT) support *After updating BIOS, the system automatically enters S5 and needs to be restarted. **Please contact local FAE for Commercial BIOS kit. TPM IC onboard |
| Software Features |
ASUS Exclusive Software ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey |
| Remote Management Features |
IT Management software supported - ASUS Control Center Express(ACCE) Intel Q870 Chipset Intel vPro® |
| BIOS | 256 Mb Flash ROM |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Screw package for M.2 SSD 1 x I/O Shield 1 x M.2 Key E screw package Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm) |
