- 15.6-inch 4K UHD (3840 x 2160) IPS panel with anti-glare and capacitive 10-point multitouch
- Bundled ProArt Pen with Wacom EMR technology for pen-on-paper-like writing and drawing experiences
- 100% sRGB, Calman Verified, and factory pre-calibrated to Delta E < 2 for exceptional color accuracy
- ASUS Dial and Virtual Control Panel offer productive shortcuts and programmable hotkeys for compatible creative software
- Two innovative kickstands prop the display up at different angles to suit different needs
- Extensive I/O connectivity including USB-C (with DP Alt mode) and HDMI for compatibility with various devices
- TÜV Rheinland-certified Flicker-free and Low Blue Light technologies for comfortable viewing experiences

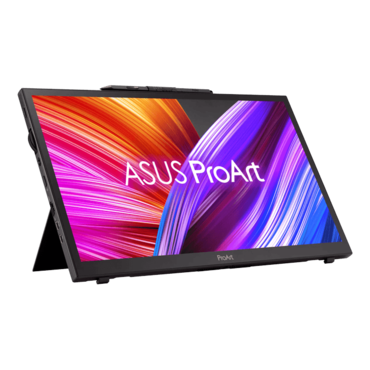

Model | ProArt Display PA169CDV |
Display |
Panel Size (inch) : 15.6 Pixels Per Inch (PPI) : 282 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 345.60 ×194.40 mm Display Surface : AGAF (Anti-Glare, Anti-FingerPrint) Backlight Type : LED Panel Type : IPS Viewing Angle (CR≧10, H/V) : 178°/ 178° Pixel Pitch : 0.09mm Resolution : 3840x2160 Color Space (sRGB) : 100% Brightness (HDR, Peak) : 500 cd/m2 Brightness (Typ.) : 450 cd/m2 Contrast Ratio (HDR, Max) : 15,000:1 Contrast Ratio (Typ.) : 1200:1 Display Colors : 1073.7M (10 bit) Response Time : 10ms(GTG) Refresh Rate (Max) : 60Hz HDR (High Dynamic Range) Support : HDR10 Touch : Yes, Projective Capacitive 10-point Touch Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom) Protection Glass : Yes Flicker-free : Yes LCD ZBD Warranty : Yes(3 yr) |
Video Feature |
ProArt Preset : Standard ProArt Preset : sRGB ProArt Preset : Adobe RGB ProArt Preset : DCI-P3 ProArt Preset : Rec. 709 ProArt Preset : Scenery ProArt Preset : Reading ProArt Preset : HDR ProArt Preset : User mode1 ProArt Preset : User mode2 Color Temp. Selection : Yes(5 modes) Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y) Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 ) Color Accuracy : ΔE< 2 ProArt Palette : Yes QuickFit Plus : Yes PIP / PBP Technology : Yes HDCP : Yes, 2.2 Low Blue Light : Yes |
Audio Feature | Speaker : Yes(1Wx2) |
I/O Ports |
USB-C x 1 (DP Alt Mode) HDMI(v2.0) x 1 USB-C Power Delivery : 15W |
Signal Frequency |
Digital Signal Frequency : HDMI: 29~160 KHz (H) / 40~60Hz (V) USB-C: 29~160 KHz (H) / 40~60Hz (V) |
Power Consumption |
Power Consumption : <15W Power Saving Mode : <0.5W Power Off Mode : <0.3W Voltage : 100-240V, 50/60Hz |
Mechanical Design |
Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°) Pivot : Yes (0° ~ 90° Clockwise) 1/4" Tripod Socket : Yes |
Dimensions (Esti.) |
Phys. Dimension (W x H x D) : 37.0 x 23.7 x 1.2 cm (14.57" x 9.33" x 0.47") Box Dimension (W x H x D) : 53.90 x 10.75 x 32.30 cm (21.22" x 4.23" x 12.72") |
Weight (Esti.) |
Net Weight : 1.07 kg (2.36 lbs) Gross Weight : 2.95 kg (6.50 lbs) |
Accessories (vary by regions) |
Color pre-calibration report HDMI cable Power adapter ProArt Pen (Wacom EMR) ProArt Carry Bag Quick start guide USB-C cable Warranty Card Welcome Card |
Certificate |
Energy Star TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 Calman Verified Pantone Validated |
