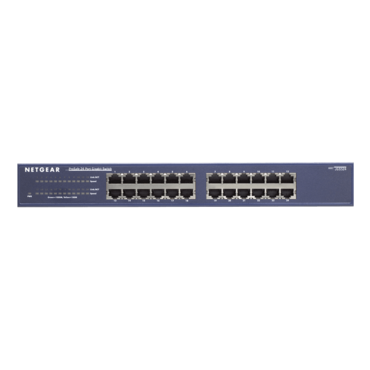

ProSafe JGS524NA, 24 x RG45, 10/100/1000Mbps, Unmanaged Ethernet Switch

SKU: 1069

Manufacturer: NETGEAR

MPN: JGS524NA

Availability: Available


Price: $174.68
or as low as $6/month
Quantity:

NETGEAR's JGS524 Gigabit Switch gives your office network a mega boost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, this 24-port switch can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, this unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the its ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

Model
Brand NETGEAR
Series ProSafe
Model JGS524
Format & Standards
Format Rackmount
Standards IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet
IEEE 802.3x Flow Control
Network Management Type Unmanaged
Ports & Interface
Uplink Ports None
Primary Ports 24 x 10/100/1000 Mbps twisted-pair RJ-45
Primary Port Speed 10/100/1000Mbps
Data Transmission
MAC Address Table MAC address database: 8,000
VLAN Support No
Jumbo Frames Yes
Details
Buffer Memory 2MB
Protocols TCP/IP
Security UL listed (UL 1950) / cUL
IEC 950 / EN 60950
PoE No
Stackable No
SNMP No
QoS No
LACP No
Layer Layer 2 Only
Port Mirroring No
Module Support No
LEDs Unit: power
Per network port: Link, Activity, Speed
Power 100 - 240V; 50-60Hz; plug is localized to country of sale
Features
Features Switching bandwidth: 48 gigabit per sec
Forward rate (1000 Mbps port): 1,480,000 packets per sec
Forward rate (100 Mbps port): 148,000 packets per sec
Forward rate (10 Mbps port): 14,800 packets per sec
Mean Time Between Failure (MTBF): 87,600 hours

Powerful, non-blocking backplane
Affordable enough for desktop connections

For ProSafe Lifetime Warranty please see: http://www.netgear.com/warranty
Power Adapter Warranty : 2 years
Dimensions & Weight
Dimensions H x W x D: 1.70" x 13.00" x 6.60"
Weight 3.80 lbs.
Environmental
Temperature 0ºC to 50ºC (32ºF to 122ºF)
Humidity Storage humidity: 10% to 95% Relative Humidity
Packaging
Package Contents JGS524
Installation Guide
Power Cord
Rack mount kit
Screws
Group
Case Metal Case
Class 5-Port
Version New
Model JGS524NA
Primary Port 8 Port
Plug Standards
Electrical Outlet Plug Type Plug Type “A” (USA, Canada, Mexico, Japan)
