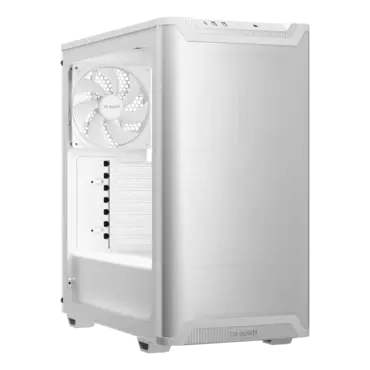

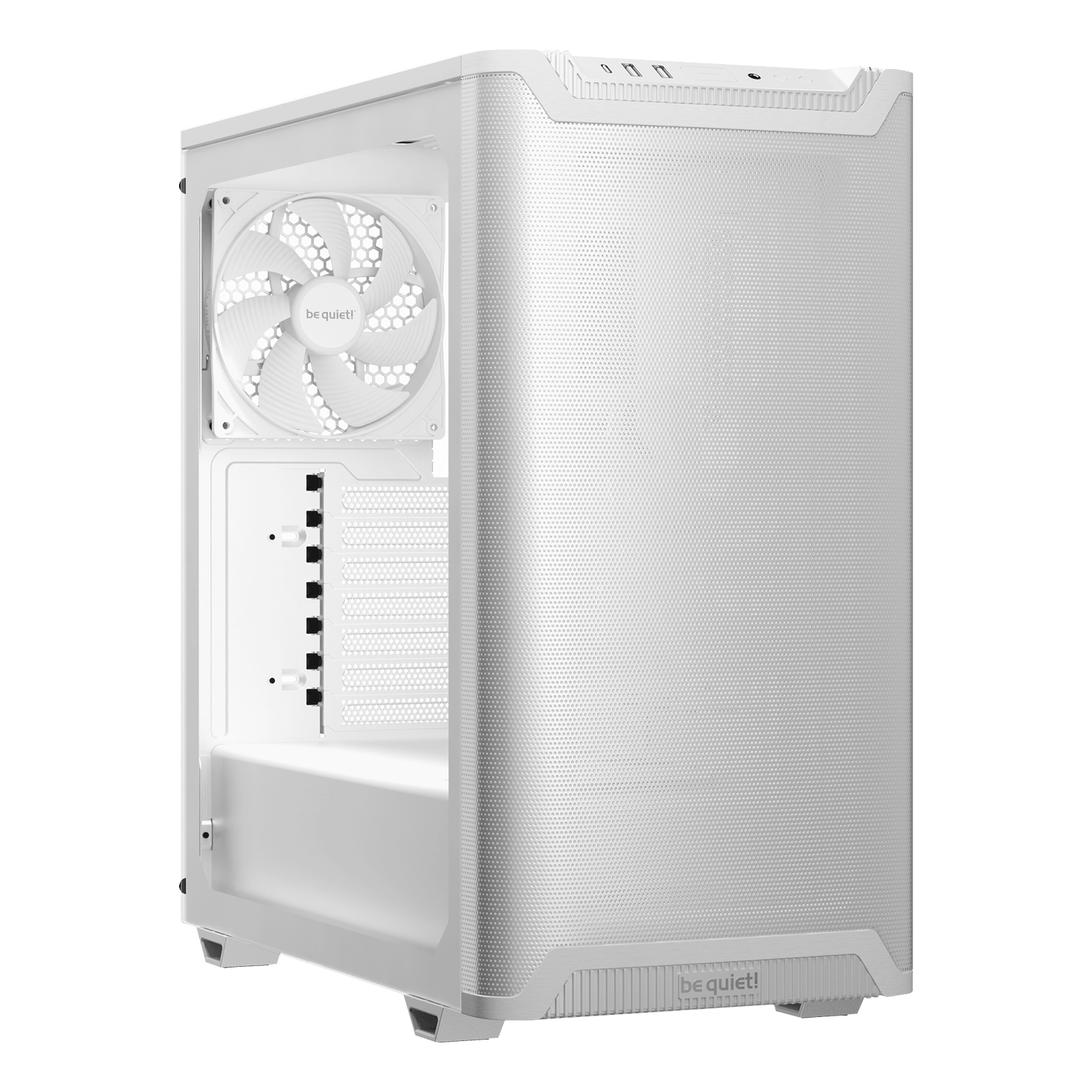

Pure Base 501 Airflow, Tempered Glass, No PSU, ATX, White, Mid Tower Case
- SKU: 18175984
- Manufacturer: be quiet!
- MPN: BGW75
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$124.90
Pure Base 501 Airflow, Tempered Glass, No PSU, ATX, White, Mid Tower Case
be quiet! Pure Base 501 Airflow (BGW75). Pure Base 501 Airflow Window White is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
- High airflow intake front panel and top cover for maximum performance
- 2 preinstalled Pure Wings 3 140mm PWM White fans for extraordinary air pressure
- Generous space for high-end graphics cards and large coolers, despite compact footprint
- Optional vertical graphics card installation
- Water cooling ready for radiators up to 360mm
- USB 3.2 Gen. 2 Type C for best connectivity
- Comfortable cable management with clever cable routing design
- Side panel made of tempered glass
| General data | |
| Model | Pure Base 501 Airflow Window White |
| Color option | White |
| Motherboard compatibility | ATX / M-ATX / Mini-ATX |
| Case size excl. stands (L x W x H), (mm) | 450 x 231 x 449 |
| Case size incl. stands (L x W x H), (mm) | 450 x 231 x 463 |
| Volume (l) | 24.4 |
| PSU form factor | ATX PS/2 |
| Net weight (kg) | 7.2 |
| Expansion slots | 7 |
| Pre-installed fans | |
| Fan at top | - |
| Fan at front | 1x Pure Wings 3 140mm PWM |
| Fan at side | - |
| Fan at rear | 1x Pure Wings 3 140mm PWM |
| Fan at bottom | - |
| Dimensions (L x W x H), (mm) | Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 |
| Fan speed at 100% PWM / 12V (rpm) | 1200 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 57.4 / 97.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 0.96 |
| Noise level at 100% PWM / 12V (dB(A)) | 21.9 |
| Voltage range (V DC) | 5 - 13.2 |
| Input power (W) | 3.6 |
| Input current (A) | 0.06 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 80,000 |
| Fan controller | - |
| Maximum fan installation | |
| Maximum fans | 6 |
| Top (mm) | 2x 140 / 2x 120 |
| Front (mm) | 2x 140 / 3x 120 |
| Side (mm) | - |
| Rear (mm) | 1x 140 / 1x 120 |
| Bottom (mm) | - |
| PSU shroud | - |
| Optional radiator installation | |
| Top (mm) | 120 / 240 |
| Front (mm) | 120 / 140 / 240 / 280 / 360 |
| Side (mm) | - |
| Rear (mm) | 120 / 140 |
| Bottom (mm) | - |
| PSU compatibility | |
| Maximum dimensions excl. bottom fan (mm) | 180 |
| Maximum dimensions incl. bottom fan (mm) | 180 |
| Graphics card | |
| HDD cage (in height of graphics card) installed (mm) | - |
| HDD cage (in height of graphics card) removed (mm) | - |
| Maximum PCIe slots with vertical graphics card (pcs.) | 5 |
| Drive bay capacity | |
| 5.25 bays (pcs.) | - |
| 3.5 slots (scope of delivery) | 2 |
| 3.5 slots (max.) | 2 |
| 2.5 slots (scope of delivery) | 5 |
| 2.5 slots (max.) | 5 |
| Cooling | |
| Max.construction height of CPU cooler unit (mm) | 178 |
| Airflow channel | - |
| Lighting | |
| LED illumination | - |
| LEDs (pcs.) | - |
| LED type | - |
| LEDs synchronizable with controller/motherboard | - |

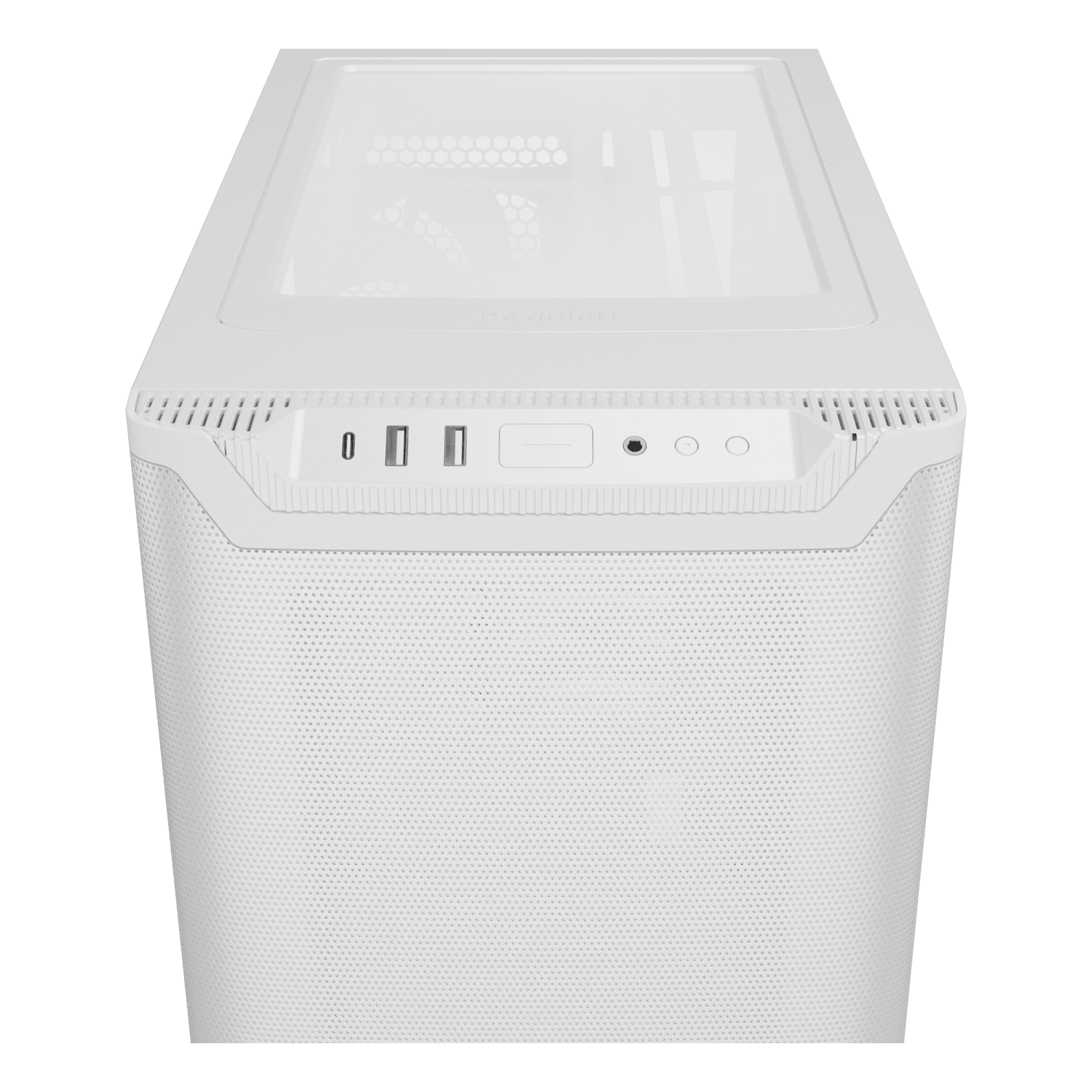

| I/O Panel | |
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | - |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option (W) | - |
| Insulation and damping | |
| Top panel insulation mats | - |
| Front panel insulation mats | - |
| Side panel insulation mats | ✓ |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | ✓ |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | ✓ |
| Scope of delivery | |
| Screw set (Drives/Motherboard) | ✓ |
| Additional standoffs (pcs.) | 1 |
| SSD bracket for PSU shroud | - |
| LED strips (pcs.) | - |
| Cable ties (pcs.) | 12 |
| Screw box | - |
| VGA holder | - |
| VGA holder for inverted layout | - |
| Mesh Front Panel | - |
| ODD Bracket | - |
| Fan / Radiator bracket for multi mounting panel | - |
| Removeable dust filters | |
| Top | 1 |
| Front | 1 |
| Side | - |
| Bottom | 1 |
| Material | |
| Top cover | Steel |
| Front panel | ABS |
| Side panel | Steel |
| Side panel window | Glass |
| Stands | ABS |
| Safety certification | |
| Approvals | CE, UKCA |
| Environmental directives | |
| RoHS | ✓ |
| Reach | ✓ |
| WEEE | - |
| Triman | ✓ |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
| Logistics data and RRP | |
| Article number | BGW75 |
| EAN code | 4260052191835 |
| Dimensions, package (L x W x H), (mm) | 518 x 292 x 503 |
| Gross weight, package (kg) | 8.4 |
| Pieces per packaging unit | 1 |
