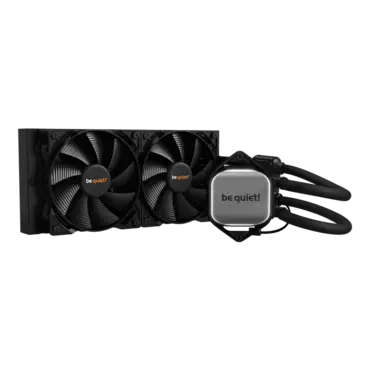

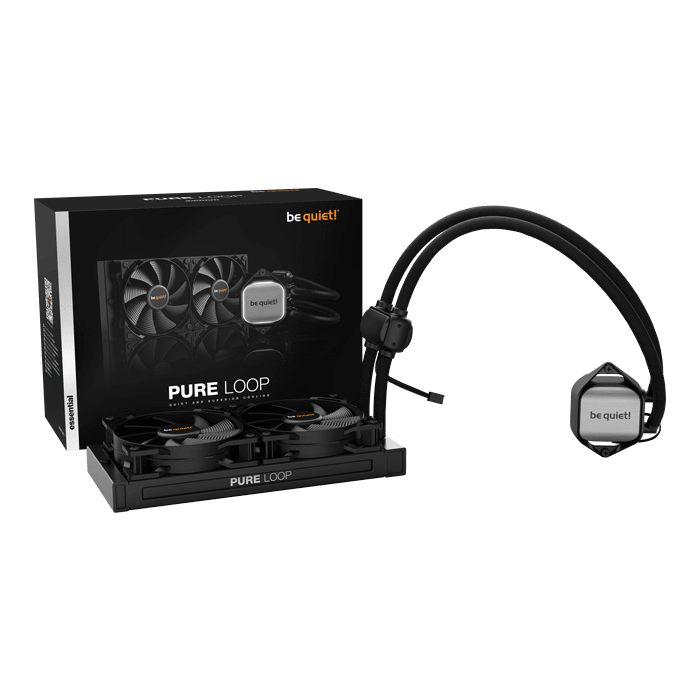

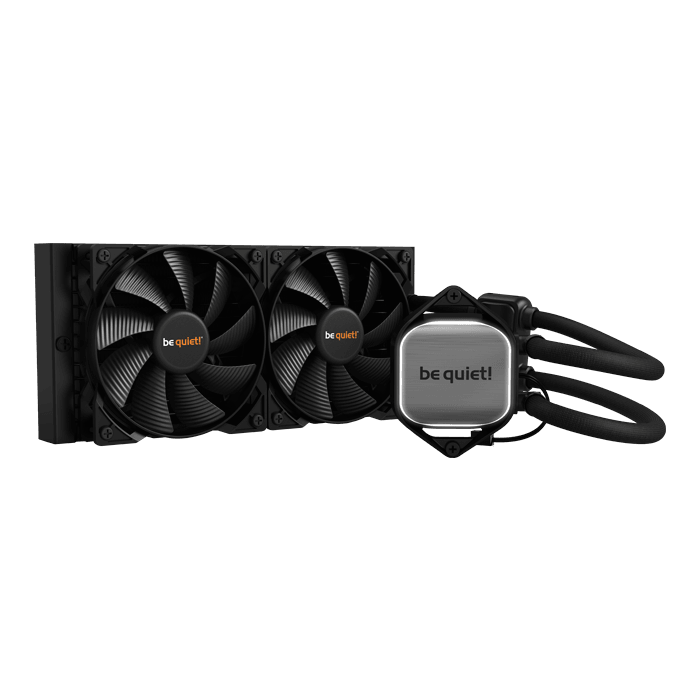

Pure Loop, 240mm Radiator, Liquid Cooling System

Quantity:
  • SKU: 13629460
  • Manufacturer: be quiet!
  • MPN: BW006
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$126.29
Quantity:
  • Very high cooling performance
  • Doubly decoupled pump for quiet operation and minimal vibration
  • Pure Wings 2 120mm PWM fans combine quiet operation with high air pressure
  • White LED illumination, all-black design and aluminum-style for unmistakable and stylish look
  • Easy-to-access refill port and included coolant bottle guarantee a long lifespan
  • Flexible sleeved tubes and a convenient mounting ensure easy handling
  • Nickel-coated coldplate allows optimum use of liquid metal thermal compound
  • 3-year manufacturer’s warranty
General Data
Model Pure Loop 240mm
Dimensions radiator, incl. fan (H x W x D), (mm) 277 x 120 x 52
Total weight (kg) 1.05
Socket compatibility Intel 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) square ILM; AMD: AM4 / AM3(+)
Fan model, number 2x Pure Wings 2 120mm PWM high-speed
Noise level (dB(A)) @ 25 % / 50% /100% rpm 19 / 26.6 / 39.5
Pump speed (rpm) 5500
Pump connector 3-pin
Tube length (mm) 400
Refill port
Radiator specifications
Dimensions (H x W x D), (mm) 277 x 120 x 27
Radiator material / finish Aluminum / Black spray painted
Base material / finish Copper / Nickel plated
Fan specifications
Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM (rpm) 2000
Bearing technology Rifle
Motor technology 4-pole fan motor
Rated Voltage (V) 12
Input current (A) 0.30
Input power (W) 3.6
Connector 4-pin PWM
Cable length (mm) 420
Lifespan (h / 25°C) 80,000
Accessories
Thermal grease Included
Mounting set Intel & AMD
User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW
Y-cable for fans
Y-SATA Power adaptor for pump & light
Bottle of coolant (ml) ✓ / 100
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
Logistics data, RRP
Article number BW006
EAN code 4260052187890
Dimensions, package (L x W x H), (mm) 321 x 140 x 240
Gross weight, package (kg) 1.94
Pieces per packaging unit 8
Dimensions, shipping box (L x W x H), (mm) 658 x 296 x 508
Gross weight, shipping box (kg) 17.00
