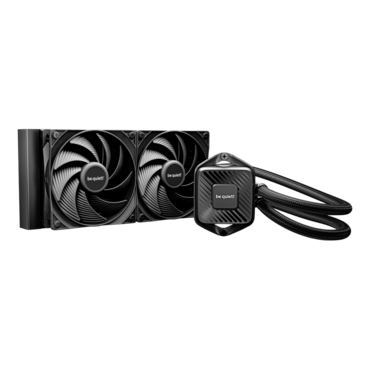

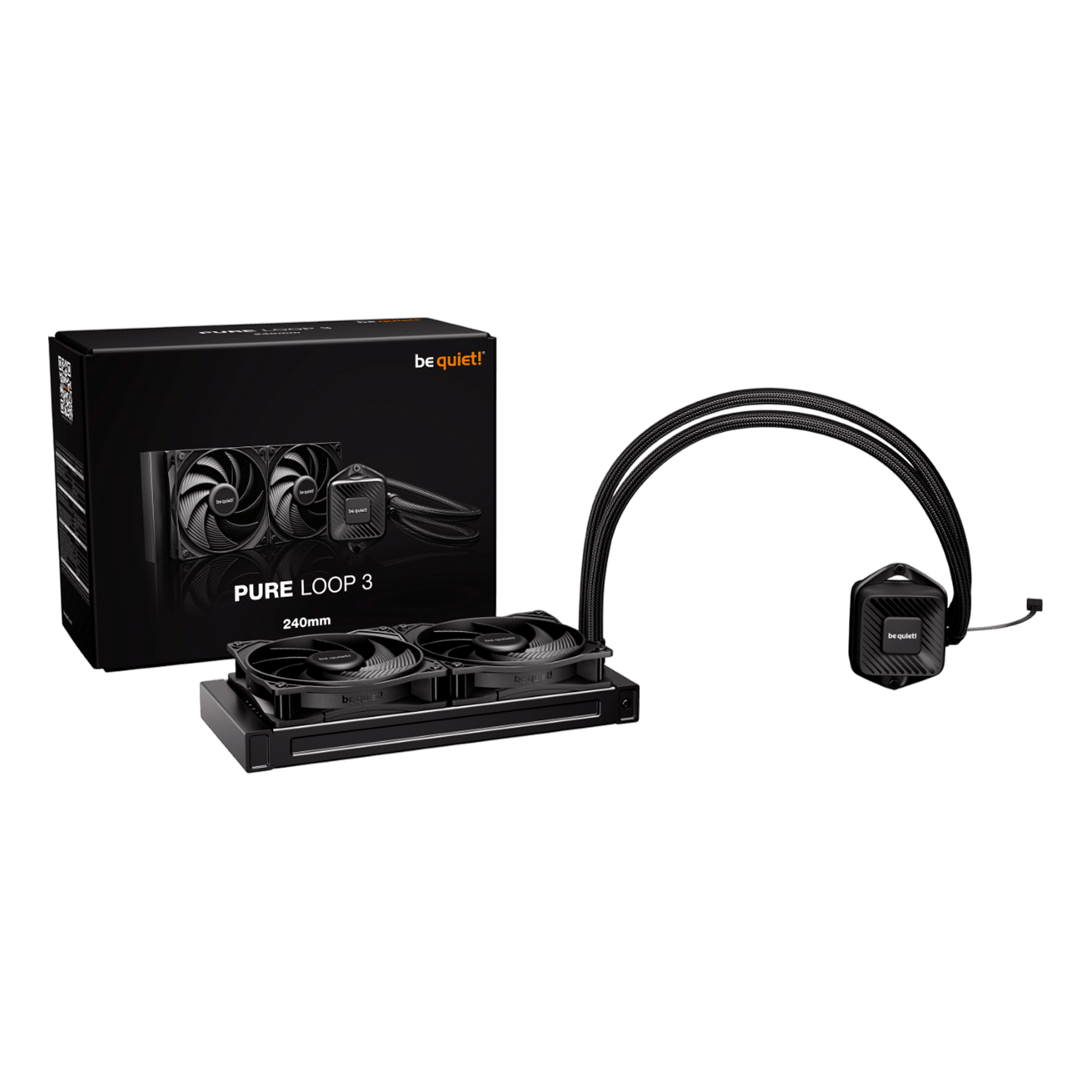

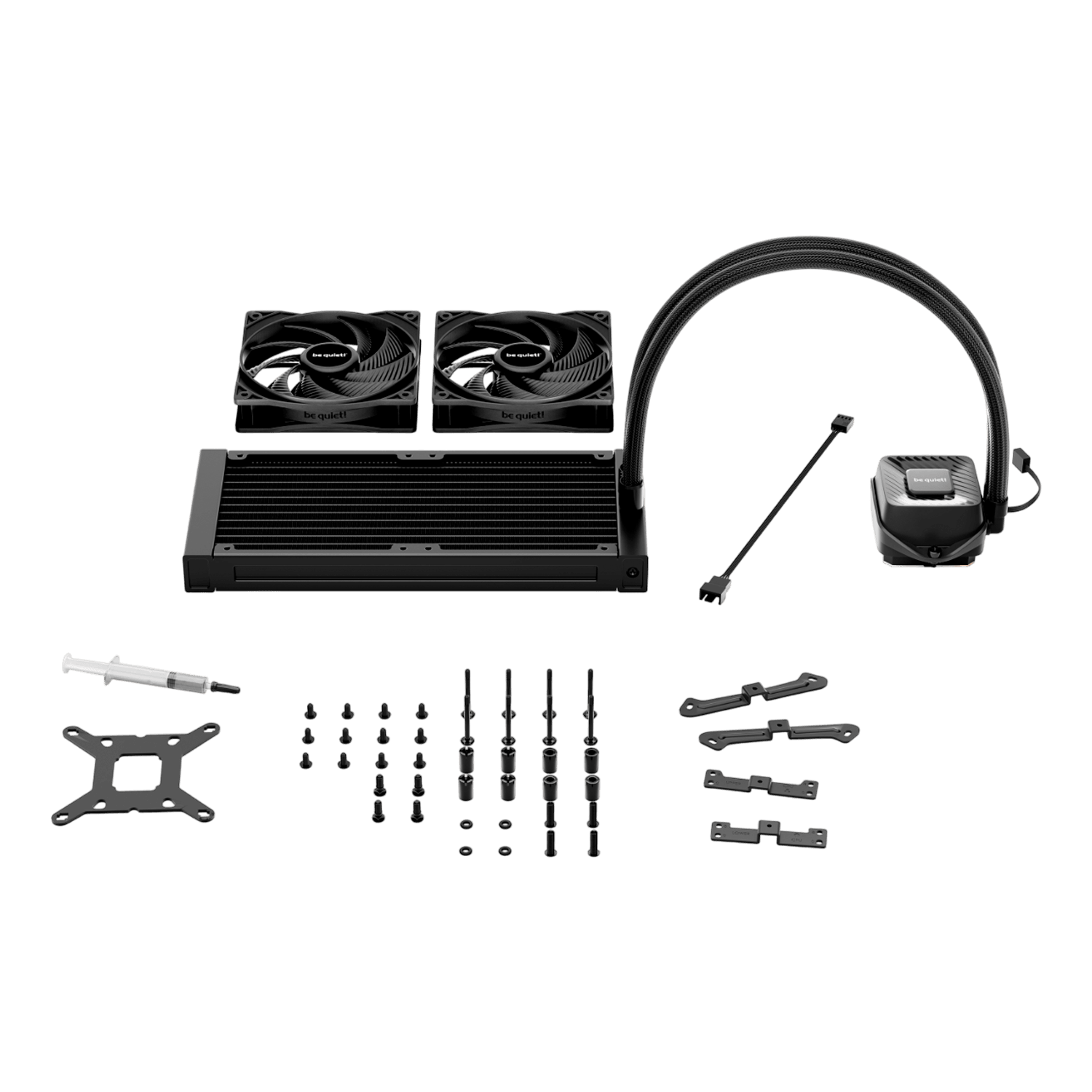

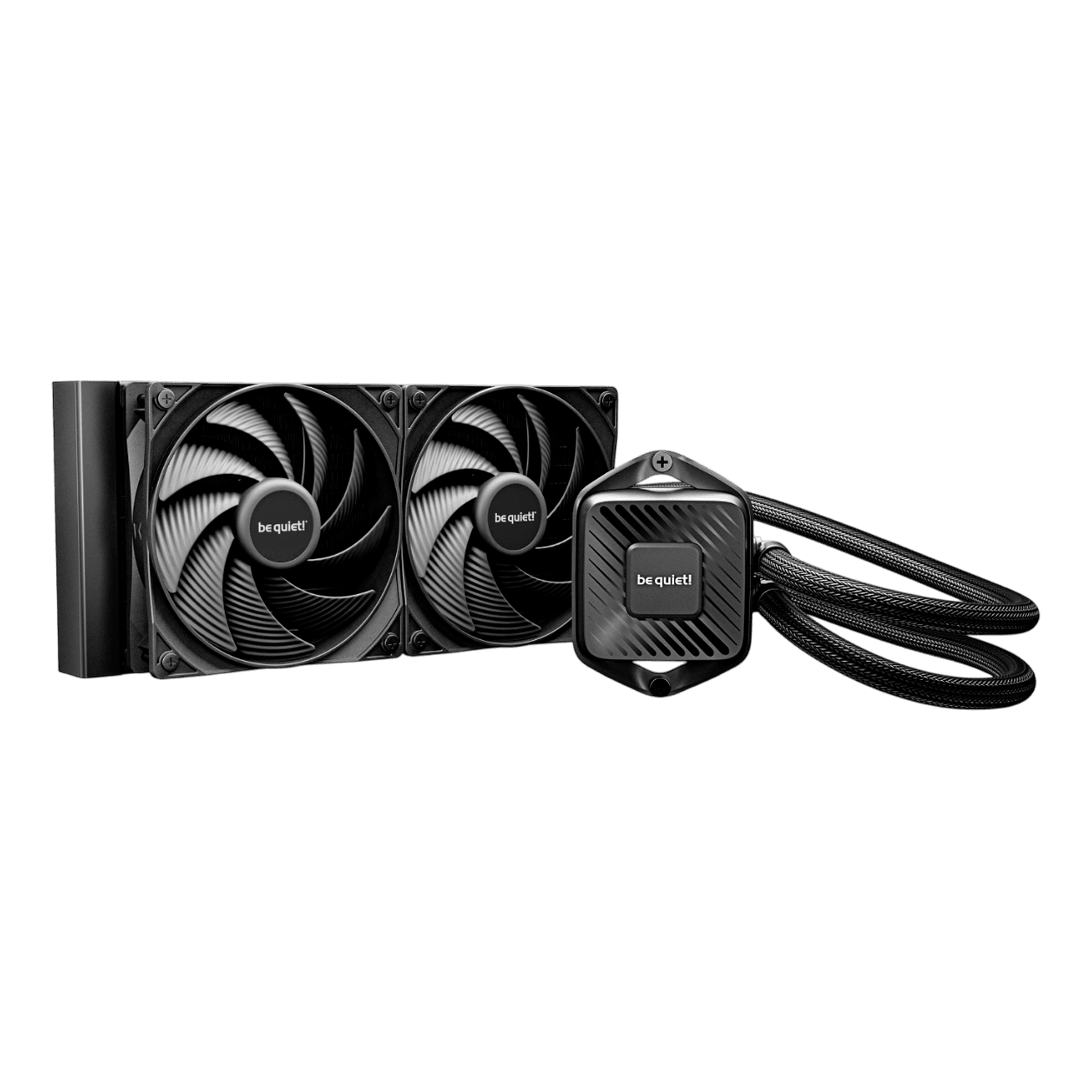

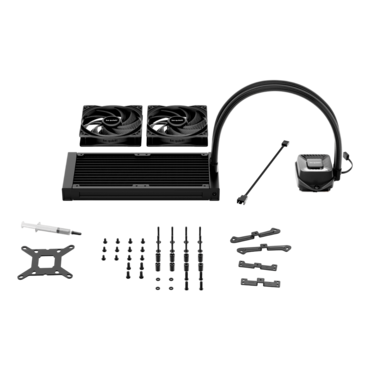

Pure Loop 3, 240mm Radiator, Liquid Cooling System
- SKU: 19375334
- Manufacturer: be quiet!
- MPN: BW027US
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$92.69
| General data | |
| Model | Pure Loop 3 | 240mm |
| Color option | - |
| Dimensions radiator, incl. fan (H x W x D), (mm) | 277 x 120 x 52 |
| Dimensions cooling block (H x W x D), (mm) | 68.5 x 93.4 x 44.9 |
| Total weight (kg) | 1.020 |
| Socket compatibility Intel | 1851 / 1700 / 1200 / 1151 / 1150 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Noise level (dB(A)) at 50% / 75% /100% rpm | 15.4 / 27.3 / 35.2 |
| Number of fans | 2 |
| Lighting connector | - |
| Tube length (mm) | 400 |
| Refill port | ✓ |
| Pump specifications | |
| Pump speed (rpm) | 5500 |
| Pump adjustable (rpm) | 3000 - 5500 |
| Pump connector | 4-pin PWM |

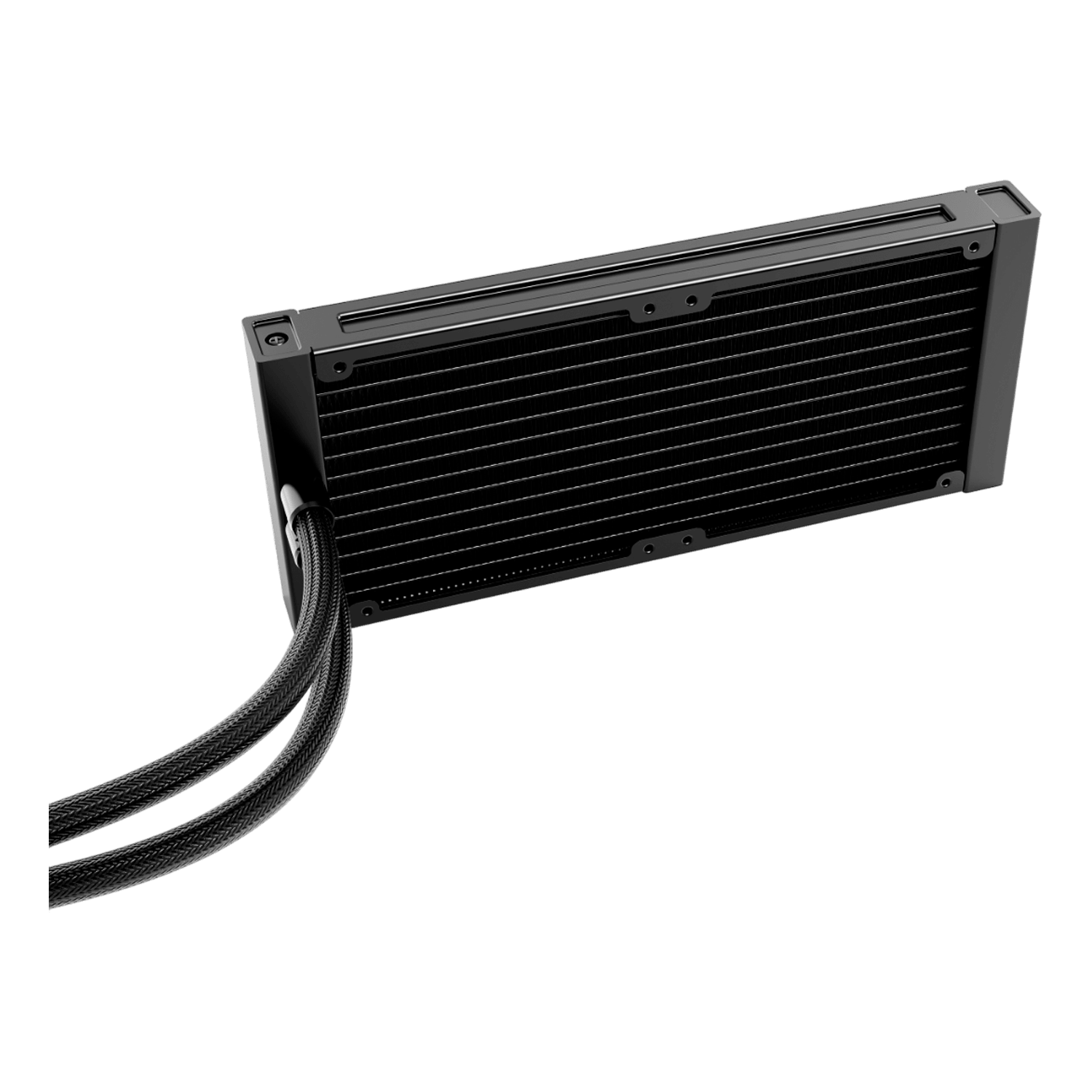

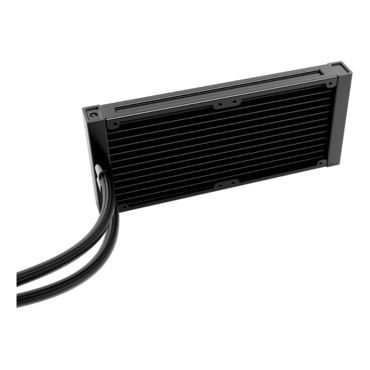

| Radiator specifications | |
| Dimensions (L x W x H), (mm) | 277 x 120 x 27 |
| Radiator material / finish | Aluminum |
| Base material / finish | copper |
| Fan specifications | |
| Fan model | Pure Wings 3 120mm PWM high-speed |
| Fan dimensions (mm) | 120 x 25 x 120 |
| Speed at 100% PWM (rpm) | 2100 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 59.6 / 101.2 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.41 |
| Bearing technology | Rifle |
| Motor technology | 4-pole |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.13 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Connector | 4-pin PWM |
| Cable length (mm) | 30 / 90mm + daisy chain |
| Lifespan (h / 25°C) | 80,000 |
