| General data |
| Model |
Pure Loop 3 | 360mm |
| Color option |
- |
| Dimensions radiator, incl. fan (H x W x D), (mm) |
397 x 120 x 52 |
| Dimensions cooling block (H x W x D), (mm) |
68.5 x 93.4 x 44.9 |
| Total weight (kg) |
1.250 |
| Socket compatibility Intel |
1851 / 1700 / 1200 / 1151 / 1150 / 1155 |
| Socket compatibility AMD |
AM5 / AM4 |
| Noise level (dB(A)) at 50% / 75% /100% rpm |
17.6 / 29.3 / 37.2 |
| Number of fans |
3 |
| Lighting connector |
- |
| Tube length (mm) |
400 |
| Refill port |
✓ |
| Pump specifications |
| Pump speed (rpm) |
5500 |
| Pump adjustable (rpm) |
3000 - 5500 |
| Pump connector |
4-pin PWM |

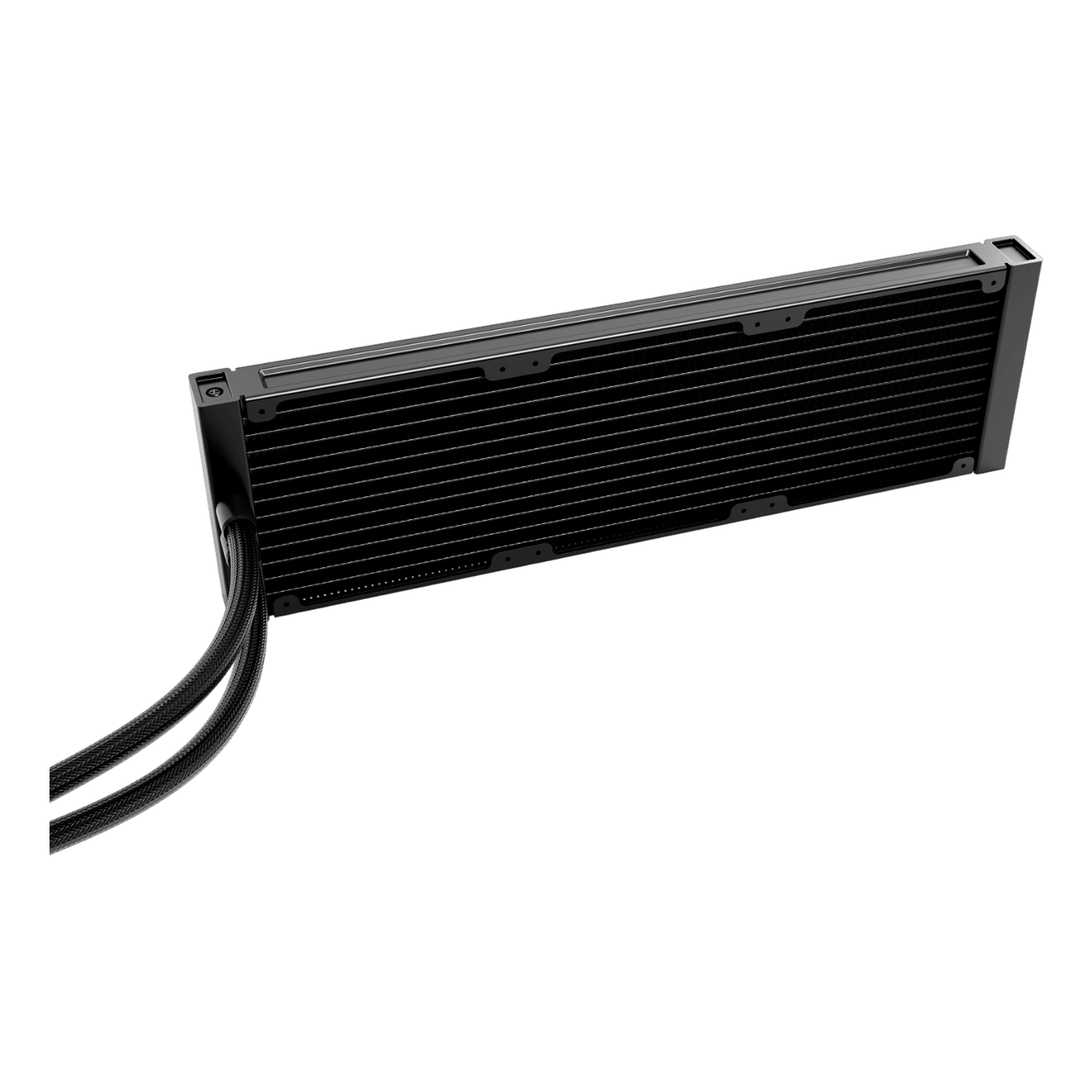

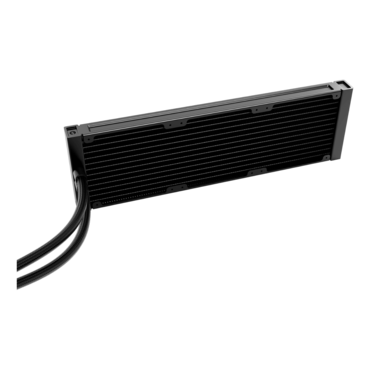

| Radiator specifications |
| Dimensions (L x W x H), (mm) |
397 x 120 x 27 |
| Radiator material / finish |
Aluminum |
| Base material / finish |
copper |
| Fan specifications |
| Fan model |
Pure Wings 3 120mm PWM high-speed |
| Fan dimensions (mm) |
120 x 25 x 120 |
| Speed at 100% PWM (rpm) |
2100 |
| Airflow at 100% PWM / 12V (CFM / m3/h) |
59.6 / 101.2 |
| Air Pressure at 100% PWM / 12V (mm H2O) |
2.41 |
| Bearing technology |
Rifle |
| Motor technology |
4-pole |
| Rated Voltage (V) |
12 |
| Input current (A) |
0.13 |
| Safety current (A) |
0.45 |
| Input power (W) |
5.4 |
| Connector |
4-pin PWM |
| Cable length (mm) |
30 / 90mm + daisy chain |
| Lifespan (h / 25°C) |
80,000 |
