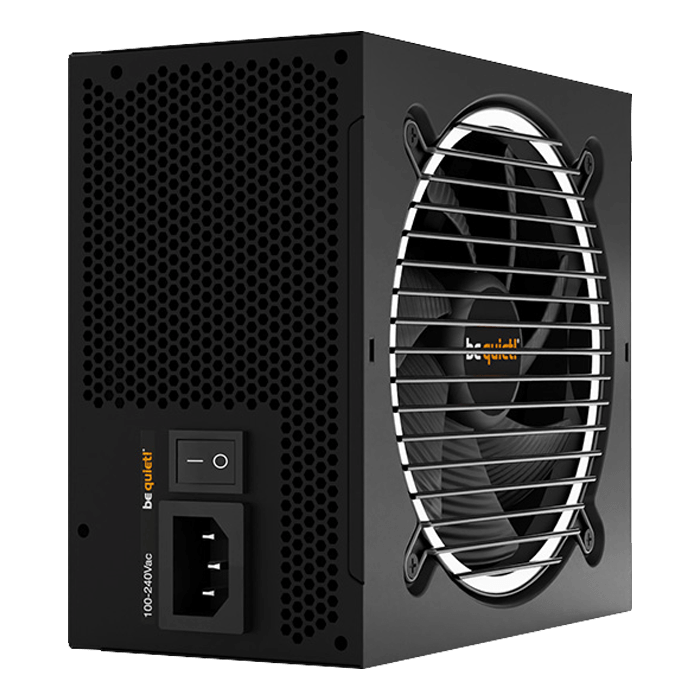

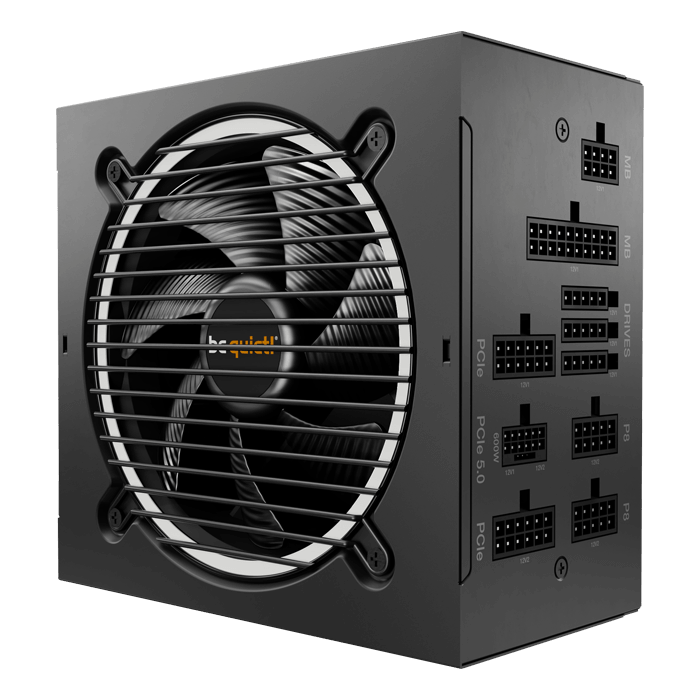

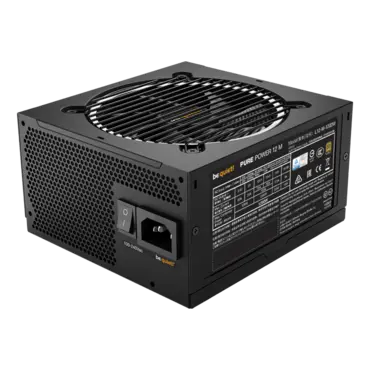

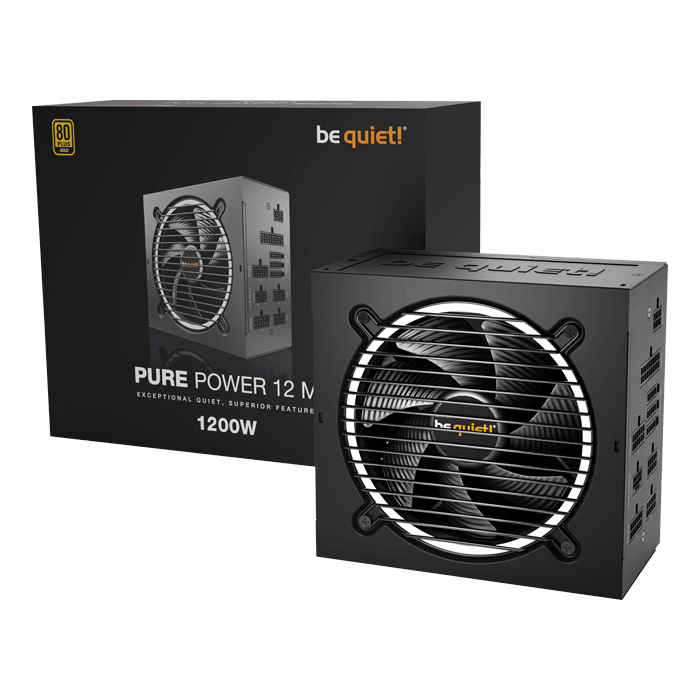

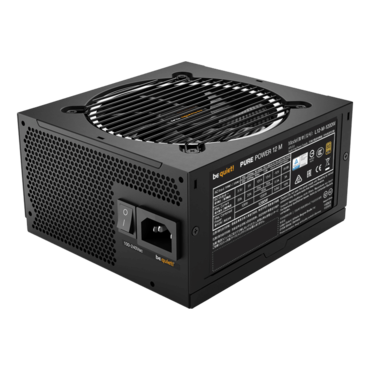

Pure Power 12 M, 80 PLUS Gold 1200W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 16426778
  • Manufacturer: be quiet!
  • MPN: BN513
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$199.90
Quantity:
Pure Power 12 M, 80 PLUS Gold 1200W, Fully Modular, ATX Power Supply

Very high operating efficiency

Pure Power 12 M 1200W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1200W is always the correct choice for quiet systems and gaming PCs!

  • 80 PLUS® Gold efficiency (up to 93.7%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent 120mm be quiet! fan
  • Advanced stability and voltage regulation thanks to LLC technology
  • 2 strong 12V-rails
  • Modular cables for maximum build flexibility
  • One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for
    overclocked high-end GPUs
  • 10-year manufacturer’s warranty
General data
Model Pure Power 12 M 1200W
Continuous power (W) 1200
Peak power (W) 1050
Form factor Version 3.0
Form factor EPS 12V Version 2.92
Topology LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 15 / 7.5
Power factor at 100% load >0.98
Modern standby
Power consumption in standby (W) <0.12
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40
Efficiency
80 PLUS certification Gold
Efficiency (%) at 230V, 2% load 72.9
Efficiency (%) at 230V, 10% load 89
Efficiency (%) at 230V, 20% load 92.7
Efficiency (%) at 230V, 50% load 93.7
Efficiency (%) at 230V, 100% load 91.5
Fan and cooling technology
Fan Silence-optimized be quiet! fan
Fan size (mm) 120
Bearing technology Rifle
Motor technology 4-pole fan motor
Max. fan speed (rpm) 2700
dB(A) at 10% load 10.1
dB(A) at 20% load 10.6
dB(A) at 50% load 10.7
dB(A) at 100% load 34.3
Output
Multi-rail operation (12V rails) 2
12V single rail operation -
Overclocking key -
+3.3V (A) 22
+5V (A) 22
+12V1 (A) 46
+12V2 (A) 42
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 1200
Max. combined power 12VHPWR (W) 600
Max. combined power 3.3V + 5V (W) 120
Hold-up time at 100% load (ms) 19
Power good signal (ms) 100 - 150
Cables and connectors
Modular cables
Sleeved cables P24, 12VHPWR
Flat cables P4+4, P8, PCIe, drives
Maximum cable length (cm) 95
Cable length to motherboard (cm) 55
No. of cables 8
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12VHPWR cable 1
PCI-e 6+2-pin (GPU) 4
PCI-e 6-pin (GPU) -
SATA 6
PATA 2
FDD (Floppy) -
Protection
OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush Protection)
Safety certification
BSMI
CB
CCC
CE
cRUus -
cTUVus
CU
FCC
RCM
TÜV
UKCA
Environmental directives
Energy Star 8.0
ErP
WEEE
RoHs
Triman
Scope of delivery
Thumb screws -
Screws
Cable ties
Velcro cable ties -
User manual languages DE, EN, ES, FR, PL, RU, TW
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -
Casing
Dimensions without cable (L x W x H), (mm) 160 x 150 x 86
Weight (kg) 1.92
Color Black
Service
Warranty (Years) 10
Express replacement service in first year -
International hotline / free of charge √ / DE, FR
Logistics data and RRP
Article number BN513
EAN code 4260052190173
Dimensions, package (L x W x H), (mm) 284 x 220 x 100
Gross weight, package (kg) 3.19
