| General data |
| Model |

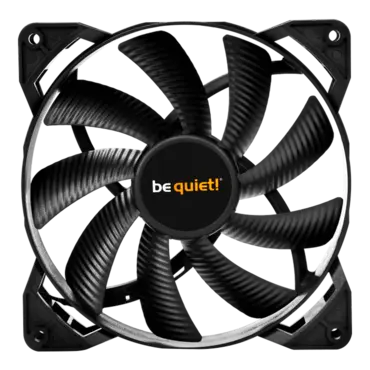

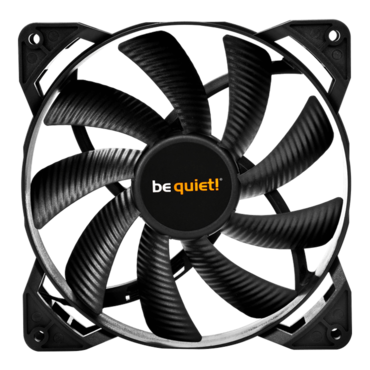

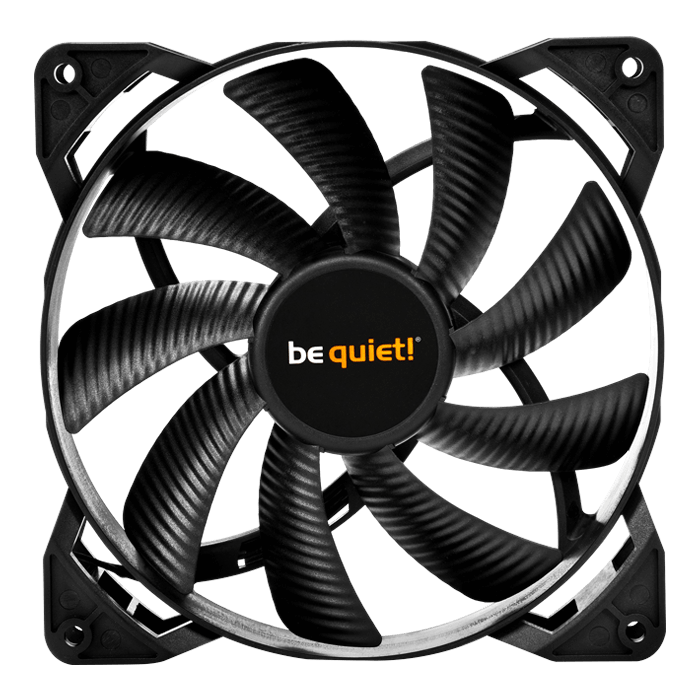

Pure Wings 2 140mm |
| Dimensions (mm) |
140 |
| + SilentWings |
- |
| Fan speed @ 100% PWM / 12V (rpm) |
1000 |
| Air Flow @ 100% PWM / 12V ( CFM / m3 / h ) |
61.2 / 104 |
| Air Pressure @ 100% PWM / 12V ( mm H2O ) |
0.76 |
| Noise level @ 100% PWM / 12V ( dB (A) ) |
18.8 |
| Color option |
Black |
| Mechanical specifications |
| Dimensions (L x W x H), (mm) |
140 x 140 x 25 |
| Bearing technology |
Rifle |
| Motor technology |
4-pole fan motor |
| Weight including fixed cables (kg) |
0.158 |
| Push pin fixing |
- |
| Screw fixing |
✓ |
| Cables / connectors |
| Connector |
3-pin |
| Cable length (mm) |
460 |
| Cable sleeve |
- |
| Performance / noise |
| Air Flow @ 100% PWM / 12V ( CFM / m3 / h ) |
61.2 / 104 |
| Air Pressure @ 100% PWM / 12V ( mm H2O ) |
0.76 |
| Noise level @ 100% PWM / 12V ( dB (A) ) |
18.8 |
| Lifespan (h / 25 ° C) |
80,000 |
| Electrical specifications |
| Rated Voltage DC (V) |
12th |
| Operating voltage DC (V) |
5 - 12 |
| Current consumption (A) |
0.30 |
| Safety current (A) |
0.30 |
| Input power (W) |
3.6 |
| Accessories |
| 3-pin to 4-pin 12V connector |
- |
| 12V to 7V adapter |
- |
| 12V to 5V adapter |
- |
| Screws |
4th |
| Push pins |
- |
| Silica gel washer |
- |
| Others |
- |
| Safety certification |
| Approvals |
CE / TUV / UL |
| Service |
| Warranty (Years) |
3 |
| International hotline / free of charge |
✓ / DE, FR |
| Logistics data, RRP |
| Article number |
BL047 |
| EAN Code |
4260052183366 |
| Dimensions, package (L x W x H), (mm) |
175 x 140 x 28 |
| Gross weight, package (kg) |
0.194 |
| Pieces per packaging unit |
72 |
| Dimensions, shipping box (L x W x H), (mm) |
460 x 380 x 340 |
| Gross weight, shipping box (kg) |
15th |
