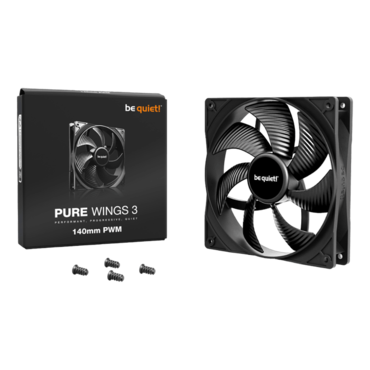

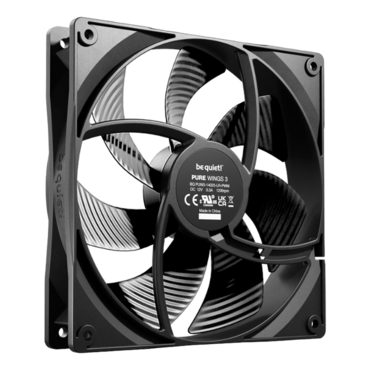

Pure Wings 3 140mm PWM, 1200 RPM, 57.4 CFM, 21.9 dBA, Cooling Fan

Quantity:
  • SKU: 17122019
  • Manufacturer: be quiet!
  • MPN: BL108
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$11.90
Quantity:
Pure Wings 3 140mm PWM, 1200 RPM, 57.4 CFM, 21.9 dBA, Cooling Fan

Performant, Progressive, Quiet

With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system.

  • Optimized fan frame for outstanding performance on radiators
  • Newly designed fan blades and re-arranged angle for extraordinary air pressure
  • Pure Wings 3 140mm PWM can be operated with very low minimum rpm for very quiet operation
  • Long life rifle bearing gives an operating lifetime of 80,000 hours
  • Product conception, design and quality control in Germany
General data
Model Pure Wings 3 140mm PWM
Dimensions (mm) 140
Color option Black
Lighting -
Fan speed @ 100% PWM / 12V (rpm) 1200
Noise level @ 100% PWM / 12V (dB(A)) 21.9
Air Flow @ 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure @ 100% PWM / 12V (mm H2O) 0.96
Mechanical specifications
Dimensions (L x W x H), (mm) 140 x 140 x 25
Weight incl. fixed cables (g) 180
Bearing technology Rifle
Motor technology 4-pole fan motor
Push pin fixing -
Screw fixing
Cables / Connectors
Daisy-chain compatible -
Lighting connector -
Connector 4-pin PWM
Cable length (mm) 460
Cable sleeve -
Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure @ 100% PWM / 12V (mm H2O) 0.96
Noise level @ 100% PWM / 12V (dB(A)) 21.9
Lifespan (h / 25°C) 80,000
Electrical specifications
Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 - 13.2
Current consumption (A) 0.06
Safety current (A) 0.30
Input power (W) 3.6
Rated Current LED (A) -
Accessories
3-pin to 4-pin 12V-connector -
12V to 7V adapter -
12V to 5V adapter -
Screws 4
Push pins -
hard plastic washer -
Others -
Safety certification
Approvals CE / RoHS / RU / UKCA / WEEE
Environmental directives
RoHS
WEEE
Triman
Service
Warranty (Years) 3
International hotline / free of charge √ / DE, FR
Logistics data and RRP
Article number BL108
EAN code 4260052190807
Dimensions, package (L x W x H), (mm) 174 x 142 x 27
Gross weight, package (kg) 0.213
