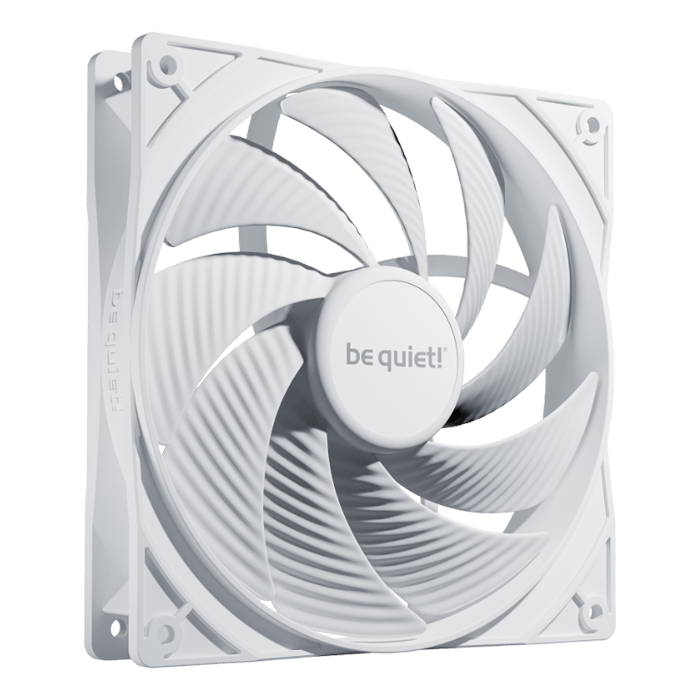

Pure Wings 3 140mm PWM high-speed White, 1800 RPM, 72.2 CFM, 30.5 dBA, Cooling Fan
Quantity:
- SKU: 17491018
- Manufacturer: be quiet!
- MPN: BL113
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$12.90
Pure Wings 3 140mm PWM high-speed White, 1800 RPM, 72.2 CFM, 30.5 dBA, Cooling Fan
Performant, Progressive, Quiet
Pure Wings 3 140mm PWM high-speed White are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.
- Innovative closed loop motor keeps the rpm no matter the air resistance
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 140mm PWM high-speed White can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
| General data | |
| Model | Pure Wings 3 140mm PWM high-speed White |
| Dimensions (mm) | 140 |
| Color option | White |
| Lighting | - |
| Fan speed @ 100% PWM / 12V (rpm) | 1800 |
| Noise level @ 100% PWM / 12V (dB(A)) | 30.5 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 72.2 / 122.6 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 2.44 |
| Infographics | |
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
| Weight incl. fixed cables (g) | 188 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | √ |
| Cables / Connectors | |
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | - |
| Performance / Noise | |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 72.2 / 122.6 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 2.44 |
| Noise level @ 100% PWM / 12V (dB(A)) | 30.5 |
| Lifespan (h / 25°C) | 80,000 |
| Electrical specifications | |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.50 |
| Input power (W) | 6 |
| Rated Current LED (A) | - |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |

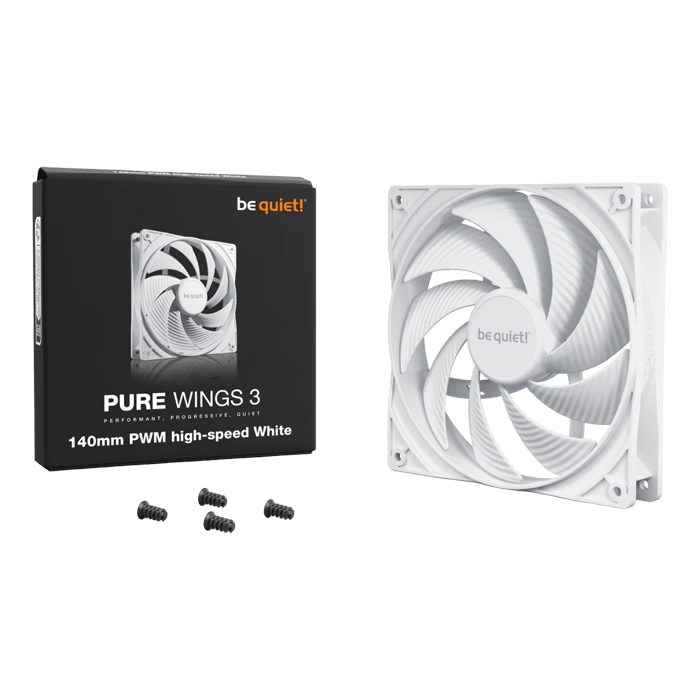

| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
| Safety certification | |
| Approvals | CE / RoHS / RU / UKCA / WEEE |
| Environmental directives | |
| RoHS | √ |
| WEEE | √ |
| Triman | √ |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | √ / DE, FR |
| Logistics data and RRP | |
| Article number | BL113 |
| EAN code | 4260052191002 |
| Dimensions, package (L x W x H), (mm) | 174 x 142 x 27 |
| Gross weight, package (kg) | 0.22 |
