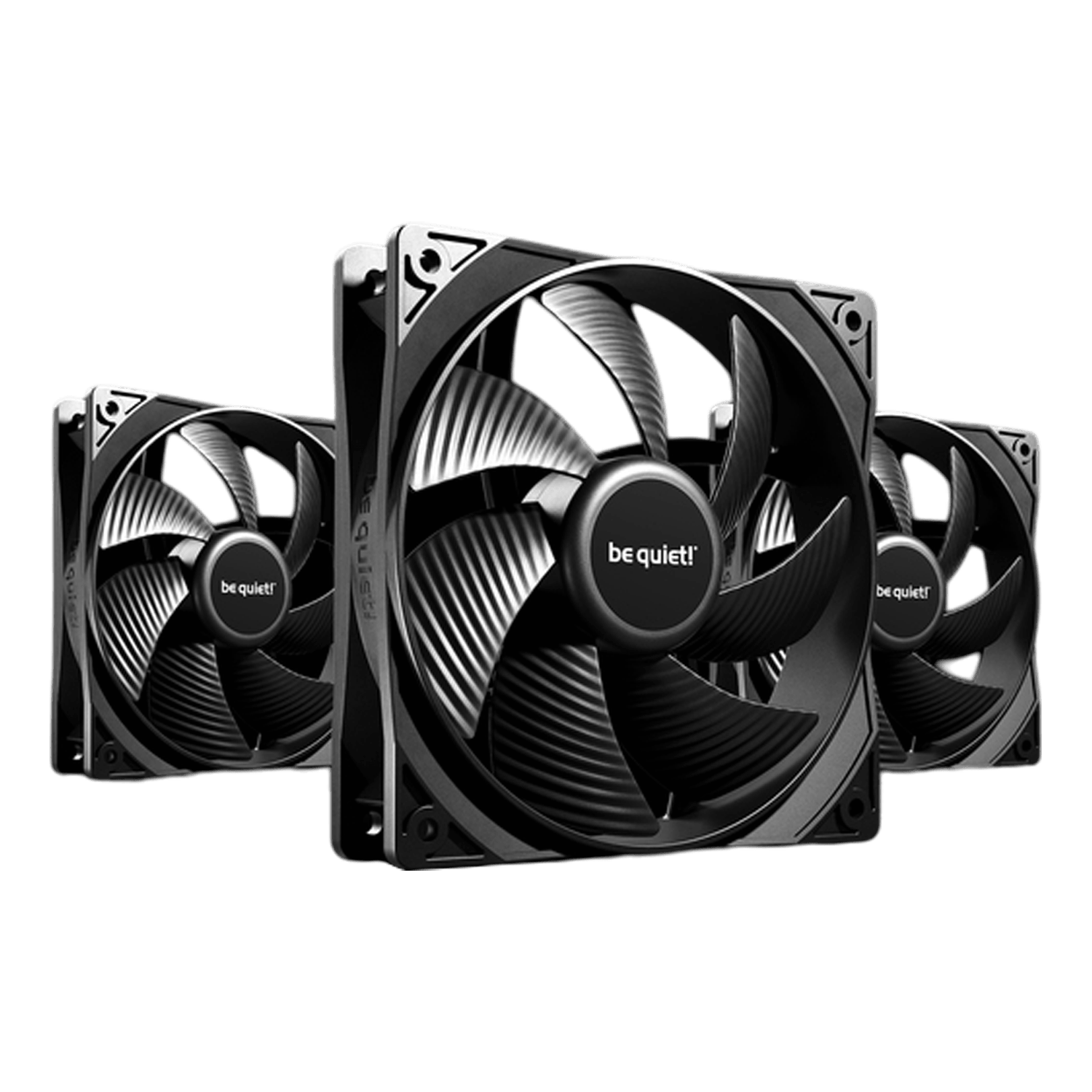

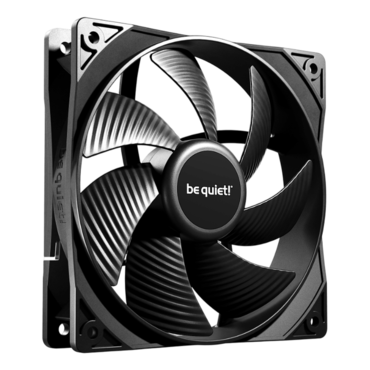

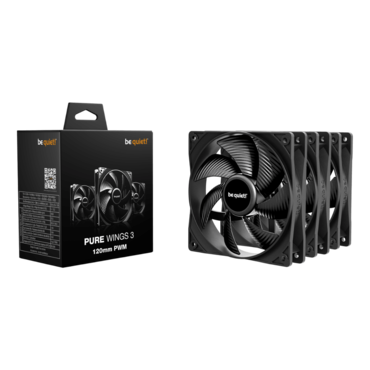

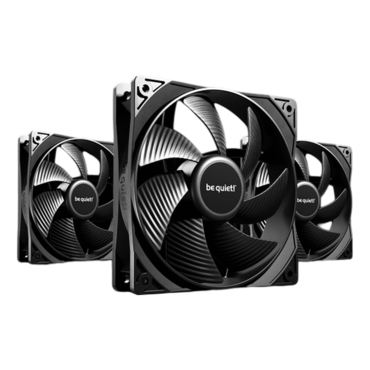

Pure Wings 3 3 x 120mm, 1600 RPM, 49.9 CFM, 25.5 dBA, Cooling Fans
- SKU: 19600837
- Manufacturer: be quiet!
- MPN: BL141
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$34.90
Pure Wings 3 3 x 120mm, 1600 RPM, 49.9 CFM, 25.5 dBA, Cooling Fans
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM Triple Pack. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM Triple Pack.
- 3 fans included
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
| General data | |
| Model | Pure Wings 3 120mm | PWM Triple Pack |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1600 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 148 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | √ |
| Cables / Connectors | |
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | - |
| Performance / Noise | |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | - |
| Electrical specifications | |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.2 |
| Input power (W) | 2.4 |
| Rated Current LED (A) | - |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | √ |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
| Safety certification | |
| Approvals | CE / RoHS / RU / UKCA / WEEE |
| Environmental directives | |
| RoHS | √ |
| WEEE | √ |
| Triman | √ |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | √ / DE, FR |
| Logistics data and RRP | |
| Article number | BL141 |
| EAN code | 4260052193877 |
| Dimensions, package (L x W x H), (mm) | 132 x 80 x 122 |
| Gross weight, package (kg) | 0.506 |
