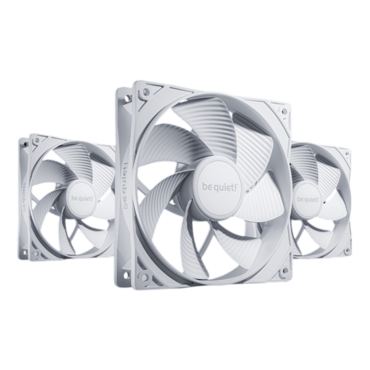

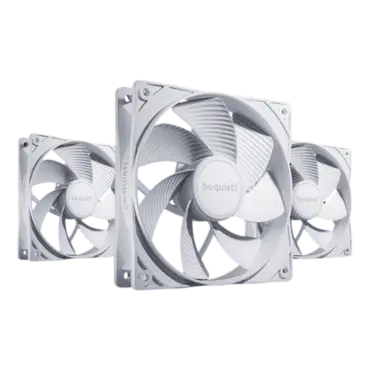

Pure Wings 3 Reverse 3 x 120mm, White, 1500 RPM, 47.1 CFM, 28 dBA, Cooling Fans
- SKU: 19583764
- Manufacturer: be quiet!
- MPN: BL136
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$34.90
Pure Wings 3 Reverse 3 x 120mm, White, 1500 RPM, 47.1 CFM, 28 dBA, Cooling Fans
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 120mm PWM Reverse White Triple Pack is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 120mm PWM Reverse White Triple Pack provides the performance that is needed, even in demanding configurations.
- 3 fans included
- 7 optimized and reversed fan blades with perfect angle for extraordinary air pressure
- Reversed fan blades are ideal as side or bottom intake
- Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
- Product conception, design and quality control in Germany
| General data | |
| Model | Pure Wings 3 120mm | PWM Reverse White Triple-Pack |
| Dimensions (mm) | 120 |
| Color option | White |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1500 |
| Noise level at 100% PWM / 12V ( dB(A) ) | 28.5 |
| Airflow at 100% PWM / 12V ( CFM / m3/h ) | 47.1 / 80.0 |
| Air Pressure at 100% PWM / 12V ( mm H2O ) | 1.17 |
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 142 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | √ |
| Cables / Connectors | |
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
| Performance / Noise | |
| Airflow at 100% PWM / 12V ( CFM / m3/h ) | 47.1 / 80.0 |
| Air Pressure at 100% PWM / 12V ( mm H2O ) | 1.17 |
| Noise level at 100% PWM / 12V ( dB(A) ) | 28.5 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | - |
| Electrical specifications | |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.07 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.84 |
| Rated Current LED (A) | - |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | - |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
| Safety certification | |
| Approvals | CE / RoHS / RU / UKCA / WEEE |
| Environmental directives | |
| RoHS | √ |
| WEEE | √ |
| Triman | √ |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | √ / DE, FR, US |
| Logistics data and RRP | |
| Article number | BL136 |
| EAN code | 4260052193822 |
| Dimensions, package (L x W x H), (mm) | 132 x 80 x 122 |
| Gross weight, package (kg) | 0.506 |
